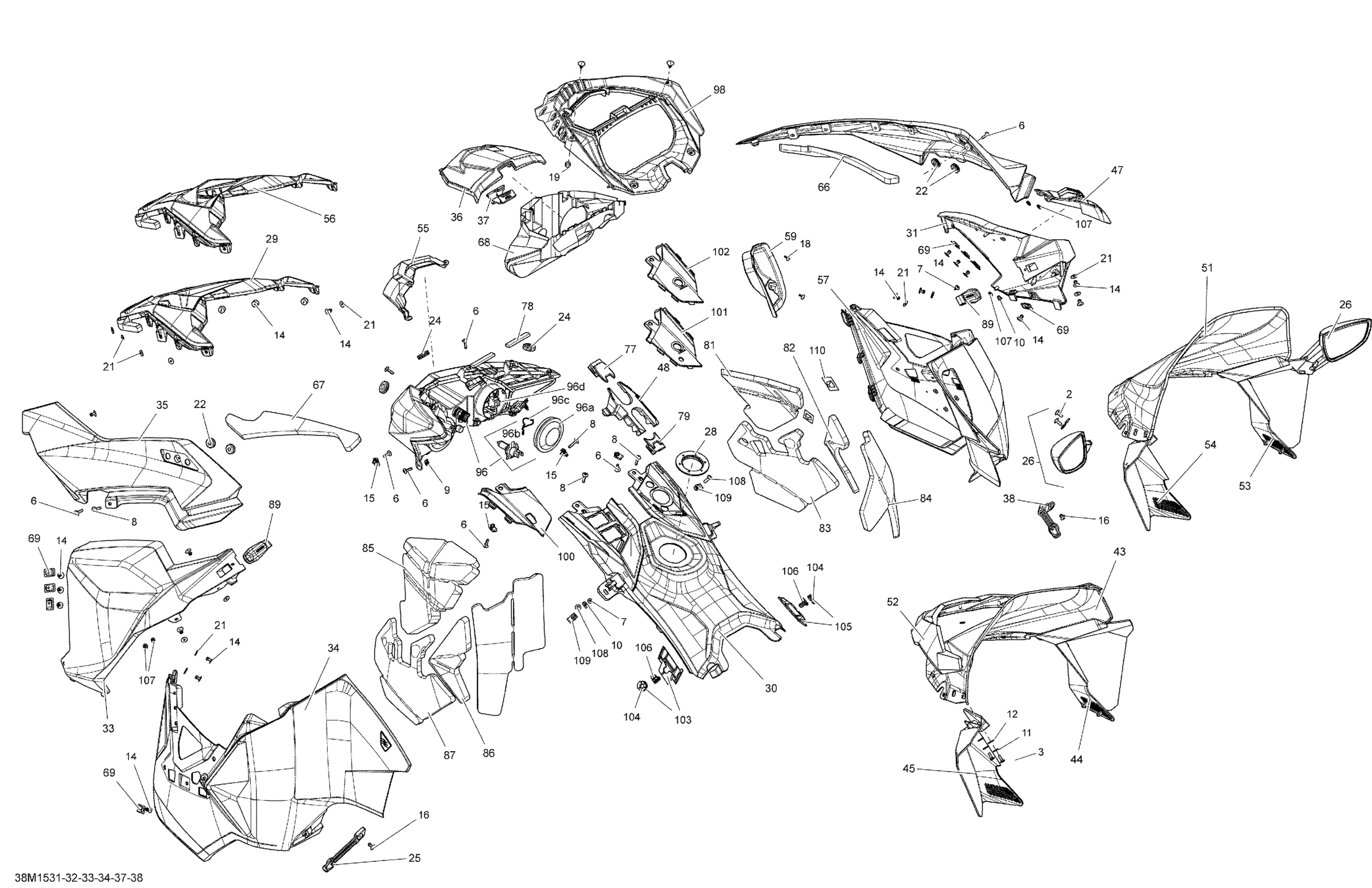

Ski-Doo Renegade Sport 600ACE XS137, 2015 09- Hood _38M1532 Diagram

#

Description
Price

2

Not Available As Spare Parts

XXX

Unavailable

3

Torx Screw K50 X 16

250000720

$1.69

6

Torx Screw M5 X 20

250000528

$2.11

7

Hexalob Screw M4 X 10

250000565

$2.11

8

Torx Screw M5 X 26

250000587

$4.44

9

Jack Nut M5

250100035

$6.99

10

Weld Nut M4

250100156

$4.34

11

Rubber Washer 5 mm

250200024

$2.19

12

Washer M5

250200025

$0.74

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

15

Panel Nut M5 X 0.8

250000958

$4.23

16

Pop Rivet 3/16”

293150108

$1.19

18

Screw M4 X 16

250000725

$3.49

19

Not Available As Spare Parts

XXX

Unavailable

21

Washer

517124300

$0.19

22

Grommet

517302841

$7.89

24

Grommet

517303756

$4.09

25

LH Panel Latch

517303808

$11.49

26

Not Available As Spare Parts

XXX

Unavailable

28

Console Nut

517304518

$15.29

29

Deep Black, Center Hood

517304796

$214.99

30

CATALYSTE GRAY REAR CONSOLE - Call your local BRP dealership

517305659

Unavailable

31

ORANGE RACE RH PANEL - Call your local BRP dealership

517305658

Unavailable

33

ORANGE RACE LH PANEL - Call your local BRP dealership

517305668

Unavailable

34

Orange Race LH Flashing Panel | Black-Black-Orange Model

517305666

$184.99

35

HOOD RH B-356 - Call your local BRP dealership

517305661

Unavailable

35

HOOD LH B-356 - Call your local BRP dealership

517305662

Unavailable

36

Deep Black, Upper Storage Access Cover

517304912

$18.49

37

Cover Latch

517304917

$12.99

38

RH Panel Latch

517304919

$16.49

43

Windshield 345mm

517304927

$164.99

44

RH Air Deflector, Black 63% Transm.

517304928

$32.99

45

LH Air Deflector, Black 63% Transm.

517304929

$40.99

47

Deep Black, RH Panel Vent Grid

517304935

$31.99

48

Deep Black, Console Support

517304970

$14.49

51

Not Available As Spare Parts

XXX

Unavailable

52

Windshield Support Long, Yellow 2000

860200944

$38.49

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Headlight Trim Cap

517305010

$37.99

56

Not Available As Spare Parts

XXX

Unavailable

57

PANEL_BODY LWR R B-370 - Call your local BRP dealership | Black-Black-Orange Model - Panel With Handle Opening

517305652

Unavailable

59

Deep Black RH Console

517305061

$28.99

66

RH Rear Hood Foam

517305090

$16.49

67

LH Rear Hood Foam

517305091

$16.49

68

Deep Black, Trunk

517305095

$21.99

69

Rivet Plate

517305109

$4.99

77

Deep Black, Support Console Cap

517305148

$4.99

78

Seal Joint

517305157

$2.39

79

Deep Black, Support Console Cap

517305180

$4.99

81

RH Foam Upper

517305196

$30.99

82

RH Foam Central

517305197

$16.49

83

RH Foam Lower

517305198

$28.99

84

RH Foam Rear

517305199

$21.99

85

LH Upper Panel Foam

517305200

$21.99

86

LH Center Panel Foam

517305201

$14.49

87

LH Lower Panel Foam

517305202

$21.99

88

LH Rear Panel Foam

517305203

$21.99

89

Panel Latch

517305279

$18.99

96

Headlamp

517306180

$249.99

96a

Cap

219400070

$18.49

96b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

96c

Holder Bracket

219800282

$5.89

96d

Spring

219800281

$3.49

98

Deep Black, Indicator Support

517305511

$60.99

100

Deep Black LH Front Console

517305513

$31.99

101

Not Available As Spare Parts

XXX

Unavailable

102

Deep Black, RH Front Console

517305549

$21.99

103

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

104

Ring

517305723

$3.49

105

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

106

Pin

517305734

$3.49

107

Push Nut

732610072

$2.19

107

Push Nut

250100158

$2.11

108

Torx Truss Screw M6 X 20

250000705

$2.11

109

Panel Nut M6 X 1.0

250100198

$2.11

110

Heat Shield | Europe

517305451

$2.29
