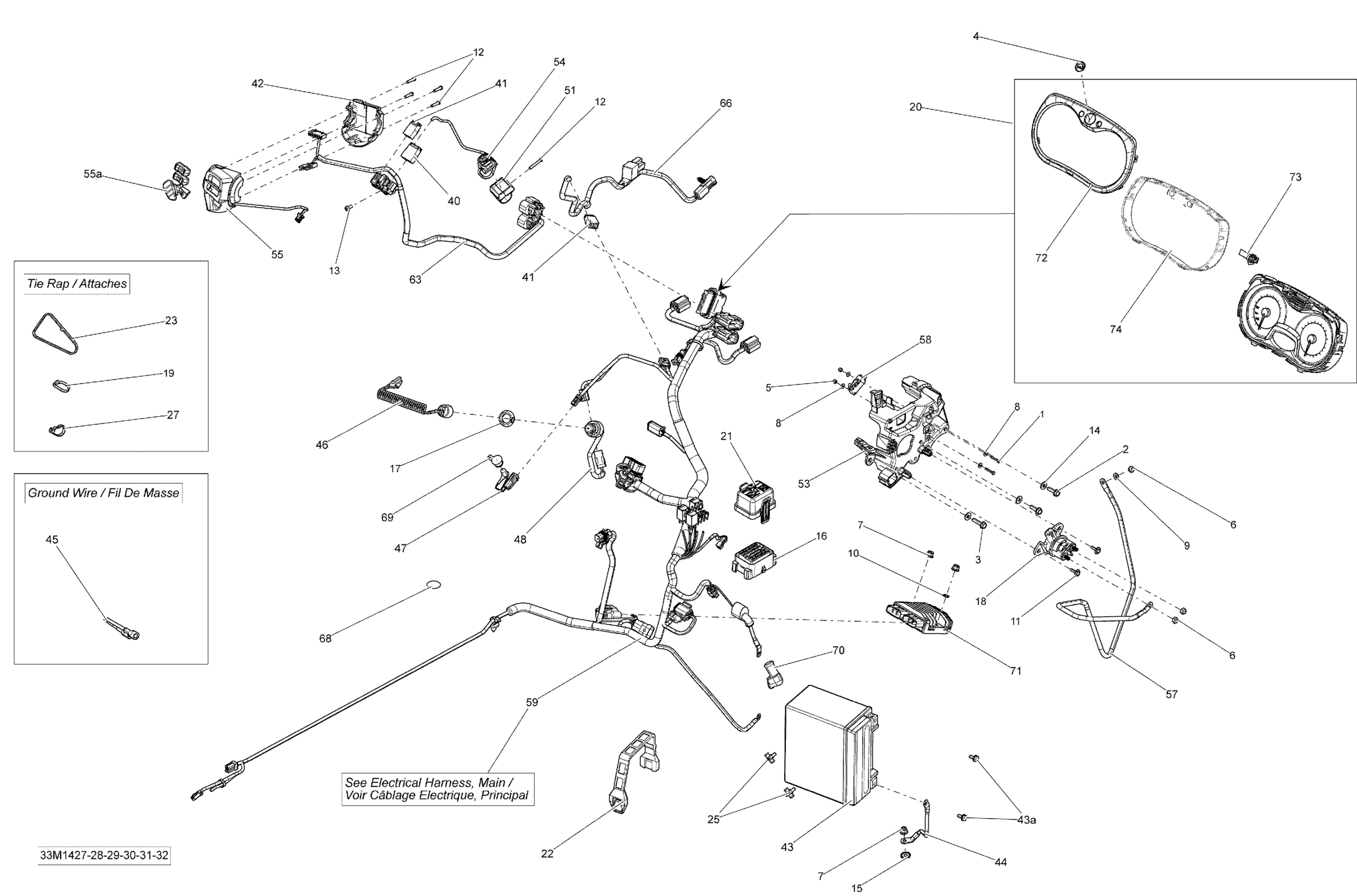

Ski-Doo RENEGADE SPORT 600ACE XP, 2014 Electrical System Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.06

2

Hex. Flange Screw M6 X 20

210262040

$2.06

3

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

4

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

5

Elastic Stop Nut M3

232531423

$0.54

6

Elastic Stop Nut M6

232561414

$1.55

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Flat Washer M3, Stainless

234032600

$0.54

9

Flat Washer 6 mm

234061410

$1.04

10

External Serrated Lock Washer 6 mm

234461608

$0.92

11

Screw M4 X 16

250000725

$2.87

12

Torx Screw #8-18

250000263

$1.02

13

Pan Screw Forming, 7500C

250000690

$2.06

14

Flat Washer

250200039

$0.72

15

Lock Washer Serrated M6

250200041

$0.92

16

Case Ass'y with seal, 24 positions

278002824

$29.22

17

Safety Nut (DESS Switch)

278002963

$2.72

18

Starter Relay

278003012

$35.07

19

Tie Wrap 142 mm

293750002

$0.88

20

Indicator

515177911

$514.58

21

Fuse Box Cover

515177671

$10.88

22

Strap

515176944

$9.65

23

Tie Wrap 368 mm

293750008

$0.85

25

Tie-Rap 173 mm

293750009

$0.85

27

Tie-Rap 180 mm

414115200

$0.09

40

Male Terminal Housing, 6 Circuits

515175662

$8.57

41

Male Terminal Housing, 4 Circuits

515175846

$8.57

42

Switch Housing Plate

515175926

$17.66

43

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

43a

Battery Bolt Kit

250000282

$2.95

44

Ground Wire

515176943

$15.35

45

Ground Wire

515177014

$15.35

46

DESS

515178284

$81.51

47

Not Available As Spare Parts

XXX

Unavailable

48

DESS Switch

515177249

$106.12

51

Emergency Stop Switch Support

515177310

$8.60

53

Plate

515177347

$13.82

54

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

55

LH Switch Housing | Includes 55a

515177414

$236.12

55a

Start/RER Button

515176088

$18.43

57

Battery Wire

515177427

$29.20

58

Switch Ass'y

515177460

$47.99

59

WIRING HARNESS MAIN - Call your local BRP dealership | 600 ACE

515177512

Unavailable

63

COMMODO HARNESS - Call your local BRP dealership

515177610

Unavailable

66

Not Available As Spare Parts

XXX

Unavailable

68

Adhesive Patch

518325560

$4.34

69

Not Available As Spare Parts

XXX

Unavailable

70

Protector Cap

710000495

$10.14

71

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

72

Gauge Ring

415129370

$10.66

73

Speedometer Button | XTP

415129355

$13.94

74

Lens | XTP

415129349

$23.05
