Description

Price

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Torx Screw M6 X 20

250000722

$1.68

9

Torx Screw K50 X 16

250000720

$1.69

10

Pop Rivet 3/16"

293150103

$0.55

11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

13

Pop Rivet 3/16"

390402300

$0.75

14

Black, Nylon Cap

414916600

$4.69

15

RH Foam Upper

502007210

$15.99

16

LH Foam Upper

502007211

$17.49

17

Black, RH Bottom Pan

502006831

$77.99

18

Deep Black LH Bottom Pan

502006832

$56.99

19

RH Middle Foam

502007212

$21.99

20

LH Middle Foam

502007213

$21.99

21

RH Lower Foam

502007214

$15.99

22

LH Lower Foam

502007215

$15.99

25

Gasket, Neoprene 2000Mm Long

219704476

$15.36

26

Black, Front Bottom Pan

502006971

$114.99

28

Deep Black Bottom Pan Cap

502007068

$70.99

29

Black Front Bumper

502007116

$78.49

31

Washer

517124300

$0.19

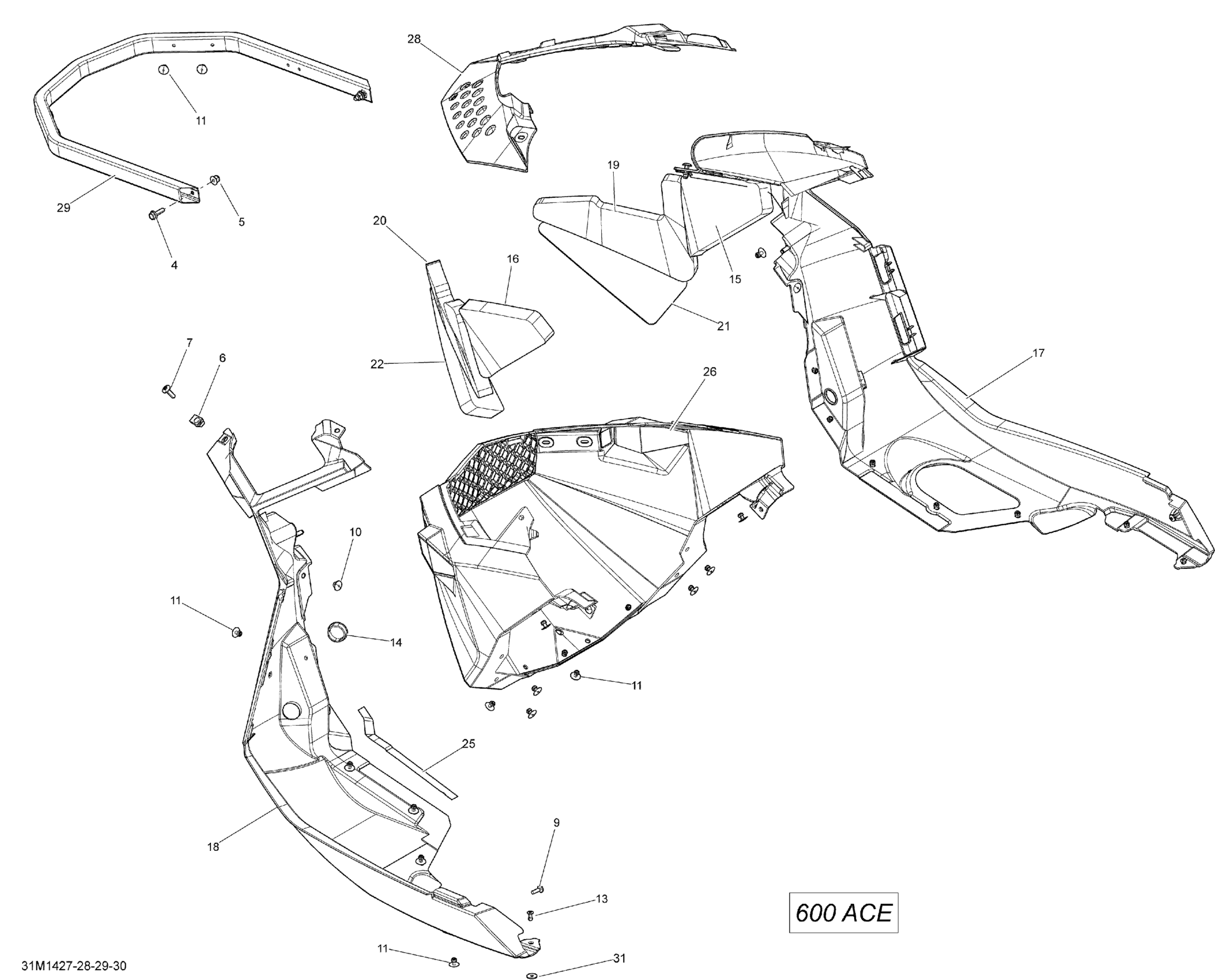

Ski-Doo RENEGADE SPORT 600ACE XP, 2014 09- Bottom Pan Diagram

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Torx Screw K50 X 16

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Pop Rivet 3/16"

Black, Nylon Cap

RH Foam Upper

LH Foam Upper

Black, RH Bottom Pan

Deep Black LH Bottom Pan

RH Middle Foam

LH Middle Foam

RH Lower Foam

LH Lower Foam

Gasket, Neoprene 2000Mm Long

Black, Front Bottom Pan

Deep Black Bottom Pan Cap

Black Front Bumper

Washer
