Description

Price

3

Socket Head Screw M4 X 40 | X

205444086

$1.69

4

Flat Washer

224060201

$1.26

5

Elastic Stop Nut M4

232541414

$0.58

6

Breather Valve

273000234

$14.49

7

Tridon Gear Clamp

293650172

$3.09

11

GEMI Clamp

293650212

$7.65

13

Velcro Strip

508000820

$8.59

18

Stopper

508000537

$7.79

23

Air Intake Filter

508000568

$28.49

24

Bumper

508000572

$7.51

25

Grommet

508000574

$8.59

27

Spring

508000576

$7.79

28

Cap

508000590

$18.49

30

Reflective Sheet

508000622

$10.99

33

Secondary Chamber Ass'y

508000625

$159.99

34

FORMED VENT HOSE - Call your local BRP dealership

508000647

Unavailable

35

Tube Isolator

508000648

$19.49

39

AIR INTAKE HOSE - Call your local BRP dealership

508000717

Unavailable

42

Caution Decal Hot Parts

516005280

Unavailable

43

Cap

572092900

$20.49

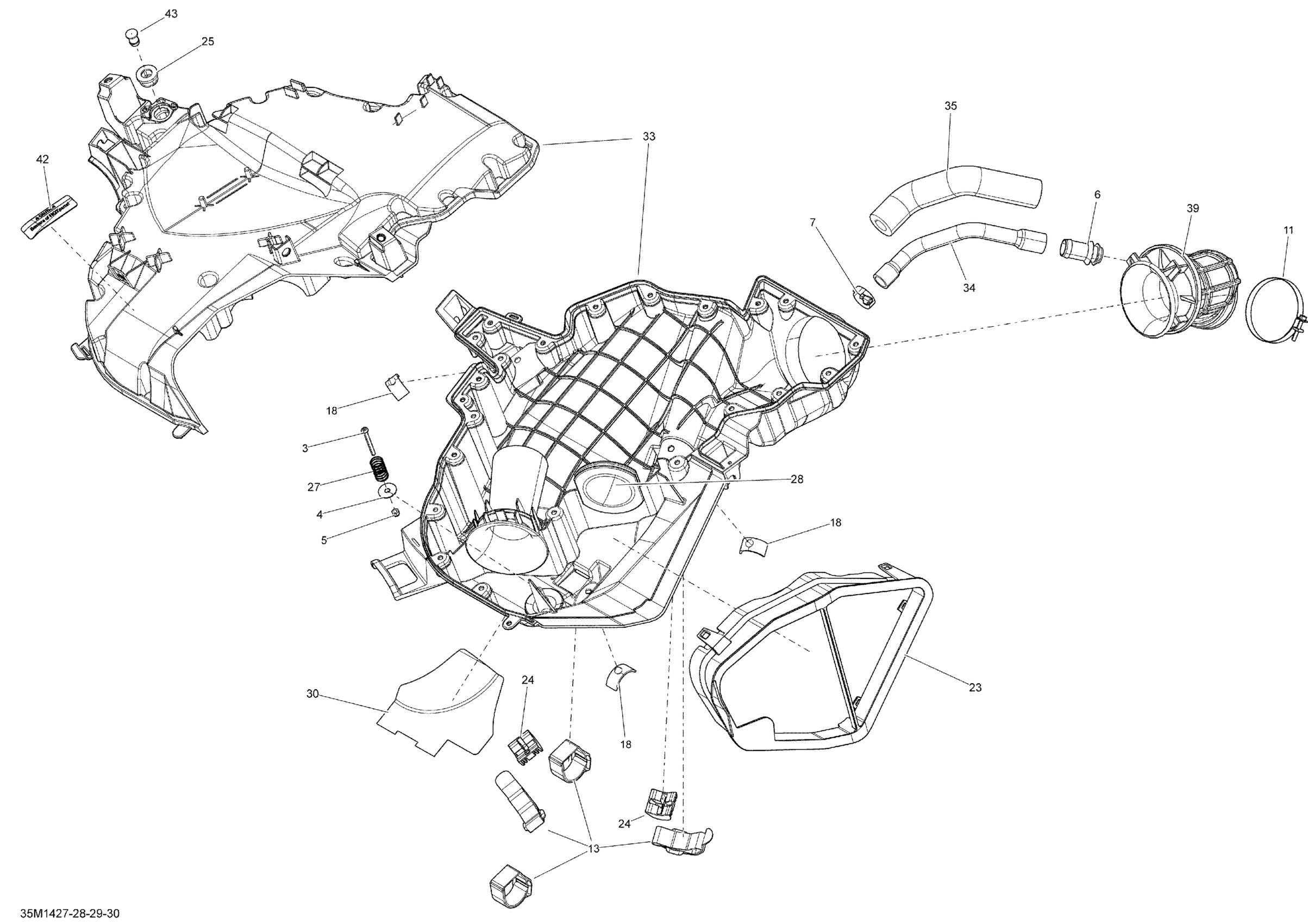

Ski-Doo RENEGADE SPORT 600ACE XP, 2014 02- Air Intake System Diagram

Socket Head Screw M4 X 40 | X

Flat Washer

Elastic Stop Nut M4

Breather Valve

Tridon Gear Clamp

GEMI Clamp

Velcro Strip

Stopper

Air Intake Filter

Bumper

Grommet

Spring

Cap

Reflective Sheet

Secondary Chamber Ass'y

FORMED VENT HOSE - Call your local BRP dealership

Tube Isolator

AIR INTAKE HOSE - Call your local BRP dealership

Caution Decal Hot Parts

Cap
