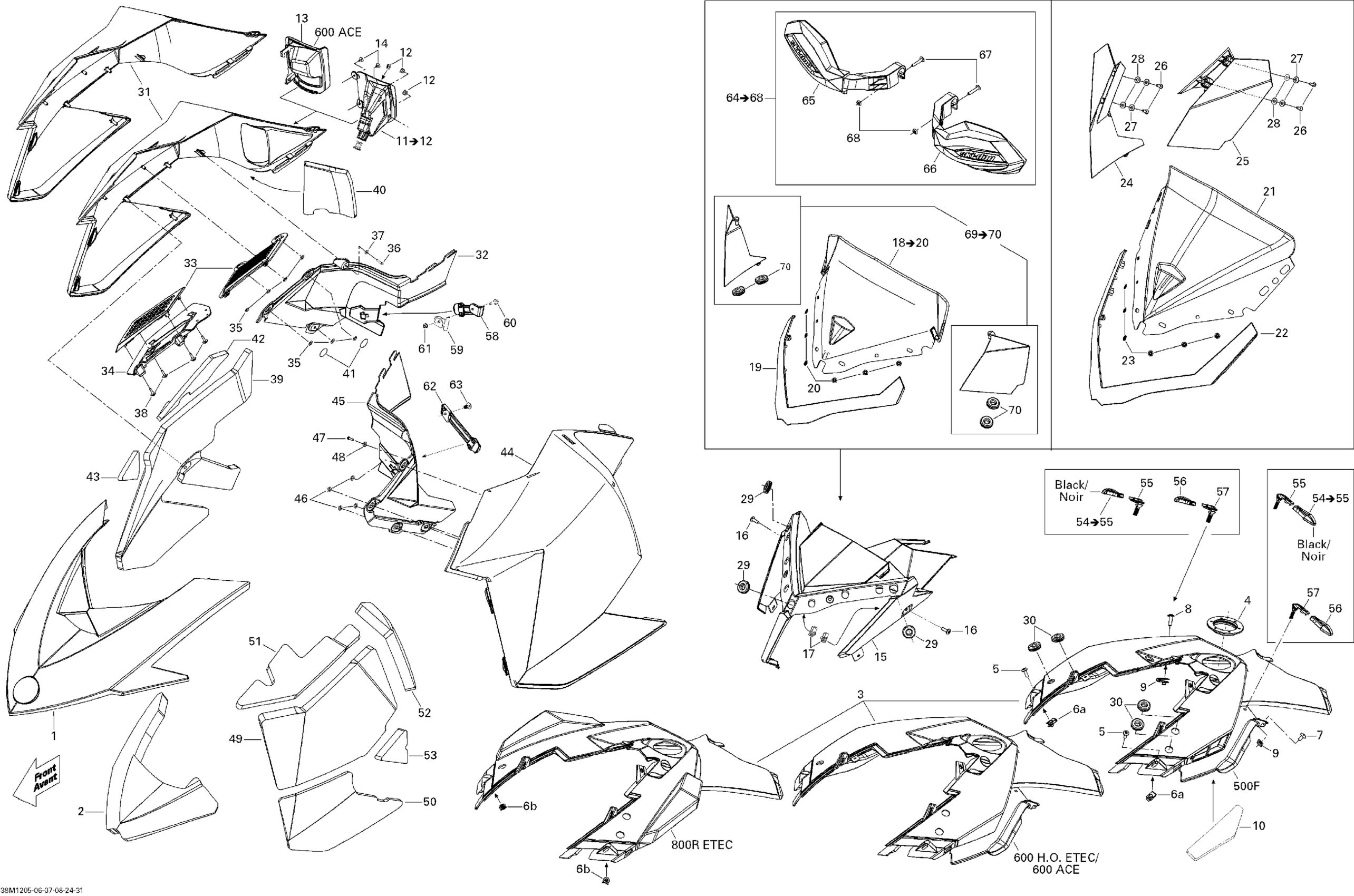

Ski-Doo Renegade Sport 600ACE LFF, 2012 09- Hood, Windshield And Console Diagram

#

Description
Price

1

Deep Black Hood | Deep Black

517304530

$214.99

2

Hood Foam

517304913

$22.49

3

CONSOLE B-160 - Call your local BRP dealership

517303924

Unavailable

4

Console Nut

517304518

$15.29

5

Torx Screw M6 X 20

250000722

$1.68

6a

Panel Nut M6 X 1.0

250100198

$2.11

6b

Not Available As Spare Parts

XXX

Unavailable

7

Torx Truss Screw M6 X 16

250000721

$1.69

8

Torx Screw M6 X 20

250000722

$1.68

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Black, RH Console

517304500

$28.99

14

Not Available As Spare Parts

XXX

Unavailable

15

Gauge Support

517304575

$70.99

16

Torx Screw M6 X 20

250000722

$1.68

17

Panel Nut M6 X 1.0

250100198

$2.11

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Windsheld Kit 375

860200478

$169.99

21

Windsheld 375mm | Deep Black

517304395

$148.99

22

Windshield Support

517303607

$34.99

23

Push Nut

732610072

$2.19

24

RH Air Deflector

517303604

$43.99

25

LH Air Deflector

517303605

$43.99

26

Torx Screw K50 X 16

250000720

$1.69

27

Washer M5

250200025

$0.74

28

Rubber Washer 5 mm

250200024

$2.19

29

Grommet

517303756

$4.09

30

Grommet

517303756

$4.09

31

Deep Black, RH Panel

517304029

$211.99

32

RH MOULDING PANEL - Call your local BRP dealership

517304424

Unavailable

33

EXTERNAL GRILL - Call your local BRP dealership

517304763

Unavailable

34

INTERNAL GRILL - Call your local BRP dealership

517304764

Unavailable

35

Push Nut

732610072

$2.19

36

Hex. Flange Screw K40 X 16

241141660

$1.48

37

Flat Washer 4 mm, Stainless

234042600

$1.15

38

Screw M4 X 16

250000725

$3.49

39

RH Center Foam

517304883

$43.99

40

RH Panel Rear Foam

517304884

$19.99

41

Adhesive Patch

518325560

$4.69

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Deep Black, LH Panel

517304030

$211.99

45

LH MOULDING PANEL - Call your local BRP dealership

517304431

Unavailable

46

Push Nut

732610072

$2.19

47

Hex. Flange Screw K40 X 16

241141660

$1.48

48

Flat Washer 4 mm, Stainless

234042600

$1.15

49

LH Panel Center Foam

517304887

$27.99

50

LH Panel Lower Foam

517304888

$22.49

51

LH Panel Upper Foam

517304889

$21.99

52

LH Panel Rear Foam

517304890

$17.99

53

Foam

517304891

$21.99

54

Black Latch Kit | Includes 390 to 400

860200239

$16.88

55

Panel Latch

517303981

$12.99

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

PANEL LATCH - Call your local BRP dealership

517304551

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Not Available As Spare Parts

XXX

Unavailable

61

Not Available As Spare Parts

XXX

Unavailable

62

LH Panel Latch

517303808

$11.49

63

Torx Screw M6 X 20

250000722

$1.68

64

Not Available As Spare Parts

XXX

Unavailable

65

Not Available As Spare Parts

XXX

Unavailable

66

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

Not Available As Spare Parts

XXX

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable
