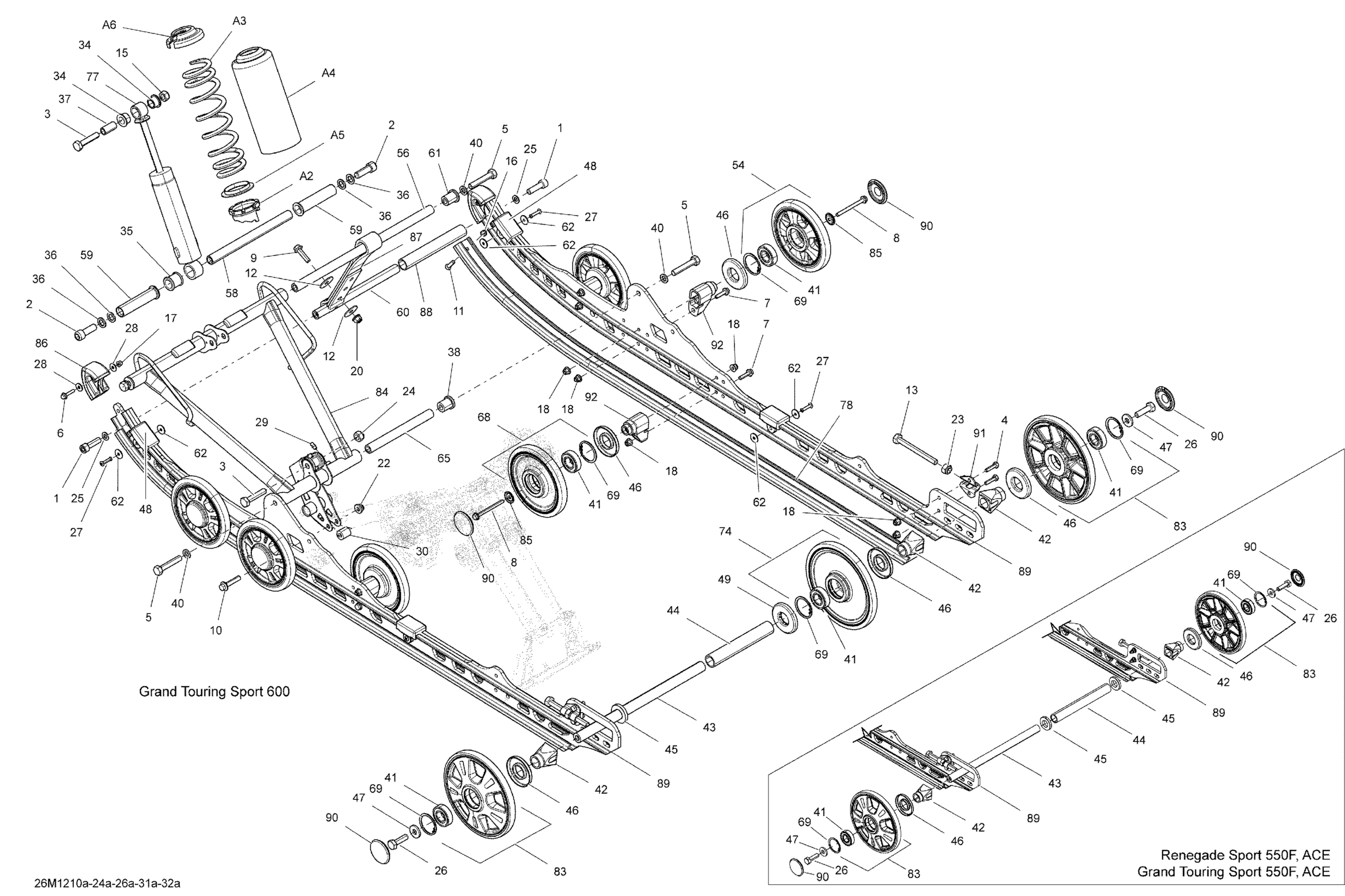

Ski-Doo Renegade Sport 600ACE LFF, 2012 Rear Suspension Base And Front Arm Diagram

#

Description
Price

1

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

2

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

3

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

4

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

5

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex Flange Screw M6 x 25

250000522

$4.28

8

Hex. Flange Screw M6 X 70

250001027

$1.74

9

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

10

Hex. Flange Screw M8 X 40

207684044

$1.25

11

Phillips Screw M6 X 25

208562531

$1.74

12

Flat Washer

224081301

$0.86

13

Hex Screw M10 x 100

230100054

$5.29

15

Elastic Locking Nut M10 X 1.5

233601416

$1.68

16

Elastic Stop Nut M6

232561414

$1.55

17

Hex. Flange Elastic Nut M5

233251414

$1.66

18

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

18

Elastic Flange Nut M6 X 1.0

233261416

$1.74

20

Hex. Flange Elastic Nut M8

233281414

$1.14

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

24

Elastic Locking Nut M10 X 1.5

233601416

$1.68

25

Washer

503189564

$0.72

26

Hex. Screw With Nylon

250000019

$1.42

27

Pop Rivet 3/16"

293150142

$2.11

28

Washer | DS 650 X

391301600

$0.48

29

Grease Fitting

408200700

$2.80

30

Bushing

414936000

$11.55

34

Urethane Bushing

503189117

$6.88

35

Bushing

503189271

$10.46

36

Washer

503189276

$3.20

37

Bushing | Includes 240d to 240d1

503189282

$4.18

38

Bushing

503189324

$11.17

40

Washer

503192496

$0.75

40

Washer

503189564

$0.72

41

Ball Bearing | Package-STD

503190396

$7.12

42

Rear Wheel Spacer

503190428

$6.06

43

Rear Axle

503190429

$59.97

44

Spacer

503191108

$15.35

45

Washer

503190432

$12.52

46

Labyrinth Seal

503190434

$4.29

47

Washer

503190439

$5.82

48

Rubber Stopper

503190576

$10.23

49

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

56

Upper Shaft

503191215

$36.12

58

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

59

Center Bushing

503191259

$8.97

60

Axle Strap

503191260

$29.20

61

Bushing

503191262

$13.60

62

Washer

503191273

$1.06

65

Lower Shaft

503191279

$27.66

68

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

69

Retaining Ring

415129371

$8.92

74

Not Available As Spare Parts

XXX

Unavailable

77

Center Shock

503192266

$157.66

78

Slider 137

503191619

$33.05

83

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$49.97

84

Front Arm | Includes 2000a to 2000b

503191752

$359.97

85

Wheel Cup M6

503191820

$4.66

86

Runner Protector

503192299

$23.82

87

Stopper Strap

503192360

$19.97

88

Spacer

503196943

$7.58

89

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192902

Unavailable

90

Black, Wheel Cap

503192771

$2.28

91

Tensioner

503192583

$5.85

92

Casted Support

503193894

$12.75

A2

Adjustment Cam

505073625

$12.18

A3

Black, Spring

503191882

$59.97

A4

Protector

503193663

$35.35

A5

Spring Guide

503191872

$2.18

A6

Spring Stopper

706200881

$10.30
