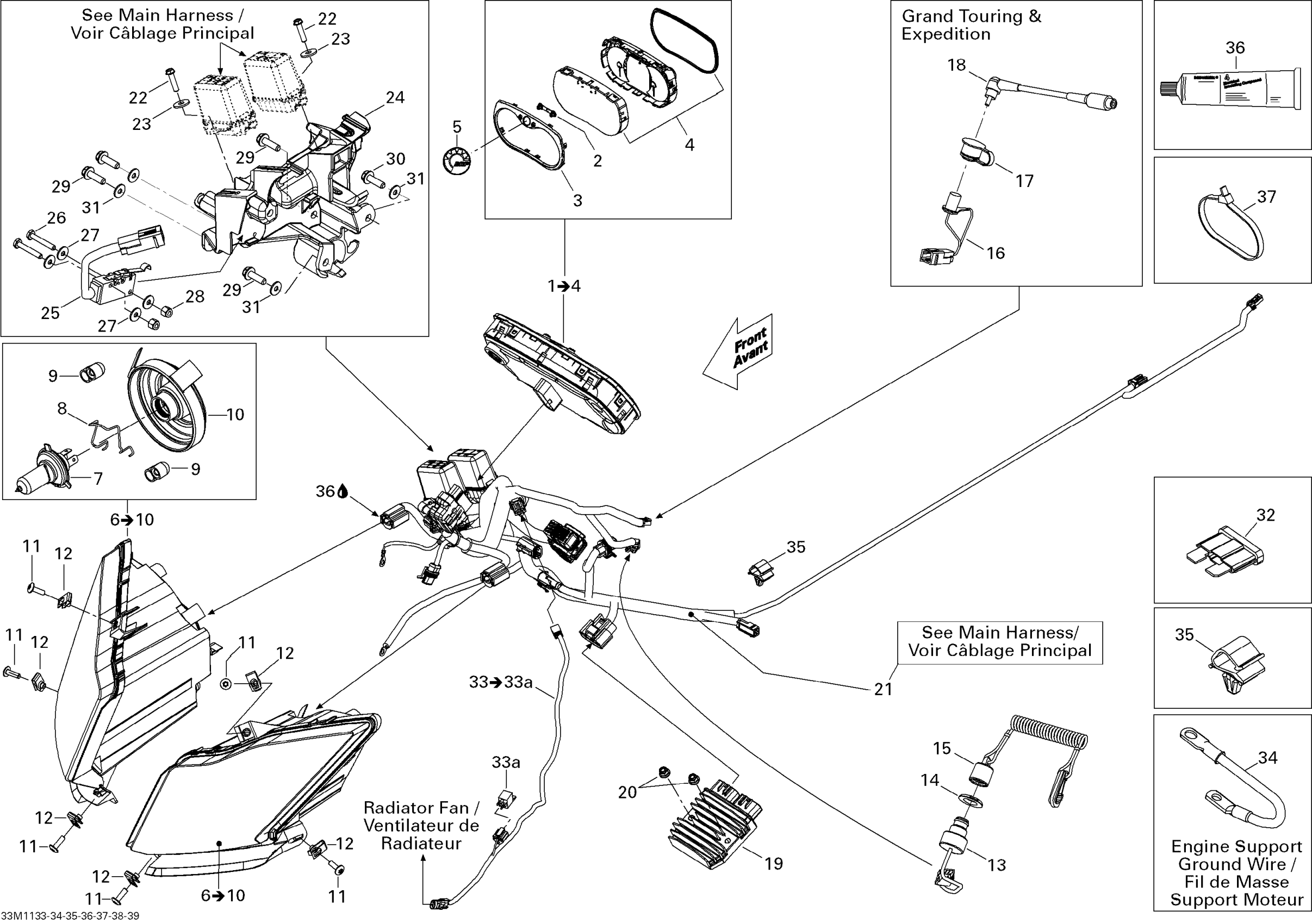

Ski-Doo Renegade Sport 600ACE, 2011 Electrical System Diagram

#

Description
Price

1

Indicator

515177911

$499.22

2

Speedometer Button | XTP

415129355

$13.52

3

Gauge Ring

415129370

$10.34

4

Lens | XTP

415129349

$22.36

5

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

8

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

9

Cap

515176498

$11.82

10

Rubber Cap Protector

219800280

$17.13

11

Torx Screw M6 X 20

250000722

$1.54

12

Panel Nut M6 X 1.0

250100198

$1.99

13

DESS Switch

515177249

$102.96

14

Safety Nut (DESS Switch)

278002963

$3.12

15

DESS

515178284

$79.07

16

Not Available As Spare Parts

XXX

Unavailable

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$132.99

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

21

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 257

515176991

Unavailable

22

Hex. Screw 10-14 X 7/8”

211000023

$3.34

23

Flat Washer M6, Stainless

234062600

$0.73

24

PLATE - Call your local BRP dealership

515176866

Unavailable

25

SWITCH ASS'Y - Call your local BRP dealership

515176881

Unavailable

26

Hex Screw M3 X 20

207132044

$2.00

27

Flat Washer M3, Stainless

234032600

$0.52

28

Elastic Stop Nut M3

232531423

$0.52

29

Hex. Flange Screw M6 X 20

210262040

$2.00

30

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

31

Flat Washer

250200039

$0.70

32

Little Fuse, 5 Amperes

710000742

$8.31

32

Little Fuse, 10 Amperes

710000744

$8.31

32

Little Fuse, 15 Ampere

710000745

$7.78

32

Little Fuse, 20 Amperes

710000746

$7.78

32

Little Fuse, 30 Amperes

710000747

$7.78

33

Not Available As Spare Parts

XXX

Unavailable

33a

Not Available As Spare Parts

XXX

Unavailable

34

Ground Wire

515177014

$14.90

35

Tie Rap Mount (screwable)

515176795

$4.96

36

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

37

Tie Wrap 94 mm | 4X4

293750001

$0.96

37

Tie Wrap 142 mm

293750002

$1.01

37

Tie-Rap 173 mm

293750009

$0.97

37

Tie-Rap 180 mm

414115200

$0.10

37

Tie Wrap 368 mm

293750008

$0.97
