Description

Price

1

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 257

515176991

Unavailable

BM

Open Barrel

278000992

$2.06

BP

Open Barrel

278000992

$2.06

CM

Female Housing, 3 Circuits

409209600

$34.30

CM

Wire Seal

515176621

$6.79

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

CM

Tie Wrap 142 mm

293750002

$1.01

COM

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

COM

Male Wedge, 6 Circuits

515175678

$4.96

COM

Sealing Cap

293000052

$2.93

COM

Female Terminal

278001665

$4.28

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Plug

515175812

$1.96

CV

Female Housing

710000399

$13.60

CV

Wire Seal

515175803

$2.76

CV

Female Terminal

515175806

$0.93

CV

Female Terminal

710001131

$6.79

DS

Female Housing, 3 Circuits

515175495

$14.90

DS

Female Terminal

515175231

$4.00

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Molex Housing, 48 Circuits

710001967

$132.06

ECMB

Plug

710001592

$2.06

ECMB

Plug

710001593

$2.06

ECMB

Female Terminal

710001589

$2.06

ECMB

Female Terminal

710001590

$1.94

ES

Female Housing, 2 Circuits

515175658

$14.90

ES

Female Terminal

515175231

$4.00

ES

Tie Wrap 142 mm

293750002

$1.01

FT

Female Terminal Housing, 4 Circuits

515175845

$7.78

FT

Female Terminal

515175231

$4.00

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HG

Female Terminal

515175282

$6.24

HG

Female Terminal

515175231

$4.00

HIC

Male Connector, 4 Circuits | CE

278000739

$17.13

HIC

Male Lock, 4 Circuits | CE

278000738

$2.82

HIC

Sealing Cap

293000052

$2.93

HIC

Female Terminal

278001665

$4.28

IR

Female Housing, 2 Circuits

515175658

$14.90

IR

Female Terminal

515175231

$4.00

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NE

Male Terminal

515175232

$1.45

NV

Clip

710000992

$3.88

NV

Housing

710000568

$10.51

NV

Wire Seal

515176621

$6.79

NV

Male Terminal

515176164

$6.24

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

PE

Housing

710001132

$9.31

PE

Lock

710001133

$4.00

PE

Plug

409013700

$4.28

PE

Seal

710000643

$4.00

PE

Female Terminal

278001481

$2.93

PF1

Fuse Box Cover

278002286

$26.09

PF1

FUSE DECAL - Call your local BRP dealership

516005569

Unavailable

PF1

Fuse Box Ass'y

278002285

$26.84

PF1

Little Fuse, 5 Amperes

710000742

$8.31

PF1

Little Fuse, 10 Amperes

710000744

$8.31

PF1

Little Fuse, 10 Amperes

710000744

$8.31

PF1

Little Fuse, 10 Amperes

710000744

$8.31

PF1

Little Fuse, 15 Ampere

710000745

$7.78

PF1

Little Fuse, 30 Amperes

710000747

$7.78

PF1

Wire Seal

278000216

$2.93

PF1

Relay

715900824

$18.63

PF1

Wire Seal

278000218

$4.00

PF1

Wire Seal

278001065

$5.85

PF1

Female Terminal

710000890

$4.28

PF1

Female Terminal

710000918

$5.85

PF2

Fuse Box Cover

278002286

$26.09

PF2

FUSE RELAY DECAL - Call your local BRP dealership

515177015

Unavailable

PF2

Fuse Box Ass'y

278002285

$26.84

PF2

Little Fuse, 15 Ampere

710000745

$7.78

PF2

Little Fuse, 20 Amperes

710000746

$7.78

PF2

Wire Seal

278000216

$2.93

PF2

Relay

715900824

$18.63

PF2

Relay

715900824

$18.63

PF2

Wire Seal

278000218

$4.00

PF2

Wire Seal

278001065

$5.85

PF2

Female Terminal

710000890

$4.28

PF2

Female Terminal

710000918

$5.85

RE

Female Housing, 3 Circuits

710000879

$24.60

RE

Cap

710000882

$10.55

RE

Seal

710000881

$16.39

RE

Female Terminal

710000877

$7.25

SA

Female Housing, 3 Circuits

515175495

$14.90

SA

Female Terminal

515175231

$4.00

SB

Housing

710000568

$10.51

SB

Wire Seal

515176621

$6.79

SB

Male Terminal

515176164

$6.24

SD

Female Terminal Housing, 1 Circuit

409010400

$7.25

SD

Female Terminal

409010100

$5.30

VC

Female Housing, 2 Circuits

515175658

$14.90

VC

Female Terminal

515175231

$4.00

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$12.75

254

Was 409901700 Tubing (9 mm)

219704399

$77.58

255

Was 409901800 Tubing (13 mm)

219704400

$10.79

257

Was 409901600 Tubing 19mm

219704398

$87.28

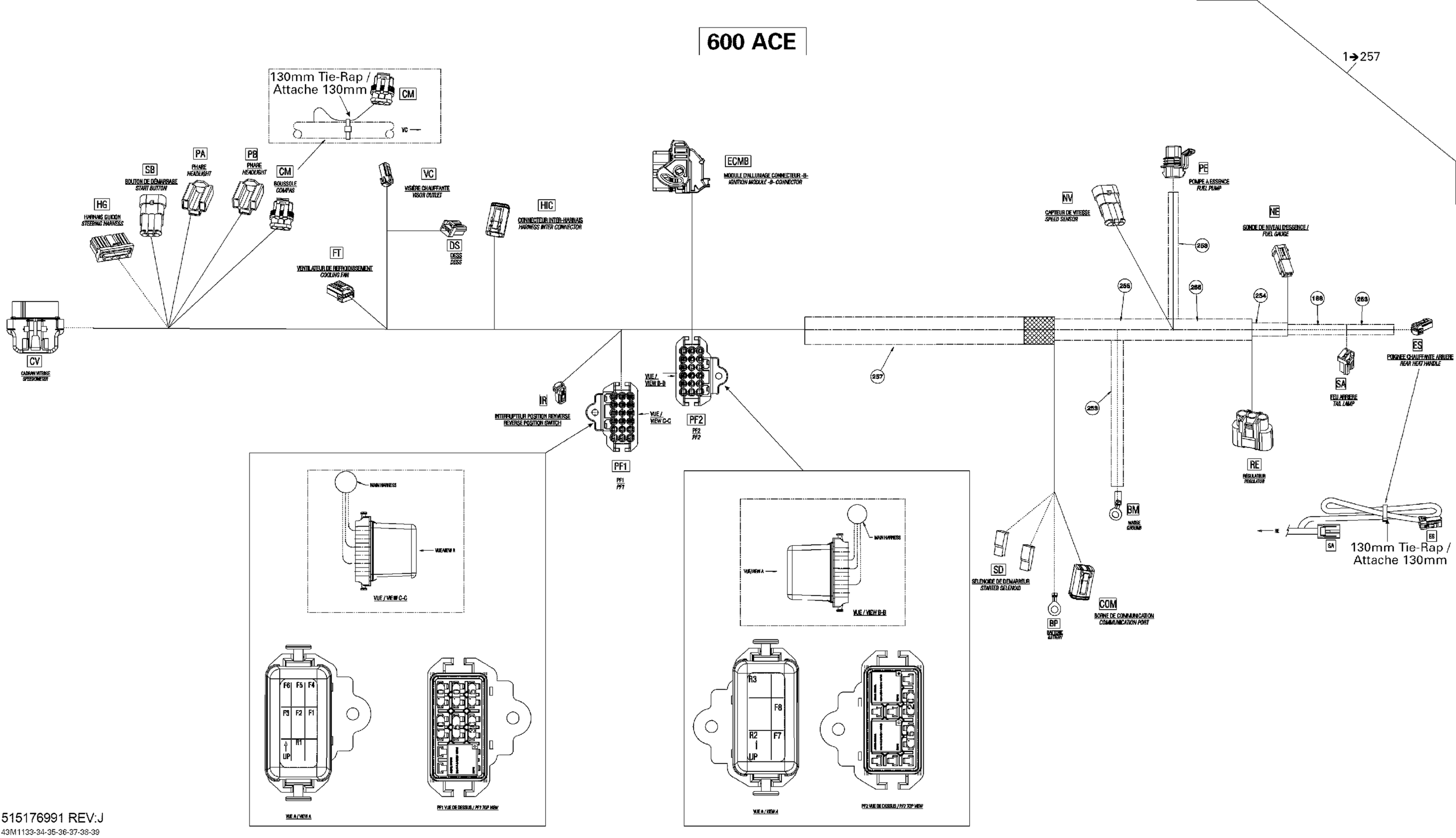

Ski-Doo Renegade Sport 600ACE, 2011 Electrical Harness Diagram

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 257

Open Barrel

Open Barrel

Female Housing, 3 Circuits

Wire Seal

FEMALE TERMINAL - Call your local BRP dealership

Tie Wrap 142 mm

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

Male Wedge, 6 Circuits

Sealing Cap

Female Terminal

Female Housing, 24 Circuits

Retainer Block

Plug

Female Housing

Wire Seal

Female Terminal

Female Terminal

Female Housing, 3 Circuits

Female Terminal

Cover, 48 positions

Molex Housing, 48 Circuits

Plug

Plug

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Tie Wrap 142 mm

Female Terminal Housing, 4 Circuits

Female Terminal

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

Female Terminal

Female Terminal

Male Connector, 4 Circuits | CE

Male Lock, 4 Circuits | CE

Sealing Cap

Female Terminal

Female Housing, 2 Circuits

Female Terminal

Male Terminal Housing, 2 Circuits

Male Terminal

Clip

Housing

Wire Seal

Male Terminal

Female Housing

Terminal

Female Housing

Terminal

Housing

Lock

Plug

Seal

Female Terminal

Fuse Box Cover

FUSE DECAL - Call your local BRP dealership

Fuse Box Ass'y

Little Fuse, 5 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 10 Amperes

Little Fuse, 15 Ampere

Little Fuse, 30 Amperes

Wire Seal

Relay

Wire Seal

Wire Seal

Female Terminal

Female Terminal

Fuse Box Cover

FUSE RELAY DECAL - Call your local BRP dealership

Fuse Box Ass'y

Little Fuse, 15 Ampere

Little Fuse, 20 Amperes

Wire Seal

Relay

Relay

Wire Seal
