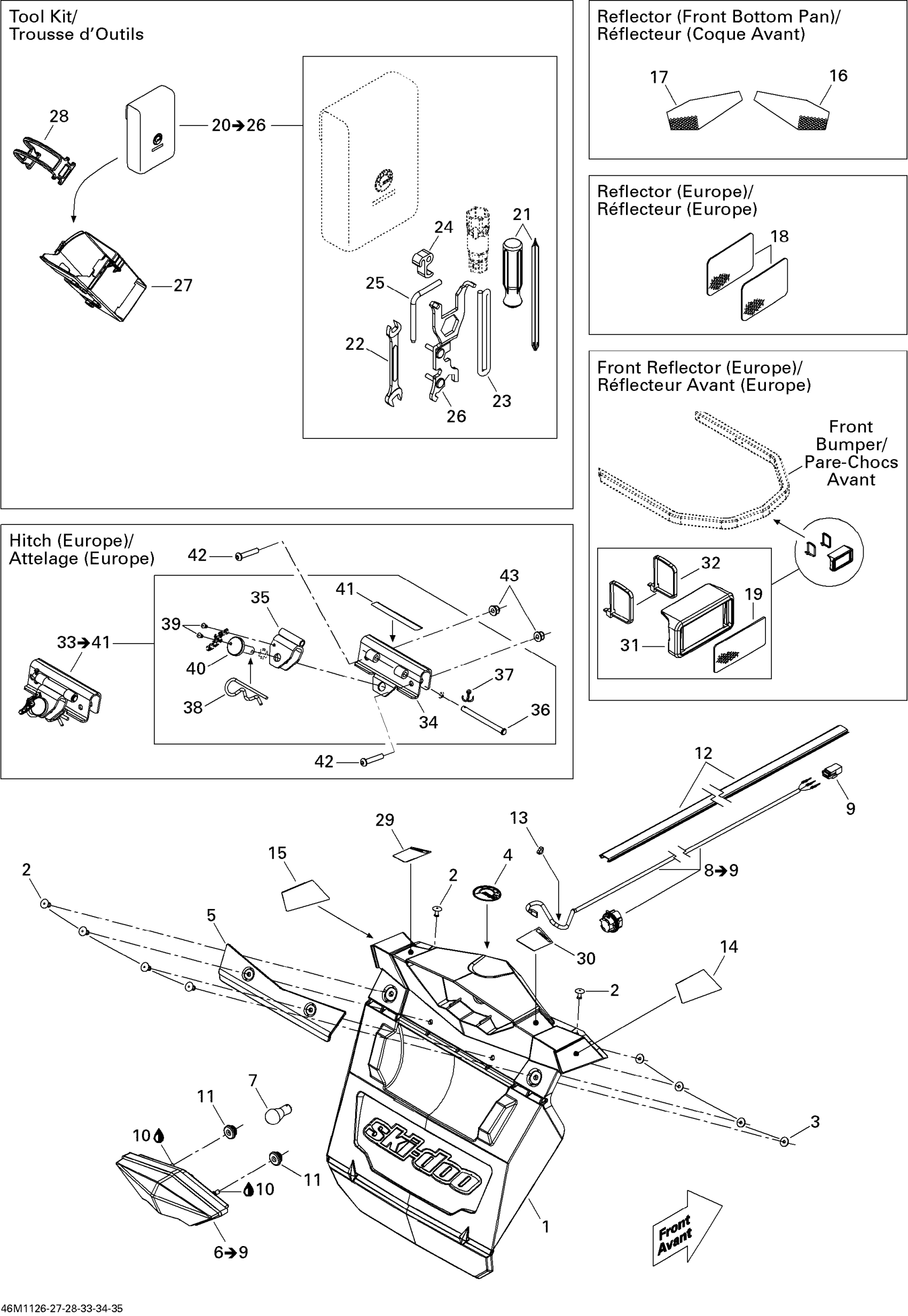

Ski-Doo Renegade Sport 600ACE, 2011 09- Utilities Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000971

Unavailable

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.19

4

BRP Logo 48 mm

219903305

$19.99

5

Reinforcement

520000751

$20.99

6

Rear Light Ass'y

520000679

$105.99

7

Bulb

520000758

$9.10

8

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

9

Male Housing, 3 Circuits

515175494

$16.18

10

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

11

Stopper Rubber

705014429

$5.95

12

Not Available As Spare Parts

XXX

Unavailable

13

Tie Wrap 142 mm

293750002

$1.25

14

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000706

Unavailable

14

Red RH Rear Reflector | North America

520000716

Unavailable

15

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000707

Unavailable

15

Red LH Rear Reflector | North America

520000717

Unavailable

16

Yellow, RH Front Reflector

520000718

$15.99

17

Yellow, LH Front Reflector

520000719

$15.99

18

Amber, Reflector

520000271

$19.99

19

White, Reflector

415037900

$22.99

20

Tool Kit | Includes 20 To 28

529000065

$55.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

23

Was 412500100 Rope-Starter

219704403

$158.99

24

Starter Grip

529000060

$14.15

25

SPACING TOOL - Call your local BRP dealership

520001028

Unavailable

26

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

27

Tool Kit Rack

520000894

$14.99

28

Latch

520000528

$7.69

29

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

30

Warning Decal, Safety

516005058

Unavailable

31

Deep Black, Reflector Support

520000871

$5.79

32

Tie Rap 371 mm

293750018

$0.56

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Support

511000554

$19.49

35

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

36

Lock Pin

511001451

$9.49

37

Cotter Pin

371800200

$0.53

38

Hair Pin

114045200

$11.11

39

Pop Rivet 5/32” | Model Europe

390404300

$0.35

40

Pin

511000555

$19.49

41

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

42

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

43

Hex. Flange Elastic Nut M8

233281414

$1.47
