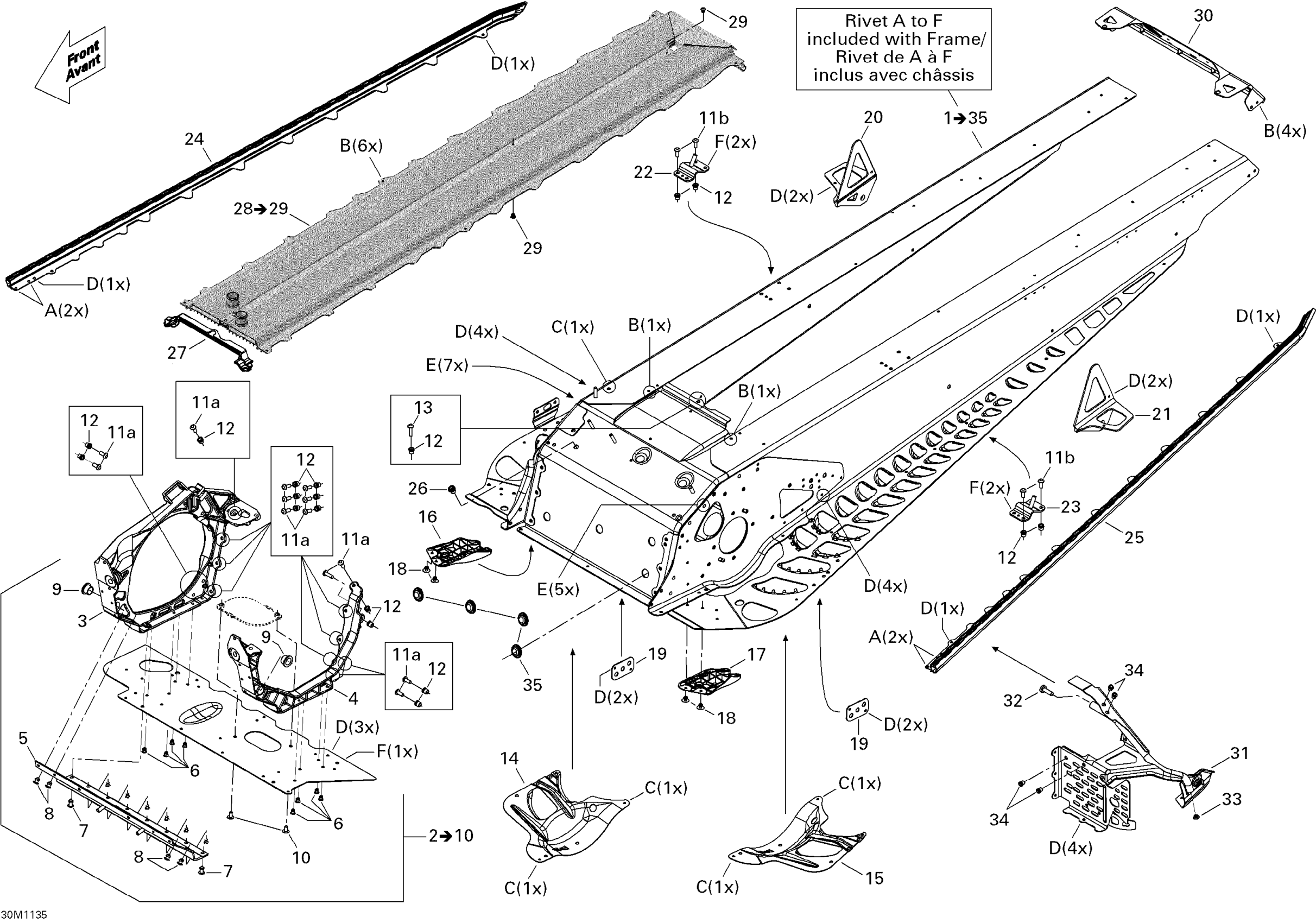

Ski-Doo Renegade Sport 600ACE, 2011 Frame Diagram

#

Description
Price

1

FRAME RENEGADE LFF - Call your local BRP dealership

415129827

Unavailable

2

E-MODULE - Call your local BRP dealership | Includes 2 to 10

518327569

Unavailable

3

RH Side Member

518326328

$252.21

4

LH Side Member

518326330

$252.21

5

Front Member

518326198

$58.18

6

Stavex Rivet

293150144

$0.75

7

Hemlock Rivet 6.5 mm

293150120

$7.01

8

Hemlock Rivet, 6.5 mm

293150119

$3.88

9

Leg Bushing

505072690

$5.75

10

Torx Truss Screw M6 X 12

250000767

$1.91

11a

Hex. Flange Screw M6 X 20

207662044

$1.91

11b

Hex. Flange Screw M6 X 16

207661644

$0.70

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Hex. Flange Screw M6 X 20

207662044

$1.91

14

RH Reinforcement

518324874

$24.60

15

LH Reinforcement

518324875

$24.60

16

RH Deflector, Black Polypropylene

518325782

$11.42

17

LH Deflector, Black Polypropylene

518325783

$11.42

18

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

19

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

20

RH Bracket

518328789

$35.79

21

LH Bracket

518328790

$35.79

22

RH Rear Base

518325973

$17.88

23

LH Rear Base | Includes 10v to 10x

518325974

$17.88

24

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

25

LH Roller

518325378

$76.99

26

Insert

293450275

$11.36

27

Seal

518326656

$8.18

28

Rear Radiator Ass'y, 137" | SPORT

518326641

$679.07

29

Stavex Rivet

293150144

$0.75

30

Rear Cap

518327105

$20.12

31

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

32

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

33

Full Moon Dart 5 mm

293730042

$2.06

34

Insert M5 X 0.8

293450268

$1.90

35

Black, Plug

293730052

$6.18

A

Pop Rivet 3/16"

390402300

$0.73

B

Avex Rivet

390909200

$0.28

C

Avex Rivet

390909100

$0.28

D

Stavex Rivet

293150144

$0.75

E

Henrob Rivet

293150146

$1.87

F

Hemlock Rivet, 6.4 mm

293150174

$6.24
