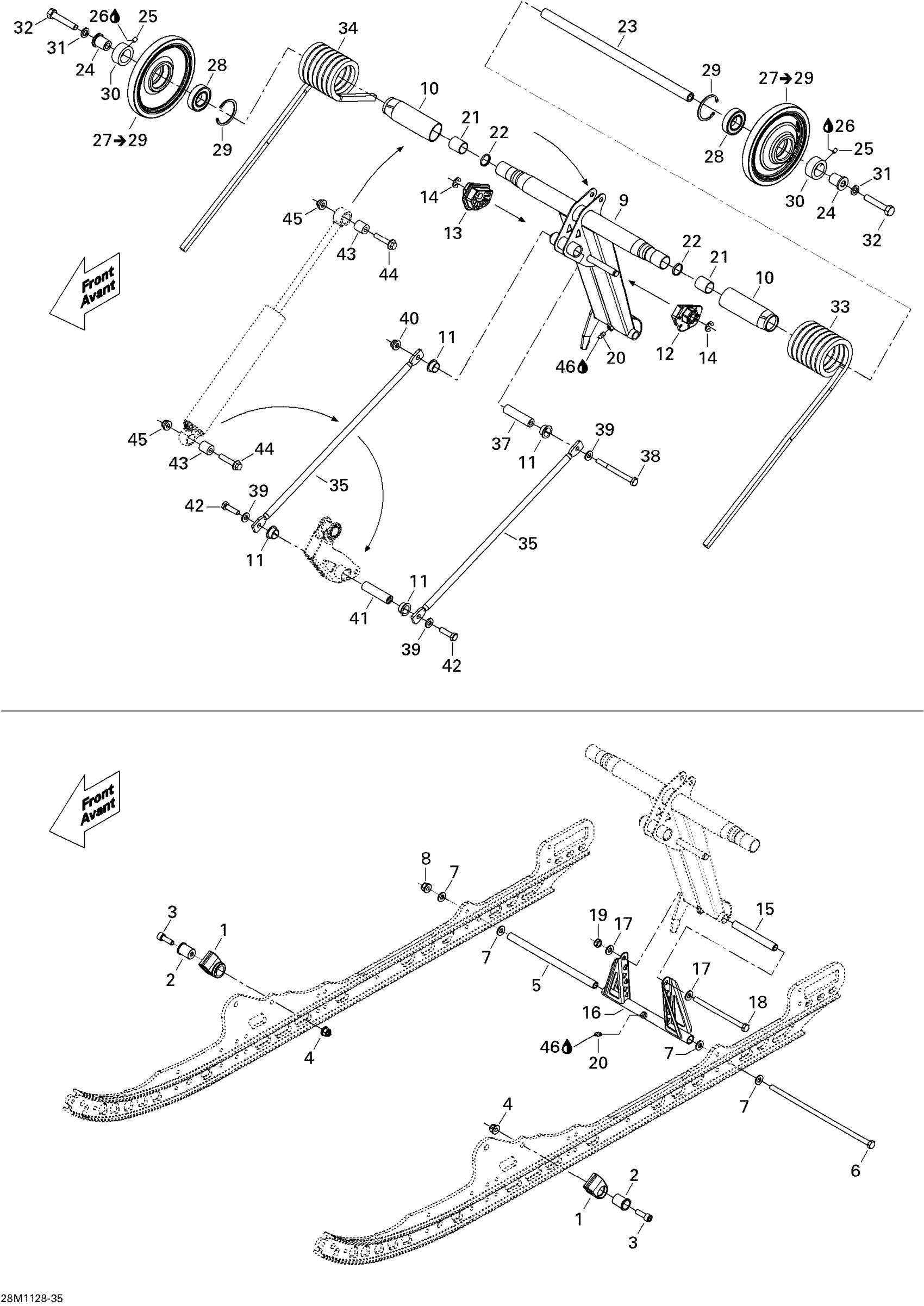

Ski-Doo Renegade Sport 600ACE, 2011 Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$8.14

2

Spring Support Kit

861805547

$8.14

3

Socket Head Screw M8 X 25

205082544

$0.92

4

Elastic Flange Nut M8

250100131

Unavailable

5

Pivot Arm Axle

503189156

$20.74

6

Bolt M8 X 248mm

503192440

$29.97

7

Washer

503189157

$3.20

8

Hex. Flange Elastic Nut M8

233281414

$1.14

9

Rear Arm Ass'y | Includes 3000 to 3000r

503192252

$96.89

10

Bushing

572080700

$15.26

11

Swivel Bushing

503191555

$5.71

12

LH Cam Adjuster

503191565

$13.95

13

RH Cam Adjuster

503191566

$13.95

14

E-Circlip

293370013

$0.62

15

Upper Axle, Pivot Arm

503144300

$11.98

16

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

17

Washer

503189157

$3.20

18

Bolt M8, Short

732601197

$15.06

19

Hex. Elastic Stop Nut M8

232581414

$0.47

20

Grease Fitting

408200700

$2.80

21

Extended Bushing

503191556

$5.71

22

Washer

503191651

$7.49

23

UPPER SHAFT - Call your local BRP dealership

503192222

Unavailable

24

BUSHING - Call your local BRP dealership

503192223

Unavailable

25

Socket Set Screw M6 X 8

206260844

$1.25

26

Loctite 243, 10 ml

293800060

$20.77

27

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

28

Ball Bearing

503193548

$16.89

29

Retaining Ring

415129371

$8.92

30

Retaining Ring

503168800

$12.65

31

Washer

503189276

$3.20

32

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

33

LH Spring

503192081

$66.89

34

RH Spring

503192080

$66.89

35

Linkage Rod

503192255

$41.51

37

Axle Bar (Long)

503190643

$15.35

38

Hex. Screw M8 X 90

207089044

$2.82

39

Washer

503189157

$3.20

40

Hex. Flange Elastic Nut M8

233281414

$1.14

41

BAR AXLE - Call your local BRP dealership

503192139

Unavailable

42

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

43

Bushing

414936000

$11.55

44

Hex. Flange Screw M8 X 40

207684044

$1.25

45

Hex. Flange Elastic Nut M8

233281414

$1.14

46

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
