Description

Price

1

Secondary Chamber Ass'y

508000625

$159.99

2

Spring

508000576

$7.79

3

Flat Washer

224060201

$1.26

4

Socket Head Screw M4 X 40 | X

205444086

$1.69

5

Elastic Stop Nut M4

232541414

$0.58

6

Grommet

508000574

$8.59

7

Cap

508000590

$18.49

8

Air Intake Filter

508000568

$28.49

9

Stopper

508000537

$7.79

10

Velcro Strip

508000820

$8.59

11

Bumper

508000572

$7.51

12

Caution Decal, Hot Parts

516004566

$9.29

13

Reflective Sheet

508000622

$10.99

14

Cap

572092900

$20.49

15

AIR INTAKE HOSE - Call your local BRP dealership

508000717

Unavailable

16

GEMI Clamp

293650212

$7.65

17

FORMED VENT HOSE - Call your local BRP dealership

508000647

Unavailable

18

Breather Valve

273000234

$14.49

19

Tube Isolator

508000648

$19.49

20

Tridon Gear Clamp

293650172

$3.09

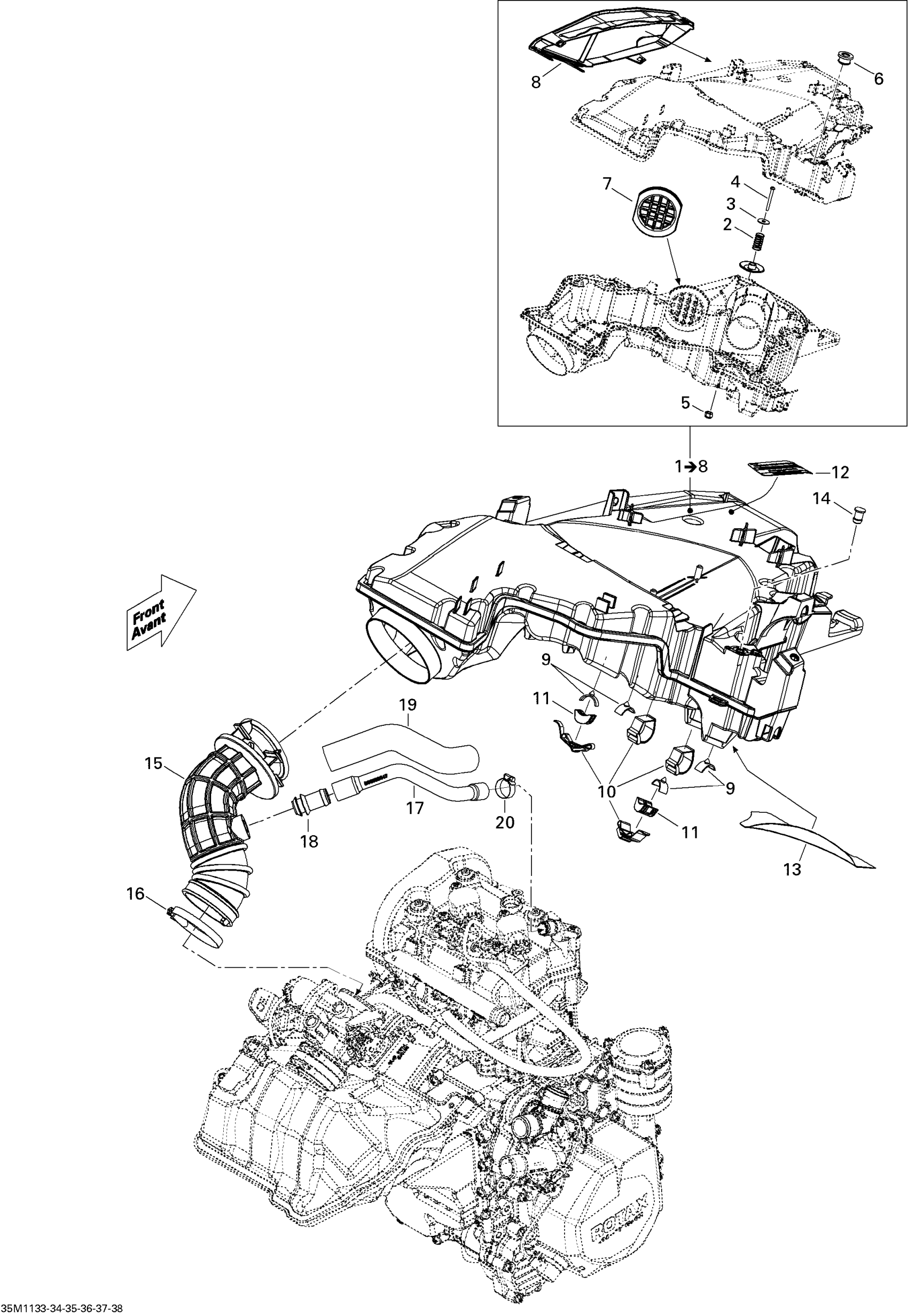

Ski-Doo Renegade Sport 600ACE, 2011 02- Air Intake System Diagram
