Partiron

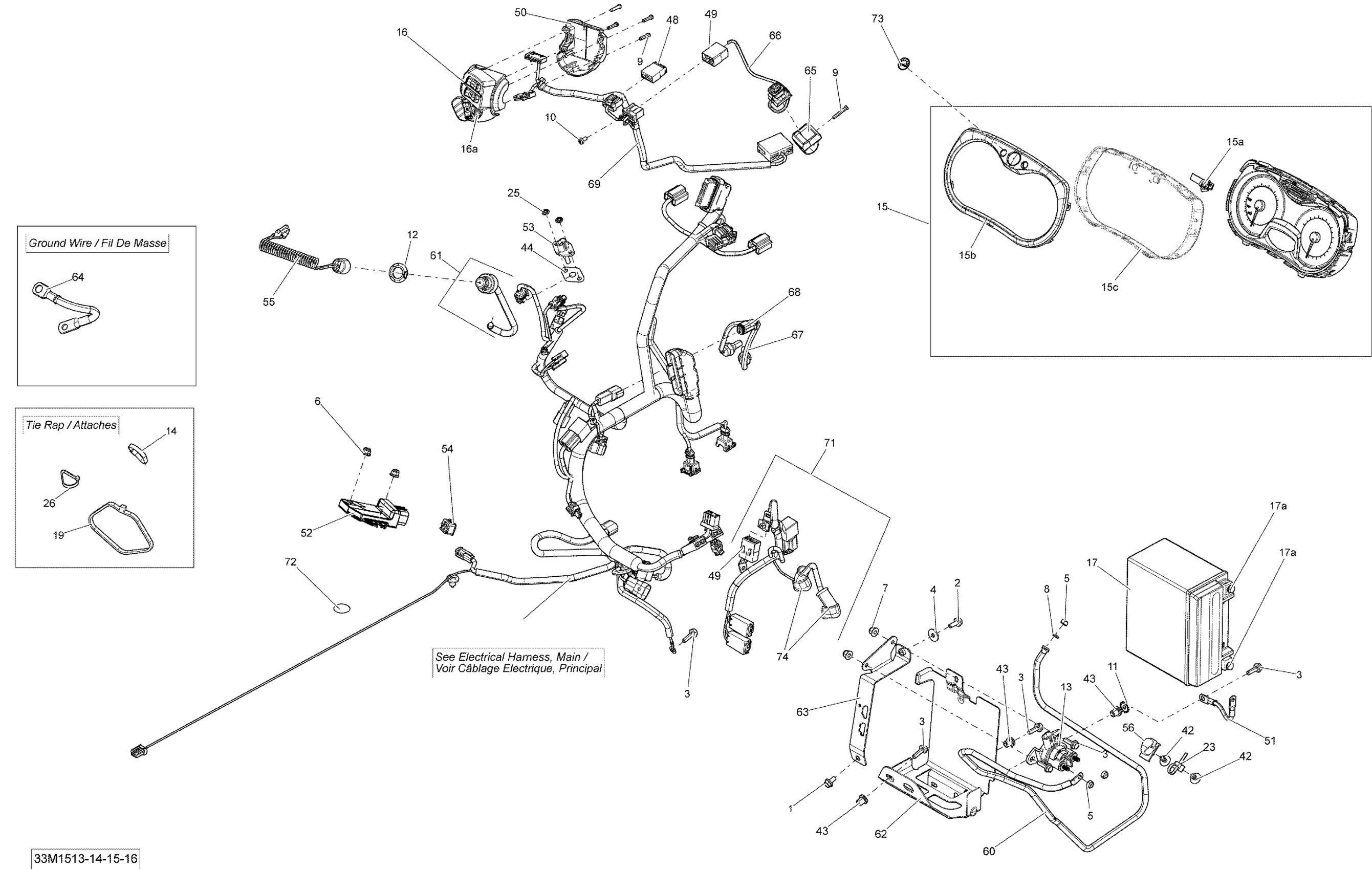

Ski-Doo Renegade Sport 600 XP137, 2015 Electrical System _33M1514 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

207661244

$1.70

2

Hex. Flange Screw M6 X 16

207661644

$0.61

3

Hex. Flange Screw M6 X 20

207662044

$1.66

4

Flat Washer

224061201

$1.11

5

Elastic Stop Nut M6

232561434

$1.55

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Elastic Flange Nut M6 X 1.0

233261416

$1.74

8

Flat Washer 6 mm

234061410

$1.04

9

Torx Screw #8-18

250000263

$1.02

10

Pan Screw Forming, 7500C

250000690

$2.06

11

Lock Washer Serrated M6

250200041

$0.92

12

Safety Nut (DESS Switch)

278002963

$2.72

13

Starter Relay

278003012

$35.07

14

Tie Wrap 142 mm

293750002

$0.88

15

Speedometer | Includes 10 to 10c

515177914

$593.82

15a

Speedometer Button | XTP

415129355

$13.94

15b

Gauge Ring

415129370

$10.66

15c

Lens | XTP

415129349

$23.05

16

LH Housing

515177022

$213.82

16a

Start/RER Button

515176088

$18.43

17

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

17a

Battery Bolt Kit

250000282

$2.95

19

Tie Wrap 368 mm

293750008

$0.85

23

Tie-Rap 173 mm

293750009

$0.85

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Not Available As Spare Parts

XXX

Unavailable

26

Tie-Rap 180 mm

414115200

$0.09

42

Black, Dart

414644300

$0.78

43

Insert

293450275

$9.89

44

Not Available As Spare Parts

XXX

Unavailable

48

Male Terminal Housing, 6 Circuits

515175662

$8.57

49

Male Terminal Housing, 8 Circuits

515175817

$8.57

50

Switch Housing Plate

515175926

$17.66

51

Ground Wire

515176358

$26.12

52

Voltage Regulator

515176364

$147.66

53

Not Available As Spare Parts

XXX

Unavailable

54

Lock

515176681

$18.43

55

DESS

515178284

$81.51

56

Clip

515177066

$4.00

57

WIRING HARNESS MAIN - Call your local BRP dealership | 600

515177095

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Battery/Starter Wire

515177208

$29.20

61

DESS Switch

515177249

$106.12

62

Battery Support

515177264

$29.97

63

Battery Strip

515177266

$15.35

64

Ground Wire

515177289

$25.35

65

Emergency Stop Switch Support

515177310

$8.60

66

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

66a

Male Terminal

515175232

$1.49

67

Not Available As Spare Parts

XXX

Unavailable

68

Sensor Temperature

515177814

$55.35

69

Steering Wiring Harness

515177609

$106.89

71

Electrical Start Harnes

515177832

$76.12

72

Adhesive Patch

518325560

$4.34

73

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

74

Protector Cap

710000495

$10.14
