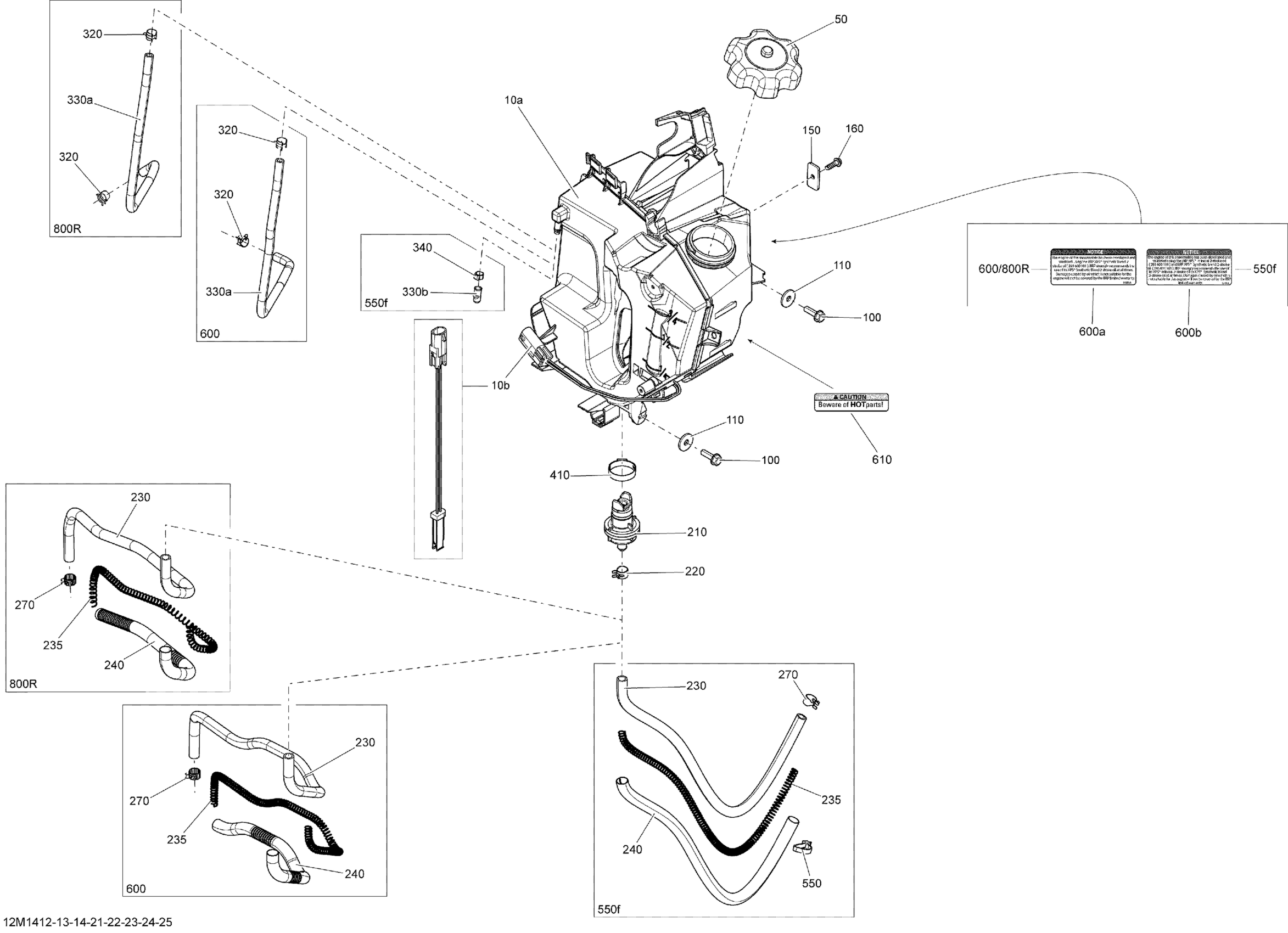

Ski-Doo RENEGADE SPORT 550F XP, 2014 02- Oil System Diagram

Description

Price

10a

Oil Tank

519000312

$97.99

10b

Oil Level Sensor

515176508

$31.99

Cap

519000273

$28.99

100

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

110

Flat Washer

224061201

$1.37

150

Bracket

519000179

$10.49

160

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

210

Oil Filter

519000242

$13.77

220

Spring Clamp

414415200

$0.88

230

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

235

Spring

519000196

$9.69

240

Tubing 10 MM 1000MM Long

219704407

$2.79

270

Spring Clamp

414420700

$0.72

320

Not Available As Spare Parts

XXX

Unavailable

330a

Not Available As Spare Parts

XXX

Unavailable

330b

Cap

519000216

$7.29

340

Oetiker Gear Clamp

293650043

$3.39

410

Crimp Clamp

293650099

$4.29

550

Tie-Rap 180 mm

414115200

$0.11

600a

Not Available As Spare Parts

XXX

Unavailable

600b

NOTICE DECAL, OIL - Call your local BRP dealership

516005651

Unavailable

610

Not Available As Spare Parts

XXX

Unavailable
