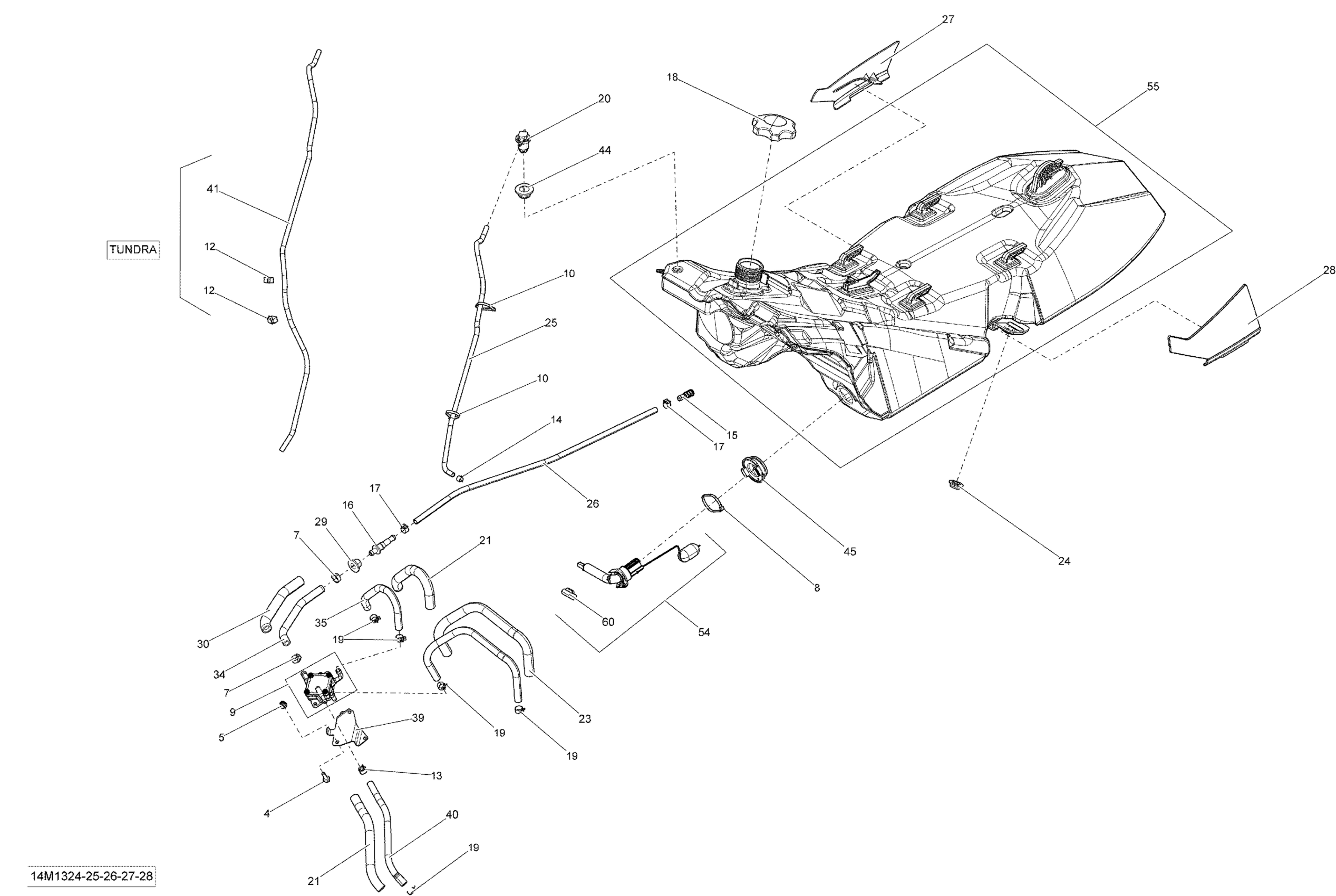

Ski-Doo RENEGADE SPORT 550F XP, 2013 Fuel System Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

7

Crimp Clamp

293650053

$2.78

8

Tie Wrap 368 mm

293750008

$0.97

9

Fuel Pump

403901813

$84.99

10

Tie-Rap 180 mm

414115200

$0.10

13

Spring Clamp

414415200

$0.81

14

Spring Clamp

414554800

$0.81

15

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

16

Male Connector

414872700

Unavailable

17

Norma Spring Clamp

513033010

$8.42

18

Fuel Tank Cap

513033969

$24.60

18

Fuel Tank Cap | Europe Models

513033721

$24.60

19

Universal Spring Clamp

513033029

$4.96

20

Check Valve

513033842

$32.81

21

Tubing 16 Mm 1000Mm Long

219704408

$7.15

23

Tubing 16 Mm 1000Mm Long

219704408

$7.15

24

Shoulder Bushing

513033326

$12.24

25

Polyurethane Hose 10000Mm Long

219704410

$52.96

26

Polyurethane Hose 1000Mm Long

219704391

Unavailable

27

RH Cap

513033418

$12.24

28

LH Cap

513033419

$12.24

29

Grommet

513033435

$4.28

30

Tubing 16 Mm 1000Mm Long

219704408

$7.15

34

Formed Hose

513033499

$28.33

35

Hose 3000Mm Long

219704612

$77.58

39

Pump Bracket

513033543

$17.88

40

Formed Hose

513033553

$23.10

44

Grommet

513033596

$17.88

45

Grommet

513033606

$17.88

54

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

55

Fuel Tank

513033695

$304.45

60

Fuse, 0.5 Ampère

710001995

$7.25

12

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable
