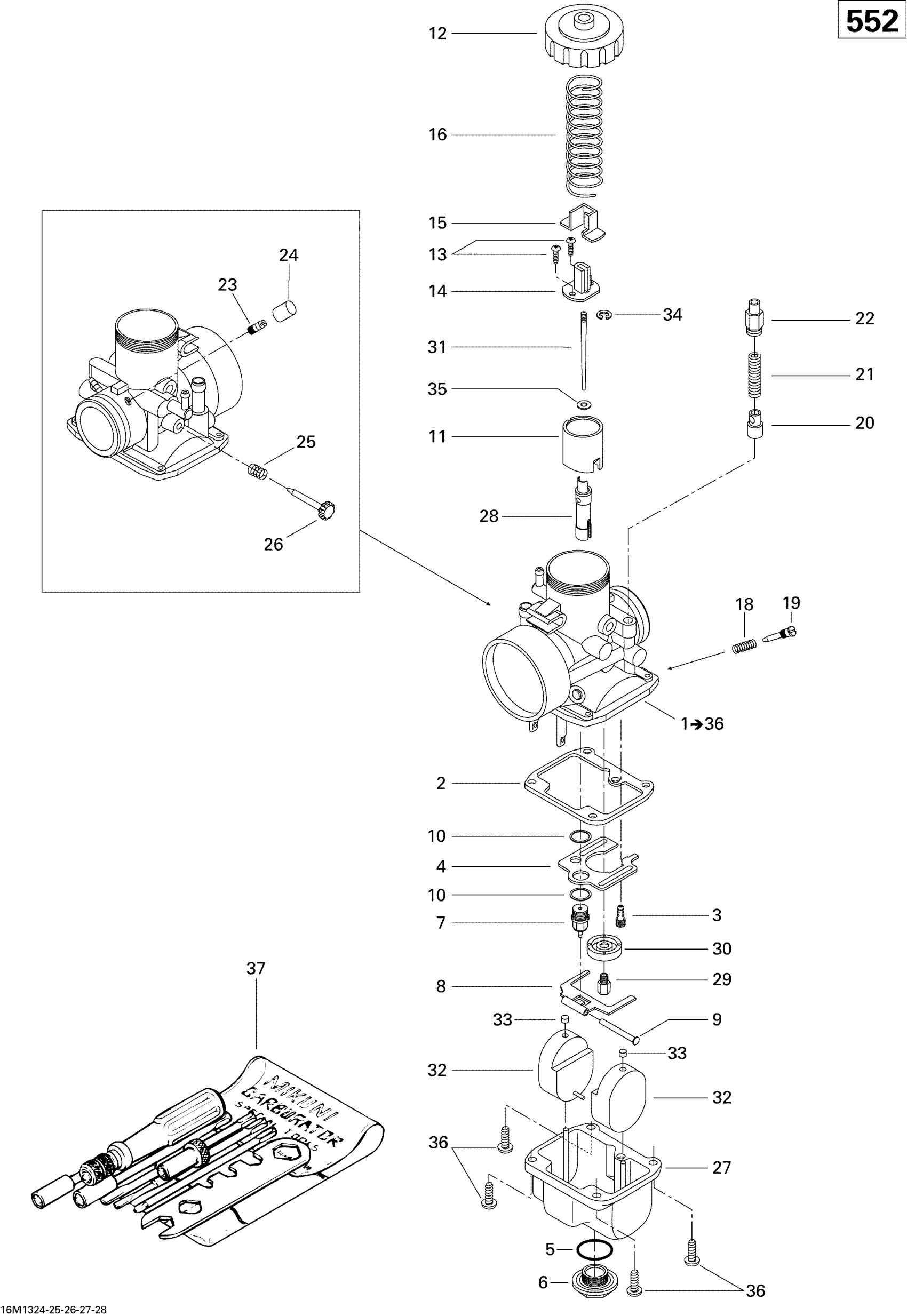

Ski-Doo RENEGADE SPORT 550F XP, 2013 02- Carburetor Diagram

#

Description
Price

1

Carburetor VM30-219, PTO

403138814

$312.49

1

Carburetor VM30-218, MAG

403138813

$322.49

2

Gasket | Includes 1900a to 1900am

404104200

$6.38

3

Pilot Jet 35

404102700

$5.21

4

Not Available As Spare Part - Friction Washer

Unavailable

5

O-Ring

404107300

$9.06

6

Drain Plug Screw

404107400

$22.99

7

Needle Valve 1.2

404147500

$42.49

8

Float Lever

404107600

$22.99

9

Lever Pin

404103300

$6.27

10

Seat Washer

404101600

$3.29

11

Piston Valve 2.5

404128400

$127.49

12

Cover

404103700

$31.99

13

Screw With Washer

404121300

$4.14

14

Packing

404161987

$15.35

15

Cover

404122100

$19.49

16

Spring

404154800

$23.99

18

Spring

404101800

$4.25

19

Air Screw

404102300

$14.35

20

Plunger Ass'y

404162130

$31.99

21

Spring

404162131

$16.86

22

Guide Holder

404162132

$34.99

22

Guide Holder

404162138

$41.49

23

Nipple

404153400

$12.16

24

Cap

404156600

$17.08

25

Spring

404101700

$4.14

26

Idle Speed Screw

404109700

$19.49

27

FLOAT BODY - Call your local BRP dealership

404162133

$67.99

28

Needle Jet

404162124

$41.49

29

Main Jet MJ 200

404112300

$5.21

29

Main Jet 190

404119000

$5.21

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Needle, J8-6BFY46

404162113

$31.99

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Cap

404105800

$6.38

34

E-Ring

404152400

$7.27

35

Packing

404117000

$3.29

36

Screw With Lock Washer

404102000

$3.18

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
