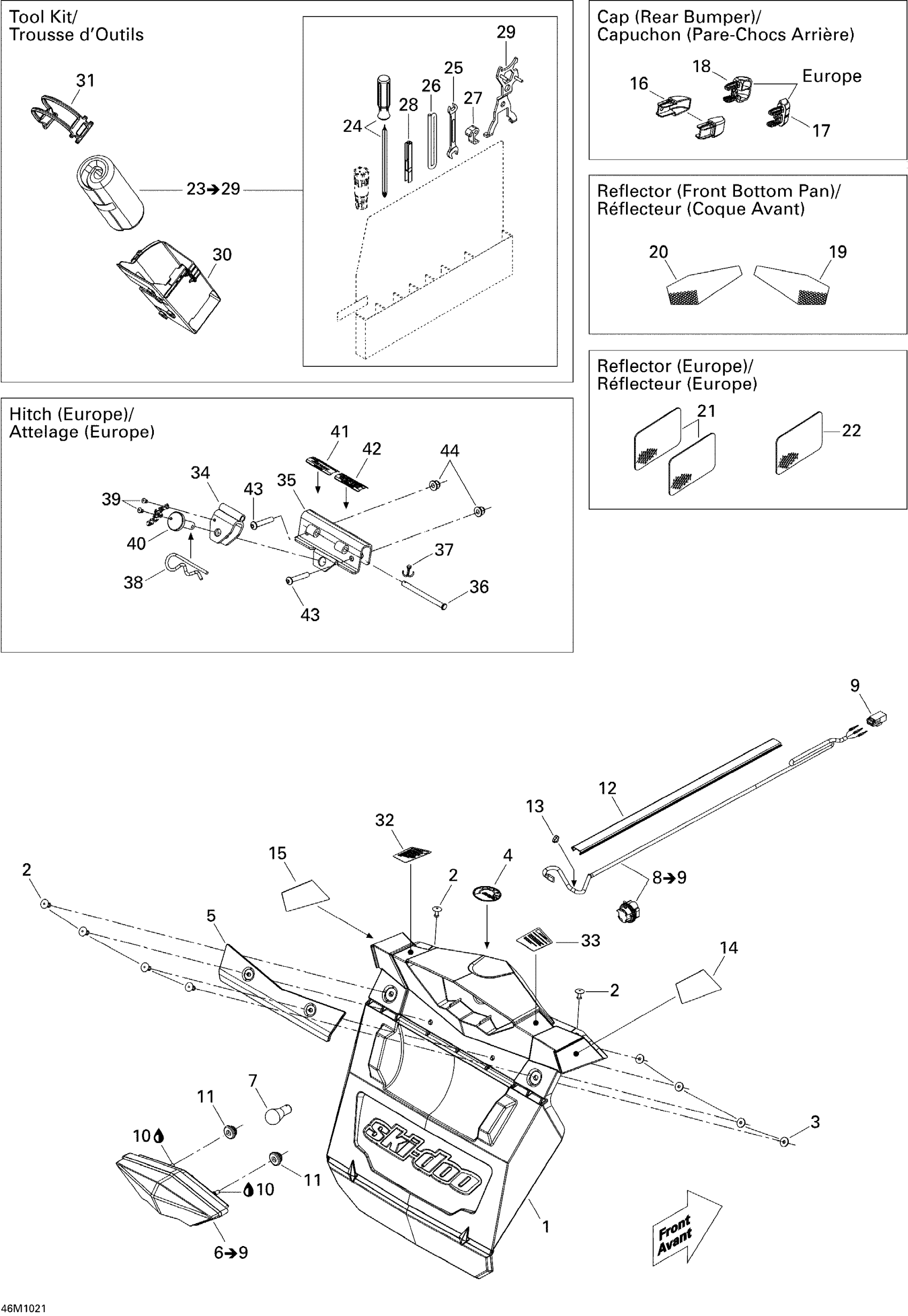

Ski-Doo Renegade Sport 550F, 2010 Utilities Diagram

#

Description
Price

1

Snow Guard

520000702

$65.99

2

Pop Rivet 3/16”

293150108

$1.23

3

Washer

517124300

$0.16

4

BRP Logo 48 mm

219903305

$14.27

5

Reinforcement

520000751

$17.66

6

Rear Light Ass'y

520000679

$103.82

7

Bulb

520000758

$7.49

8

WIRING HARNESS ASS'Y - Call your local BRP dealership

520000680

Unavailable

9

Male Housing, 3 Circuits

515175494

$15.35

10

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

11

Stopper Rubber

705014429

$6.09

12

Radiator Trim

520000829

$20.74

13

Tie Wrap 142 mm

293750002

$0.88

14

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000706

Unavailable

14

Red RH Rear Reflector | North America

520000716

Unavailable

15

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000707

Unavailable

15

Red LH Rear Reflector | North America

520000717

Unavailable

16

Full Moon Cap

520000567

$8.62

17

Full Moon RH Cap

520000711

$8.60

18

Full Moon LH Cap

520000712

$8.60

19

Yellow, RH Front Reflector

520000718

$12.52

20

Yellow, LH Front Reflector

520000719

$12.52

21

Amber, Reflector

520000271

$19.20

22

White, Reflector

415037900

$19.20

23

Tool Kit | Includes 20 To 28

529000065

$57.99

24

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

25

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

26

Was 412500100 Rope-Starter

219704403

$10.15

27

Starter Grip

529000060

$11.40

28

Spacing Tool

529035501

$4.79

29

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

30

Tool Kit Rack

520000894

$14.99

31

Latch

520000528

$6.60

32

WARNING DECAL, SECURITY - Call your local BRP dealership

520000695

Unavailable

33

WARNING DECAL, LOAD - Call your local BRP dealership

520000697

Unavailable

34

Support

511000554

$18.43

35

HITCH PLATE - Call your local BRP dealership

511000588

Unavailable

36

Lock Pin

511001451

$8.57

37

Cotter Pin

371800200

$0.51

38

Hair Pin

114045200

$10.69

39

Pop Rivet 5/32” | Model Europe

390404300

$0.31

40

Pin

511000555

$18.43

41

WARNING DECAL-SECURITY-ENGLISH - Call your local BRP dealership

516003037

Unavailable

42

WARNING DECAL-SECURITY-FRENCH - Call your local BRP dealership This part replaces 516002667.

516003038

Unavailable

43

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$7.23

44

Hex. Flange Elastic Nut M8

233281414

$1.14
