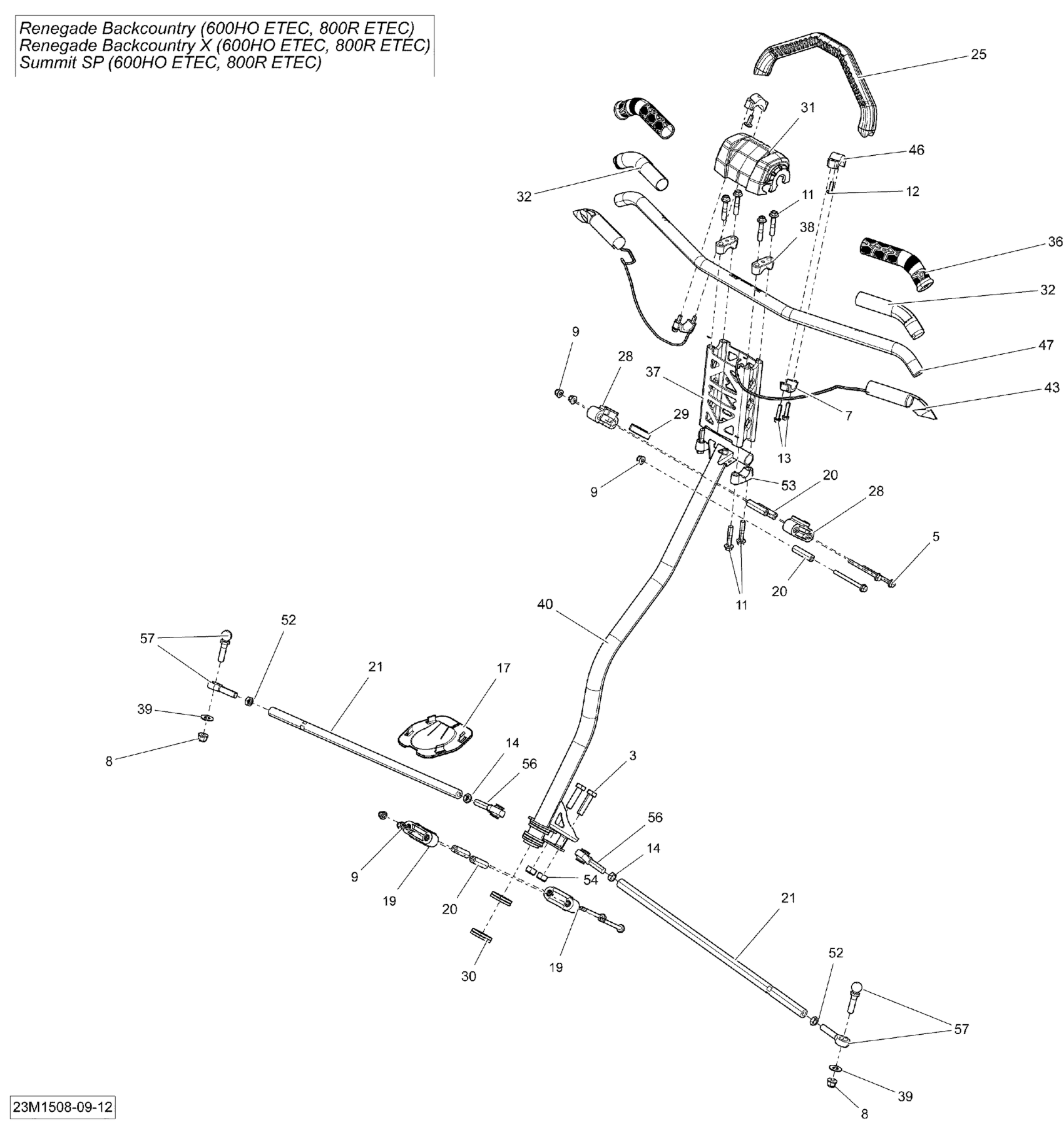

Ski-Doo Renegade Backcountry X 800RETEC XS137, 2015 Steering 800RETEC_23M1509 Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

5

Hex. Flange Screw M6 X 70

207667056

$4.44

7

Clamps | Includes 75a to 75b

719000049

$14.83

8

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

9

Elastic Flange Nut M6 X 1.0

233261416

$2.11

11

Hex. Flange Screw M8 X 40

250000352

$3.38

12

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

13

Hex. Flange Screw M6 X 25

250000447

$2.11

14

LH Threaded Hex. Jam Nut M10

250100016

$0.74

17

Plate

506152163

$12.99

19

Lower Half-Housing

506152217

$7.62

20

Housing Bushing

506152297

$12.99

21

Tie-Rod

506152498

$38.99

25

Moulding Strap

506152460

$67.99

28

Upper Half-Housing

506152508

$9.23

29

Upper Anti-Vibration Gasket

506152509

$4.79

30

Lower Vibration Ring

506152518

$4.79

31

Deep Black, Steering Pad

506152541

$41.99

32

Thermal Insulation

506153176

$6.09

36

Grip 148mm

506152560

$16.88

37

Black Handlebar Extension

506152617

$147.99

38

Steering Support | Includes 40 to 40a

506152751

$13.99

39

Washer

506152582

$4.55

40

Steering Column

506152962

$199.99

43

Heating Element 32 Watt 2 Wires

506152758

$46.99

46

Black Support Plate

506152703

$16.49

47

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

52

RH Threaded Hex. Jam Nut M10

732610010

$0.74

53

Steering Support | Includes 40 to 40a

506152751

$13.99

54

Elastic Locking Nut M10

233601466

$2.11

56

LH Thread Ball Joint

506152081

$41.49

57

RH Threaded Ball Joint

506152684

$44.49
