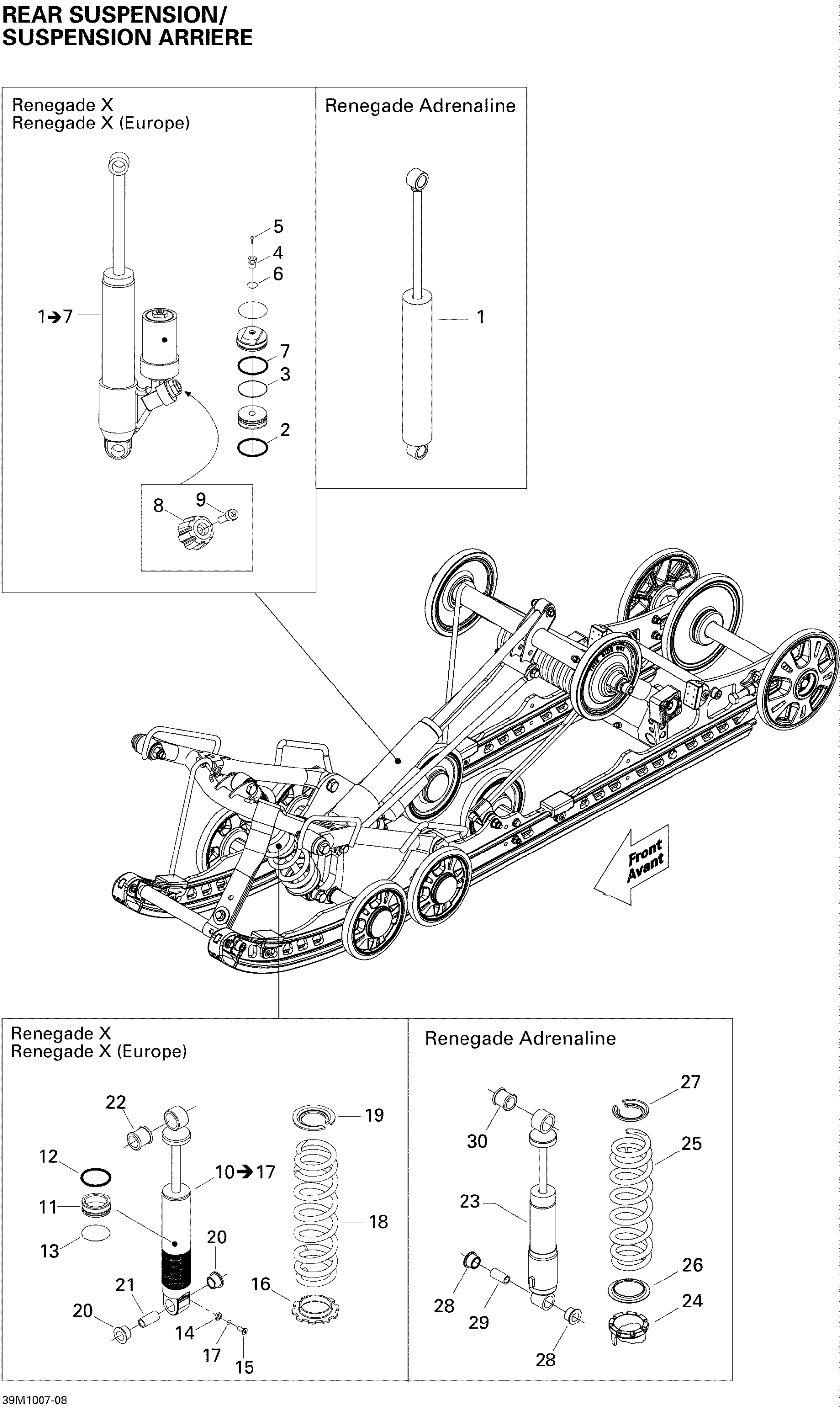

Ski-Doo Renegade BackCountry X 800R PTEK, 2010 08- Rear Suspension Shocks Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership

503192205

Unavailable

1

Rear Shock | Renegade X Europe

503192298

Unavailable

2

O-Ring

415093807

$35.99

3

Piston Ring | Not Shown

415093806

$16.86

4

Air Valve

505070398

$20.99

5

Screw | Not Shown

505070399

$4.12

6

O-Ring

505070400

$4.54

7

O-Ring

415093804

$4.54

8

Adjustment Knob

505072753

$2.19

9

Allen Screw M3 X 0.5 X 10

250000644

$2.11

10

CENTER SHOCK - Call your local BRP dealership

503192035

Unavailable

11

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

12

O-Ring

414888312

$17.29

13

Piston Ring

503189308

$79.49

14

Air Valve

505070398

$20.99

15

Screw | Not Shown

505070399

$4.12

16

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

17

O-Ring

505070400

$4.54

18

Black, Spring

503191879

$62.49

19

Spring Stopper

503194270

$19.99

20

Urethane Bushing

503189117

$8.19

21

Bushing | Includes 240d to 240d1

503189282

$4.34

22

Bushing

503189271

$13.99

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable
