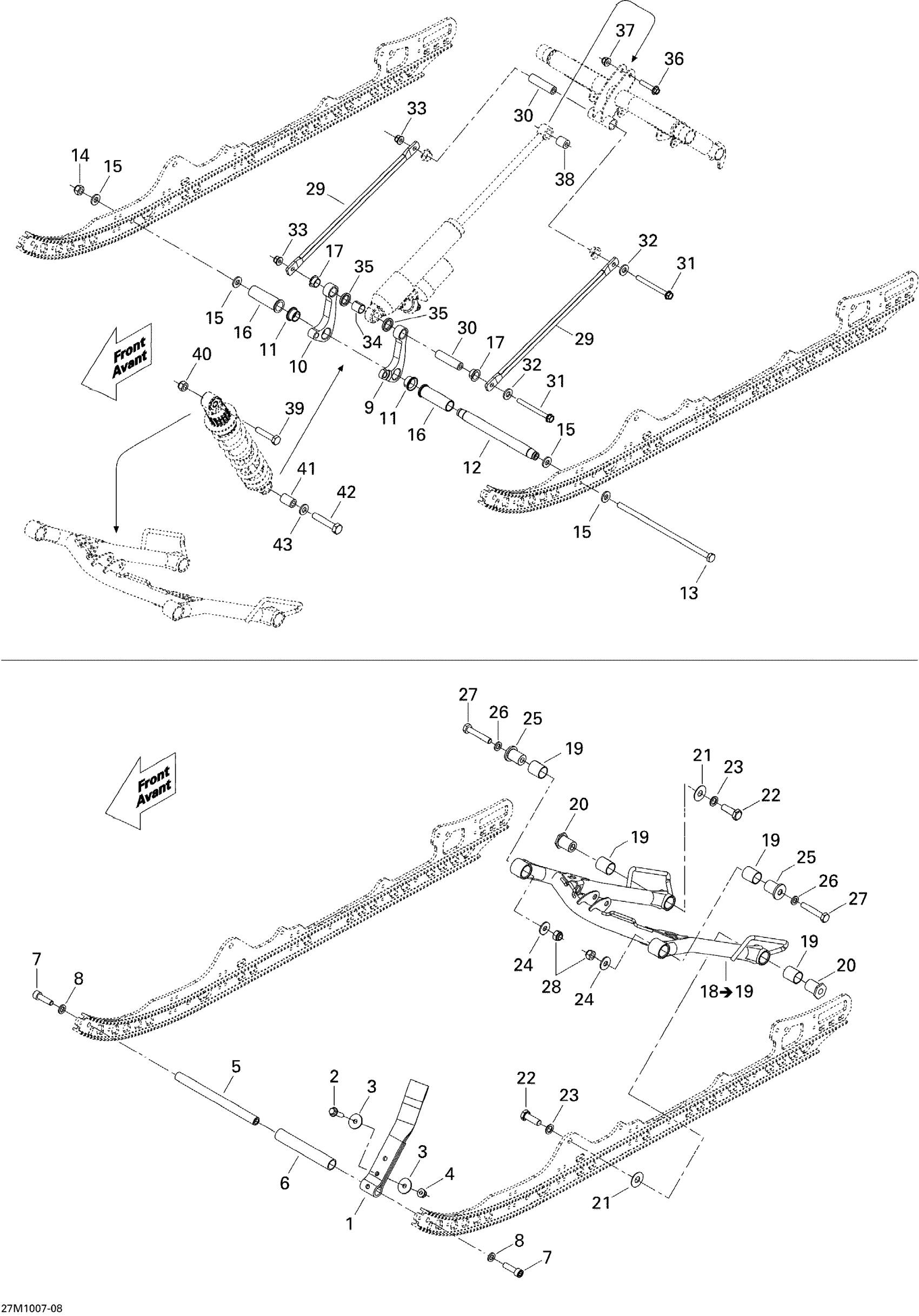

Ski-Doo Renegade BackCountry X 800R PTEK, 2010 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$19.37

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

3

Flat Washer

224081301

$0.84

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Axle Strap

503191260

$28.33

6

Spacer

503191448

$9.90

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

8

Washer

503189564

$0.70

9

LH Rocker Arm

503191890

$59.67

10

RH Rocker Arm

503191894

$59.67

11

Bushing

503191552

$5.54

12

Center Shaft

503191764

$58.93

13

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$14.30

14

Elastic Locking Nut M10 X 1.5

233601416

$1.63

15

Washer

732900049

$0.55

16

Center Bushing

503191351

Unavailable

17

Swivel Bushing

503191555

$5.54

18

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$429.82

19

Bushing

503191554

$5.70

20

Lower Axle

503191966

$14.90

21

Washer

503190656

$2.82

22

Hex. Cap Screw M12 X 35

250000537

$3.01

23

Washer

503189276

$3.10

24

Washer

503191910

$2.18

25

Axle

503190698

$17.13

26

Washer

503191910

$2.18

27

Hex. Cap Screw M10 X 60

207006056

$7.09

28

Elastic Locking Nut M10 X 1.5

233601416

$1.63

29

ROD-THROTTLE - Call your local BRP dealership

503191974

Unavailable

30

Axle Bar (Long)

503190643

$14.90

31

Hex. Screw M8 X 90

207089044

$3.24

32

Washer

503189157

$3.10

33

Hex. Flange Elastic Nut M8

233281414

$1.31

34

Bushing

503191553

$5.54

35

Plastic Spacer

503190694

$1.99

36

Hex. Flange Screw M8 X 40

207684044

$1.43

37

Hex. Flange Elastic Nut M8

233281414

$1.31

38

Bushing

414936000

$11.21

39

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

40

Elastic Locking Nut M10 X 1.5

233601416

$1.63

41

Central Shock Axle

503190604

$10.84

42

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

43

Washer

503189564

$0.70
