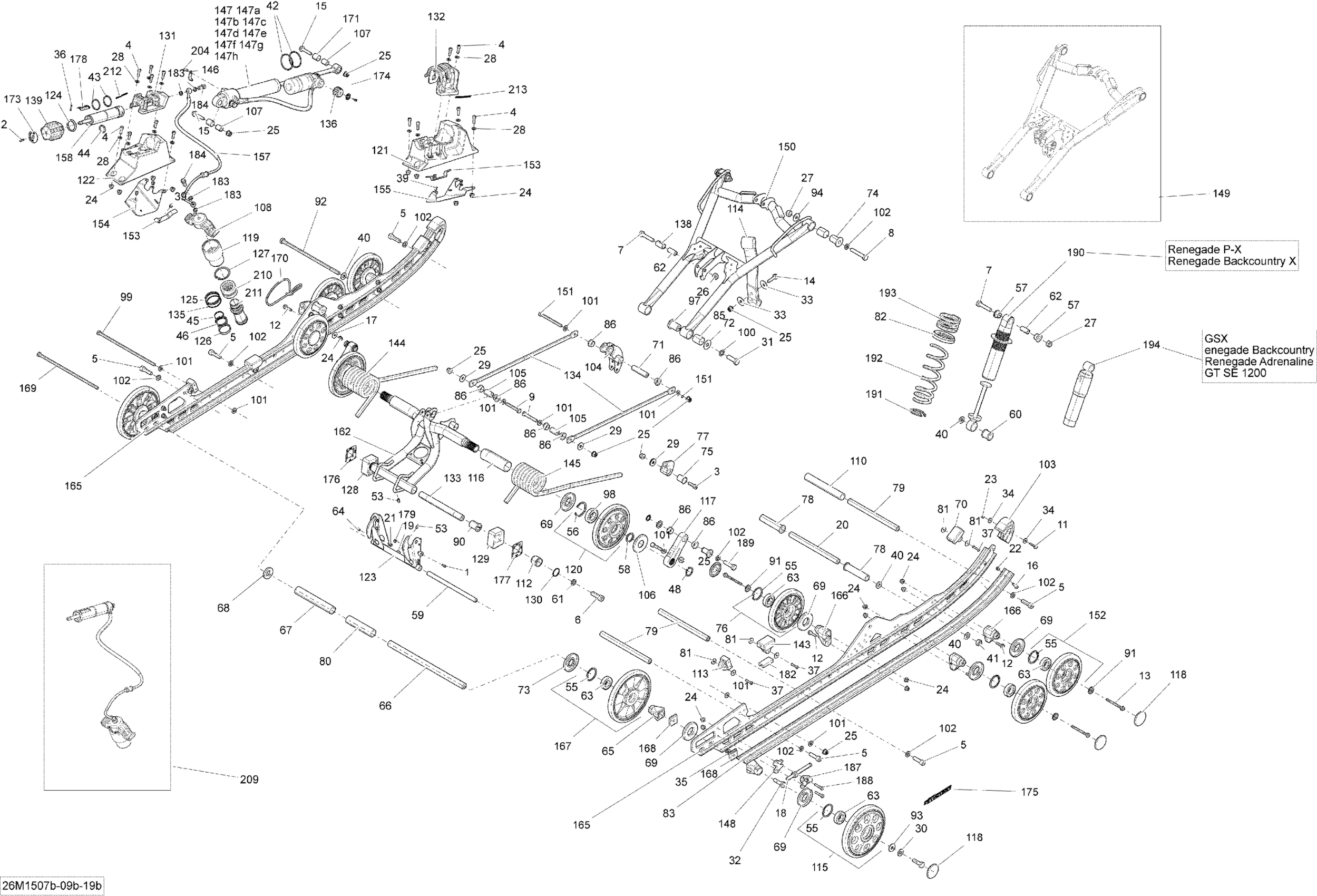

Ski-Doo Renegade Backcountry X 600HOETEC, XS137, 2015 Rear Suspension RMAK_26M1509b Diagram

#

Description
Price

1

Socket Head Screw M4X 10

205041060

$2.00

2

Socket Head Screw M4 X 12

205041254

$1.96

3

Socket Screw M8 X 25

205082554

$2.00

4

Socket Head Screw M6 X 20

205062060

$2.21

5

Socket Head Screw M10 X 35

205503554

$7.09

6

Socket Head Screw M12 X 35

205523554

$4.15

7

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

8

Hex. Cap Screw M10 X 60

207006056

$7.09

9

Hex. Screw M8 X 55

207085544

$1.57

11

Hex. Flange Screw M5 X 25

207652544

$0.48

12

Hex. Flange Screw M6 X 25

207662556

$4.15

13

Hex. Flange Screw M6 X 70

207667056

$4.15

14

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

15

Hex. Flange Screw M8 X 40

207684044

$1.43

16

Phillips Screw M6 X 25

208562531

$2.00

17

Flat Washer

224061201

$1.27

18

Hex Screw M10 x 100

230100054

$6.07

19

Hexagonal Nut M6

232061404

$0.31

20

Pivot Axle

503193435

$37.28

21

Elastic Stop Nut M5

232551414

$0.82

22

Elastic Stop Nut M6

232561434

$1.78

23

Flange Elastic Nut M5

233251434

$1.91

24

Hex. Flange Elastic Nut M6

233261466

$1.91

25

Elastic Flange Nut M8

233281466

$0.96

26

Elastic Locking Nut M10 X 1.5

233601416

$1.63

27

Elastic Locking Nut M10

233601466

$2.00

28

Stainless Flat Washer M6

234061600

$0.28

29

Flat Washer 8 mm

234082410

$1.27

30

Not Available As Spare Parts

XXX

Unavailable

31

Hex. Cap Screw M12 X 35

250000537

$3.01

32

Not Available As Spare Parts

XXX

Unavailable

33

Flat Washer 8 mm

250200128

$2.00

34

Washer

250200140

$0.96

35

Washer-Spring Conical M8

250200159

$2.00

36

Spring Pin

250400014

$3.12

37

Pop Rivet 3/16"

293150013

$1.27

39

Stavex Rivet

293150144

$0.75

40

Flat Washer

250200143

$3.01

41

Flange Elastic Nut M10

233201466

$3.01

42

O-Ring

293250085

$0.96

43

O-Ring

293250269

$2.18

44

O-Ring

293300036

$10.21

45

O-Ring

293300039

$9.03

46

O-Ring

293300068

$6.07

48

Retaining Ring

293370080

$2.06

53

Grease Fitting

408200700

$3.21

55

Retaining Ring

415129371

$8.66

56

Retaining Ring

415129780

$13.46

57

Urethane Bushing

503189117

$6.67

58

Axle Spring

503189146

$7.31

59

Pivot Arm Axle

503189156

$20.12

60

Bushing

503189271

$10.15

61

Washer

503189276

$3.10

62

Bushing | Includes 240d to 240d1

503189282

$4.06

63

Ball Bearing | Package-STD

503190396

$8.18

64

Pop Rivet 3/16"

390402200

$0.30

65

Rear Wheel Spacer

503190428

$5.88

66

REAR WHEEL AXLE - Call your local BRP dealership

503194066

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

Labyrinth Seal

503190434

$4.16

70

Rubber Stopper

503190576

$9.93

71

Axle Bar (Long)

503190643

$14.90

72

Washer

503190656

$2.82

73

Not Available As Spare Parts

XXX

Unavailable

74

Axle

503190698

$17.13

75

Spring Support Kit

861805547

$7.90

76

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

77

Spring Support Kit

861805547

$7.90

78

Center Bushing

503191259

$8.70

79

Axle Strap

503191260

$28.33

80

Rear Spacer

503191263

$14.90

81

Washer

503191273

$1.03

82

Spring Spacer

503191281

$7.43

83

Black, Slider Shoe 137''

503191306

$26.84

85

Bushing

503191554

$5.70

86

Swivel Bushing

503191555

$5.54

90

Cushion

503191640

$5.54

91

Wheel Cup M6

503191820

$4.52

92

Bolt M10 X 251MM

503193227

$15.64

93

Not Available As Spare Parts

XXX

Unavailable

94

Washer

503191926

$1.52

97

Lower Axle

503191966

$14.90

98

Ball Bearing

503193548

$16.39

99

Bolt M8 X 248mm

503192440

$29.07

100

Washer

503192491

$4.25

101

Washer

503192494

$3.01

102

Washer

503192496

$0.73

103

Slide Protector

503192530

$16.39

104

Rocker

503192531

$76.09

105

Axle Bar

503192555

$11.06

106

Labyrinth Ring

503192592

$4.52

107

Axle Shock Absorber

503196509

$9.69

108

Spring Bracket

503192633

$150.72

110

Spacer

503196943

$7.36

112

Guide Block

503192749

$5.67

113

Rubber Stopper

503192750

$12.27

114

Stopper Strap

503192759

$24.60

115

Not Available As Spare Parts

XXX

Unavailable

116

Bushing

503192767

$14.81

117

Link Ass'y | Includes 3100 to 3100f

503195985

$75.34

118

Black, Wheel Cap

503192771

$2.21

119

Cylinder

503192795

$64.90

120

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$44.75

121

RH Support

503192810

$33.55

122

LH Support

503192811

$34.30

123

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$114.90

124

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

125

O-Ring

503192832

$2.18

126

Wear Ring

503192833

$14.24

127

Retaining Ring

503192834

$4.52

128

LH Cam Block

503192918

$12.27

129

RH Cam Block

503192919

$12.27

130

O-Ring

503192921

$2.18

131

LH Half Housing

503192956

$9.93

132

RH Half-Housing

503192957

$11.10

133

Lower Shaft

503192981

$17.13

134

Link Rod

503193005

$26.09

135

O-Ring

503193014

$2.18

136

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

138

Bushing

503193037

$14.90

139

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$24.60

143

Rubber Stopper Ass'y

503195523

$5.09

144

Black Lh Spring

503192105

$75.34

144

Black, LH Spring Square

503193158

$75.34

145

Black, RH Spring Square

503192104

$75.34

145

Black, RH Spring Square

503193159

$75.34

146

Plate

503193166

$14.90

147

Rear Shock Ass'y | Includes 5500 to 5500,009

503193177

$877.49

147a

O-Ring

415038700

$38.78

147b

Bolt

415093810

$14.52

147c

O-Ring

415093804

$4.25

147d

O-Ring

505070400

$4.25

147e

Screw | Not Shown

505070399

$3.88

147f

Air Valve

505070398

$17.13

147g

Piston Ring | Not Shown

415093806

$14.52

147h

O-Ring

415093807

$33.55

148

Spacer

503193250

$13.54

149

Front Arm Ass'y | Included 2000 to 2000g

503194529

$429.82

150

Front Arm Ass'y | Included 2000 to 2000g

503194529

$429.82

151

Screw M8 X 90

503193372

$4.15

152

Black, Wheel Ass'y 147 mm | Included 440 to 440b

503193376

$44.75

153

Retaining Plate

503195712

$17.13

154

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

155

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

157

Connector Hose

503193476

$44.75

158

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$279.82

162

Rear Arm Ass'y | With Quick Adjust System

503193618

$273.10

165

Black, Runner 137"

503193552

$272.36

166

Casted Support

503193894

$12.37

167

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

168

Axle Slider

503194412

$11.10

169

Bolt M8

503194069

$29.07

170

Protector

503194113

$26.09

171

Leg Cushion

505072663

$7.18

173

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

174

Shock Knob Adjustment Decal

516004752

$12.57

175

Runner Decal

516004755

$8.84

176

LH Block Sticker Decal

516004900

$15.64

177

RH Block Sticker Decal

516004901

$15.64

178

Adjustment Decal

516004917

$41.01

179

Flat Washer

517225900

$0.16

182

Reinforcement Stopper

572084800

$5.09

183

Copper Washer

705601628

$4.21

184

Banjo Bolt

705600628

$10.72

187

Tensioner

503192583

$5.67

188

Hex. Cap Screw M6 X 30

207063054

$5.06

189

Cap Screw Hex. M10 X 40

207204056

$7.09

190

Central Shock

503193536

$403.70

191

Spring Stopper

503194270

$16.39

192

Black, Spring (189mm) Long

503193067

$85.79

193

Black, Spring (51mm) Short

503193837

$64.90

194

Central Shock

503193283

$403.70

200

Allen Screw M3 X 0.5 X 10

250000644

$2.00

204

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

209

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$699.97

210

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$699.97

211

Piston

503193779

$126.84

212

Decal

516006369

$12.27

213

Decal

516006369
