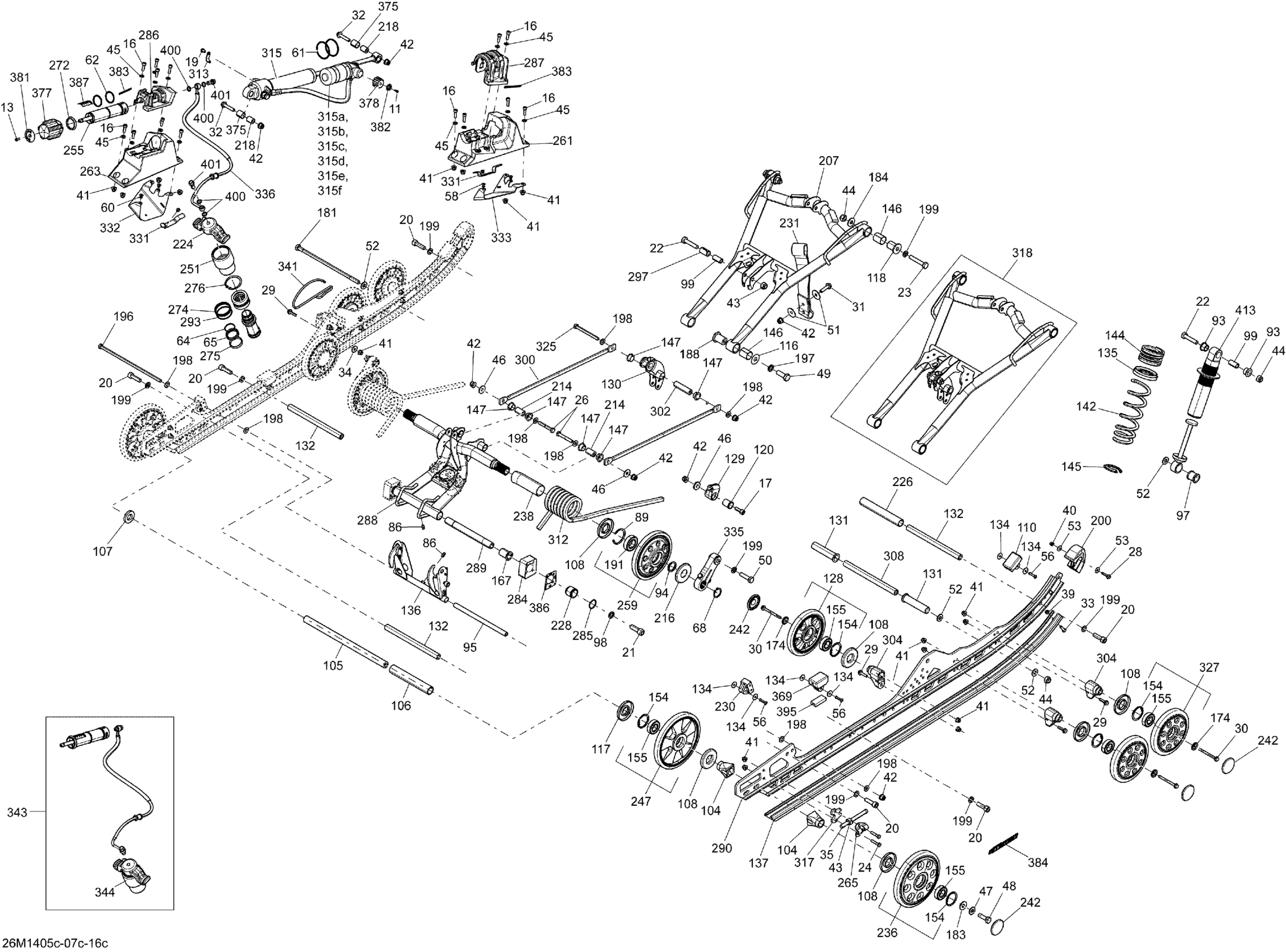

Ski-Doo RENEGADE BACKCOUNTRY X 600HOE XS, 2014 Rear Suspension with adj Kit Diagram

#

Description
Price

11

Allen Screw M3 X 0.5 X 10

250000644

$1.74

13

Socket Head Screw M4 X 12

205041254

$2.02

16

Socket Head Screw M6 X 20

205062060

$1.92

17

Socket Screw M8 X 25

205082554

$1.74

19

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

20

Socket Head Screw M10 X 35

205503554

$6.18

21

Socket Head Screw M12 X 35

205523554

$4.28

22

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

23

Hex. Cap Screw M10 X 60

207006056

$6.18

24

Hex. Cap Screw M6 X 30

207063054

$4.41

26

Hex. Screw M8 X 55

207085544

$1.62

28

Hex. Flange Screw M5 X 25

207652544

$0.42

29

Hex. Flange Screw M6 X 25

207662556

$3.61

30

Hex. Flange Screw M6 X 70

207667056

$3.61

31

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

32

Hex. Flange Screw M8 X 40

207684044

$1.25

33

Phillips Screw M6 X 25

208562531

$1.74

34

Flat Washer

224061201

$1.11

35

Hex Screw M10 x 100

230100054

$5.29

39

Elastic Stop Nut M6

232561414

$1.55

39

Elastic Stop Nut M6

232561414

$1.55

40

Hex. Flange Elastic Nut M5

233251414

$1.66

41

Hex. Flange Elastic Nut M6

233261466

$1.66

42

Elastic Flange Nut M8

233281466

$0.83

43

Elastic Locking Nut M10

233601466

$1.74

44

Elastic Locking Nut M10

233601466

$1.74

45

Stainless Flat Washer M6

234061600

$0.25

46

Flat Washer 8 mm

234082410

$1.11

47

Conical Spring Washer M10

250200141

$2.06

48

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$3.61

49

Hex. Cap Screw M12 X 35

250000537

$2.63

50

Cap Screw Hex. M10 X 40

207204056

$6.18

51

Flat Washer 8 mm

250200128

$1.74

52

Washer

250200138

$2.06

53

Washer

250200140

$0.83

56

Pop Rivet 3/16"

293150013

$1.11

58

Stavex Rivet

293150144

$0.77

60

Stavex Rivet

293150144

$0.77

61

O-Ring

293250085

$0.83

62

O-Ring

293250269

$2.25

64

O-Ring

293300039

$9.31

65

O-Ring

293300068

$5.29

68

Retaining Ring

293370080

$2.12

86

Grease Fitting

408200700

$2.80

89

Retaining Ring

415129780

$13.88

93

Urethane Bushing

503189117

$6.88

94

Axle Spring

503189146

$7.54

95

Pivot Arm Axle

503189156

$20.74

97

Bushing

503189271

$10.46

98

Washer

503189276

$3.20

99

Bushing | Includes 240d to 240d1

503189282

$4.18

104

Rear Wheel Spacer

503190428

$6.06

105

Rear Axle

503190429

$59.97

106

Spacer

503196317

$15.35

107

Washer

503190432

$12.52

108

Labyrinth Seal

503190434

$4.29

110

Rubber Stopper

503190576

$10.23

116

Washer

503190656

$2.91

117

Labyrinth Seal

503190682

$5.85

118

Axle

503190698

$17.66

120

Spring Support Kit

861805547

$8.14

128

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$46.12

129

Spring Support Kit

861805547

$8.14

130

Rocker

503192531

$78.43

131

Center Bushing

503191259

$8.97

132

Axle Strap

503191260

$29.20

134

Washer

503191273

$1.06

135

Spring Spacer

503191281

$7.66

136

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

137

Black, Slider Shoe 137''

503191306

$27.66

142

Black, Spring (189mm) Long

503193067

$88.43

142

Deep Black, Spring (189mm) Long

503193160

$88.43

144

Black Spring (51mm) Short

503193480

$88.43

145

Spring Stopper

503194270

$16.89

146

Bushing

503191554

$5.88

147

Swivel Bushing

503191555

$5.71

154

Retaining Ring

415129371

$8.92

155

Ball Bearing | Package-STD

503190396

$7.12

167

Cushion

503191640

$5.71

174

Wheel Cup M6

503191820

$4.66

181

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$14.74

183

Washer

503191910

$2.25

184

Washer

503191926

$1.57

188

Lower Axle

503191966

Unavailable

191

Ball Bearing

503193548

$16.89

196

Bolt M8 X 248mm

503192440

$29.97

197

Washer

503192491

$4.38

198

Washer

503192494

$3.11

199

Washer

503192496

$0.75

200

Slide Protector

503192530

$16.89

207

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

214

Axle Bar

503192555

$11.40

216

Labyrinth Ring

503192592

$4.66

218

Axle Shock Absorber

503196509

$11.98

224

Spring Bracket

503192633

$155.35

226

Spacer

503196943

$7.58

228

Guide Block

503192749

$5.85

230

Rubber Stopper

503192750

$12.65

231

Stopper Strap

503192759

$25.35

236

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$49.97

238

Bushing

503192767

$15.26

242

Black, Wheel Cap

503192771

$2.28

247

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

251

Cylinder

503192795

$66.89

255

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$288.43

259

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

261

RH Support

503192810

$34.58

263

LH Support

503192811

$35.35

265

Tensioner

503192583

$5.85

272

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

274

O-Ring

503192832

$2.25

275

Wear Ring

503192833

$15.35

276

Retaining Ring

503192834

$4.66

284

LH Cam Block

503192918

$12.65

284

RH Cam Block

503192919

$12.65

285

O-Ring

503192921

$2.25

286

LH Half Housing

503192956

$10.23

287

RH Half-Housing

503192957

$11.45

288

Rear Arm Ass'y | With Quick Adjust System

503193618

$286.12

289

Lower Shaft

503192981

$17.66

290

Black, Runner 137"

503193552

$286.12

290

Can-Am Red, Runner 137" | Includes 10a to 10a1

503193554

$286.12

293

O-Ring

503193014

$2.25

297

Bushing

503193037

$15.35

300

Link Rod

503193005

$27.66

302

Axle Bar (Long)

503190643

$15.35

304

Casted Support

503193894

$12.75

308

Pivot Axle

503193435

$38.43

312

Black, LH Spring Square

503193158

$77.66

312

Black, RH Spring Square

503193159

$77.66

313

Plate

503193166

$15.35

315

Rear Shock Ass'y | Includes 5500 to 5500,009

503193177

$877.49

315a

O-Ring

415093804

$4.38

315b

O-Ring

505070400

$4.38

315c

Screw | Not Shown

505070399

$4.00

315d

Air Valve

505070398

$17.66

315e

Piston Ring | Not Shown

415093806

$14.97

315f

O-Ring

415093807

$34.58

317

Spacer

503193250

$13.95

318

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

325

Screw M8 X 90

503193372

$4.28

327

Black, Wheel Ass'y 147 mm | Included 440 to 440b

503193376

$46.12

331

Retaining Plate

503195712

$17.66

332

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

333

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

335

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

336

Connector Hose

503193476

$46.12

341

Protector

503194113

$26.89

343

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

344

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

369

Rubber Stopper Ass'y

503195523

$5.25

375

Leg Cushion

505072663

$7.40

377

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$25.35

378

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

381

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

382

Shock Knob Adjustment Decal

516004752

$12.95

383

Decal

516006369

$12.65

384

Runner Decal

516004755

$9.11

386

LH Block Sticker Decal

516004900

$16.12

386

RH Block Sticker Decal

516004901

$16.12

387

Adjustment Decal

516004917

$42.28

395

Reinforcement Stopper

572084800

$5.25

400

Copper Washer

705601628

$4.34

401

Banjo Bolt

705600628

$11.05

413

Central Shock

503193283

$416.12
