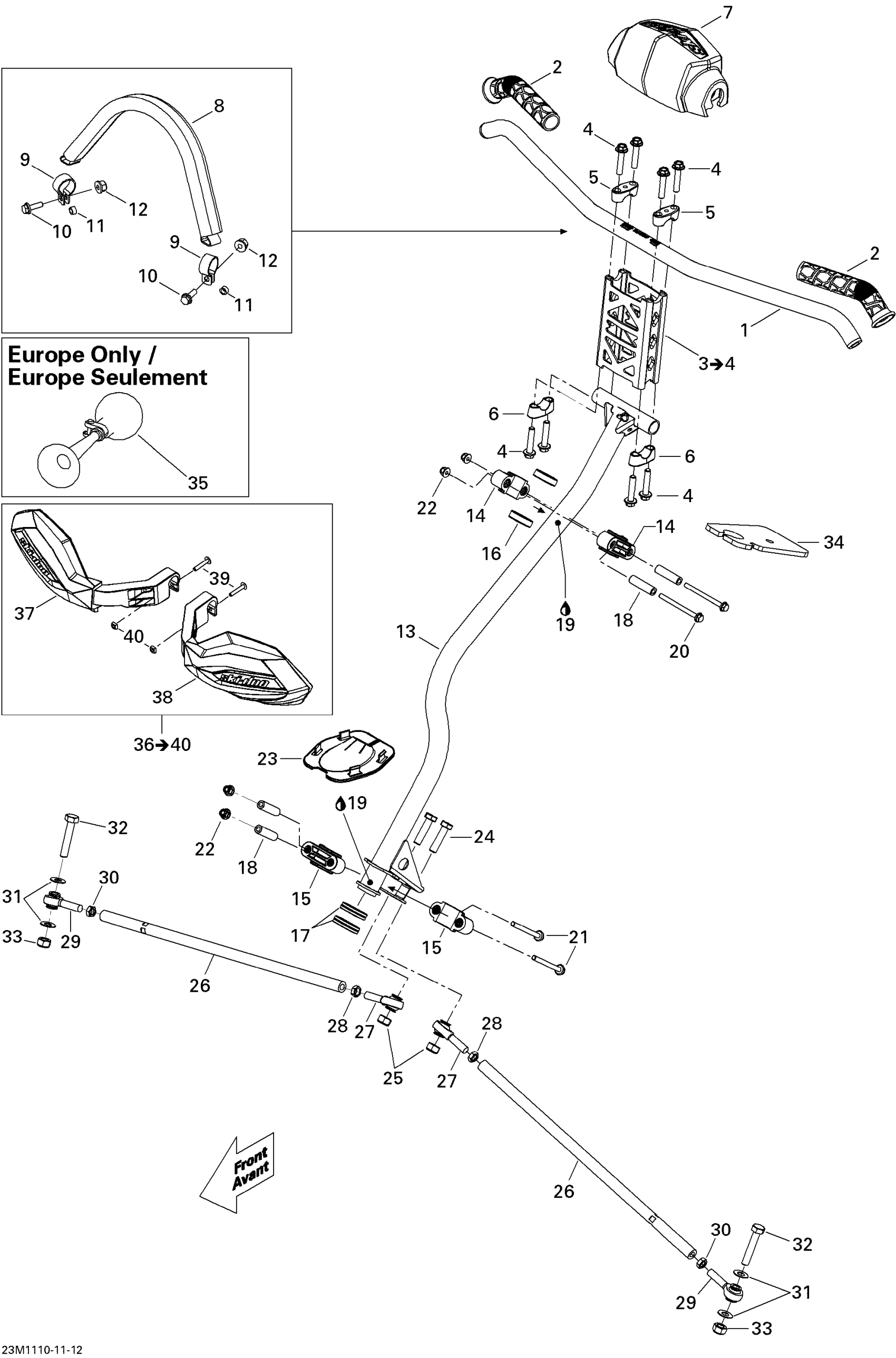

Ski-Doo Renegade BackCountry, BackCountry X 800R ETEC, 2011 07- Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

2

Grip

506152486

$16.34

3

Riser Kit

860200820

$84.99

4

Hex. Flange Screw M8 x 40

250000285

$0.82

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

7

Steering Pad

506152192

$58.99

8

Strap Ass'y | Package XMR

506152115

$44.49

9

Black Support Plate

506152536

$9.19

10

Hex. Flange Screw M6 X 20

207662084

$1.69

11

Bushing | Package XMR

506152156

$5.61

12

Hex. Flange Elastic Nut M6

233261494

$1.58

13

Steering Column

506152962

$199.99

14

Upper Half-Housing

506152508

$9.23

15

Lower Half-Housing

506152217

$7.62

16

Upper Anti-Vibration Gasket

506152509

$4.79

17

Lower Vibration Ring

506152518

$4.79

18

Housing Bushing

506152297

$12.99

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$4.44

21

Hex. Flange Screw M6 X 70

207667044

$0.85

22

Elastic Flange Nut M6 X 1.0

233261416

$2.11

23

Plate

506152163

$12.99

24

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

25

Elastic Stop Nut M10

232500416

$1.90

26

Tie-Rod

506152498

$38.99

27

LH Thread Ball Joint

506152081

$41.49

28

LH Threaded Hex. Jam Nut M10

250100016

$0.74

29

RH Threaded Ball Joint

506152019

$41.49

30

RH Threaded Hex. Jam Nut M10

732610010

$0.74

31

Washer

506152194

$4.55

32

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

33

Elastic Stop Nut M10

232500416

$1.90

34

Bushing

506152521

$15.79

35

Horn

549011291

$35.99

36

Grey Wind Deflector Kit

860200712

$95.99

36

Wind Deflector Kit, Red | Includes 38 to 42

860200709

$95.99

37

Grey Wind Deflector Kit

860200712

$95.99

37

Wind Deflector Kit, Red | Includes 38 to 42

860200709

$95.99

38

Grey Wind Deflector Kit

860200712

$95.99

38

Wind Deflector Kit, Red | Includes 38 to 42

860200709

$95.99

39

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

250000501

Unavailable

40

SQUARE NUT M6 - Call your local BRP dealership

250000498

$5.09
