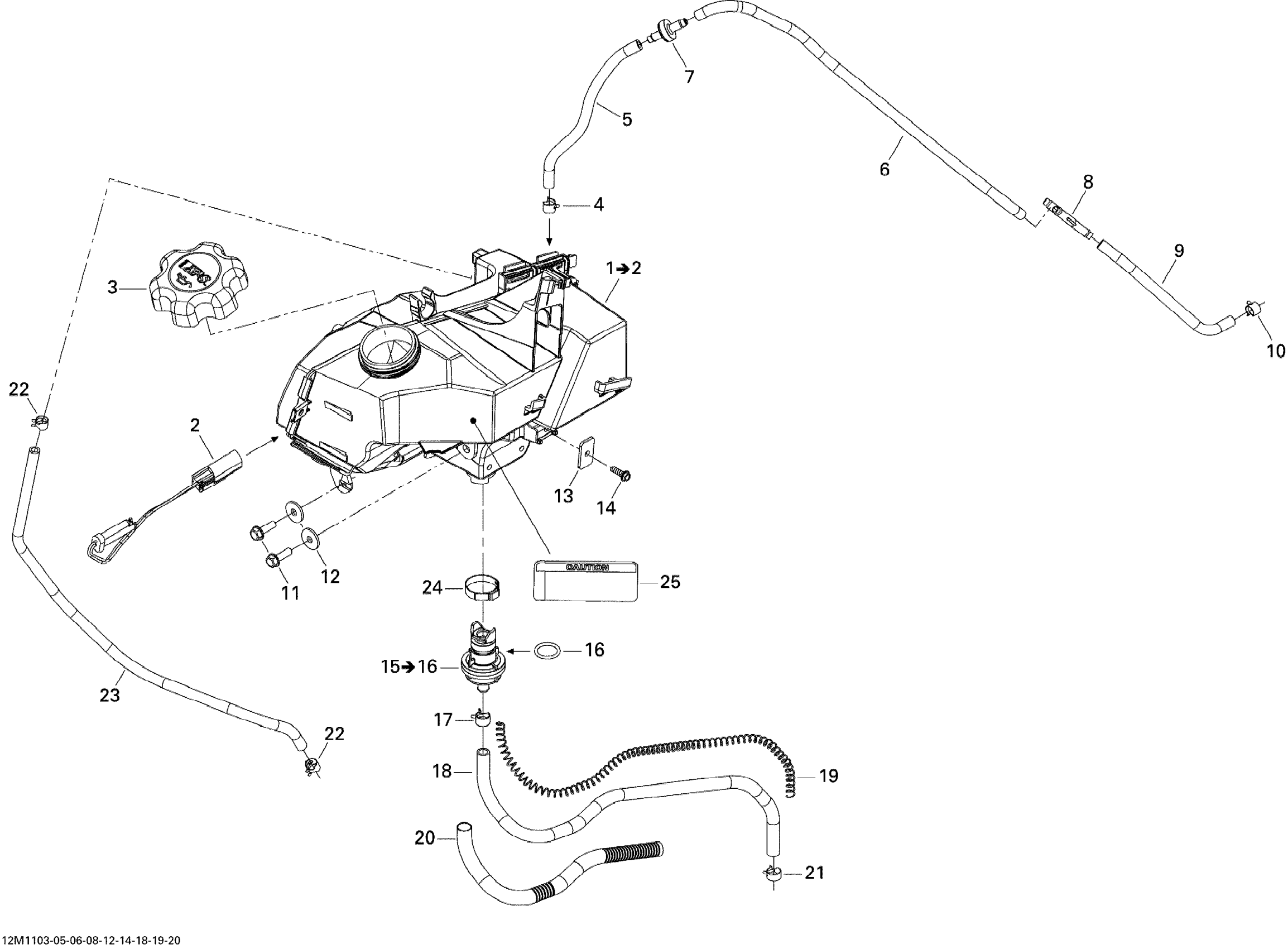

Ski-Doo Renegade BackCountry 800R PTEK, 2011 Oil System Diagram

#

Description
Price

1

Oil Tank | Includes 1 to 2

519000257

Unavailable

2

Oil Level Sensor

515176508

$29.07

3

CAP - Call your local BRP dealership

519000194

Unavailable

4

Spring Clamp

414554800

$0.81

5

Polyurethane Hose 10000Mm Long

219704410

$52.96

6

Polyurethane Hose 10000Mm Long

219704410

$52.96

7

Check Valve

275500398

$9.84

8

Y-Fitting

293710059

$9.40

9

Polyurethane Hose 10000Mm Long

219704410

$52.96

10

Spring Clamp

414554800

$0.81

11

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.00

12

Flat Washer

224061201

$1.27

13

Bracket

519000179

$8.31

14

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

15

Oil Filter

519000242

$12.79

16

Oil Filter

519000242

$12.79

17

Spring Clamp

414415200

$0.81

18

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

19

Spring

519000196

$8.42

20

Tubing 10 MM 1000MM Long

219704407

$2.52

21

Spring Clamp

414420700

$0.66

22

Spring Clamp

414554800

$0.81

23

Polyurethane Hose 10000Mm Long

219704410

$52.96

24

Crimp Clamp

293650099

$4.07

25

NOTICE DECAL, OIL - Call your local BRP dealership

516005528

Unavailable
