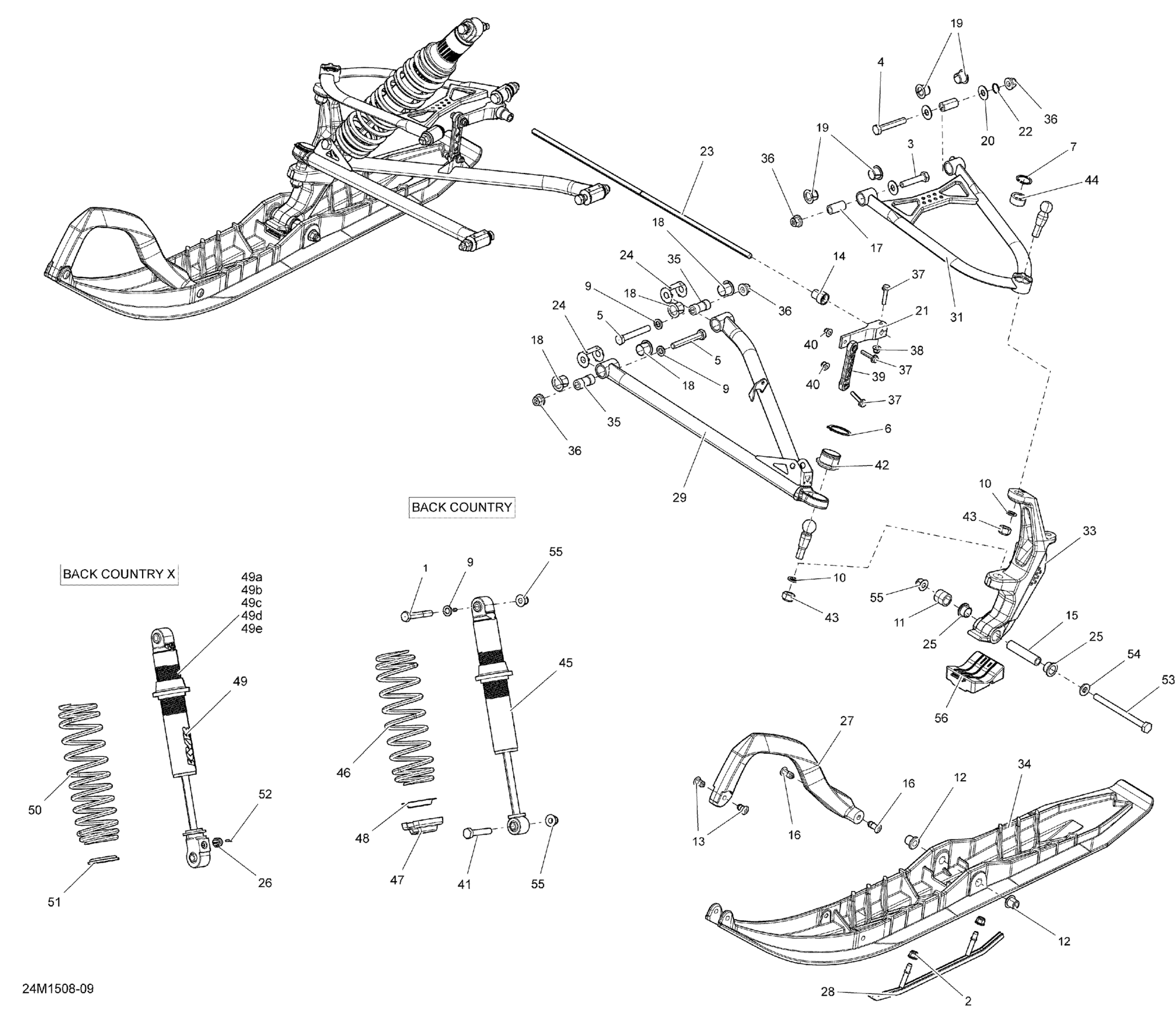

Ski-Doo Renegade Backcountry 600HOETEC, XS137, 2015 Front Suspension And Ski _24M1508 Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

2

Hex. Flange Elastic Nut M8

233281414

$1.14

3

Screw Hex. M10 X 50

250001022

$1.42

4

Screw Hex. M10 X 60

250001023

$1.74

5

Screw Hex. M10 X 70

250001024

$1.74

6

Circlip

293370035

$2.55

7

Circlip

293370070

$7.02

9

Washer

503189564

$0.72

10

Washer

503192491

$4.38

11

Spacer

503193651

$7.58

12

Ski Bushing

505071781

$15.35

13

Retainer 17mm long

505071812

$4.43

14

Bushing

505072064

$2.22

15

Spacer

506133300

$19.97

16

Retainer 23mm Long

505072133

$5.03

17

Sleeve

505072143

$8.62

18

Bushing

505072208

$3.14

19

Bushing

505072250

$3.14

20

Washer

505072392

$4.65

21

Stabilisator Lever

505072394

$16.12

22

O-Ring

505072448

Unavailable

23

Stabilisator

505072602

$71.99

24

Wear Plate

505072634

$4.45

25

Leg Bushing

505072690

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Orange, Handle | Model N°: MCGB,MBGC

505073651

$34.58

27

Black, Handle

505072976

$35.35

28

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

29

Black Epoxy, LH Lower Arm

505073583

$193.82

29

Black Epoxy, RH Lower Arm

505073584

$193.82

31

Black Epoxy, LH Upper Arm

505073588

$143.05

32

Black Epoxy, RH Upper Arm

505073589

$143.05

33

Black, LH Ski Leg | Package SE

505073630

$233.05

33

Black, Ski Leg RH | Package SE

505073631

$233.05

34

Black, Ski

505073227

$175.35

35

Sleeve

505072209

$14.38

36

Hex. Flange Elastic Nut M10

250100165

$0.70

37

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

38

Hex. Flange Elastic Nut M6

233261466

$1.66

39

Sway Bar Double Joint Link

505072204

$19.20

40

Hex. Flange Elastic Nut M6

233261466

$1.66

41

Hex Screw M10 X 1.5 X 55

207005554

$6.18

42

Ball Joint

505073636

$49.97

43

Hex Elastic Nut M12 X 1.25

232521464

$1.74

44

Upper Ball Joint

505072913

$69.97

45

Front Shock | Europe

505073699

$416.12

46

Deep Black, Spring | North America Models

505072526

$66.89

47

Spring Stopper

706200881

$10.30

48

Cap

706200785

$4.42

49

Not Available As Spare Parts

XXX

Unavailable

49a

Not Available As Spare Parts

XXX

Unavailable

49b

Not Available As Spare Parts

XXX

Unavailable

49c

Not Available As Spare Parts

XXX

Unavailable

49d

Not Available As Spare Parts

XXX

Unavailable

49e

Not Available As Spare Parts

XXX

Unavailable

50

Deep Black, Spring | Package Backcountry X

505072846

$59.97

51

Spring Stopper

503194270

$16.89

52

Allen Screw M3 X 0.5 X 10

250000644

$1.74

53

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

54

Washer

503192496

$0.75

55

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

56

Ski Stopper

505072594

$17.66
