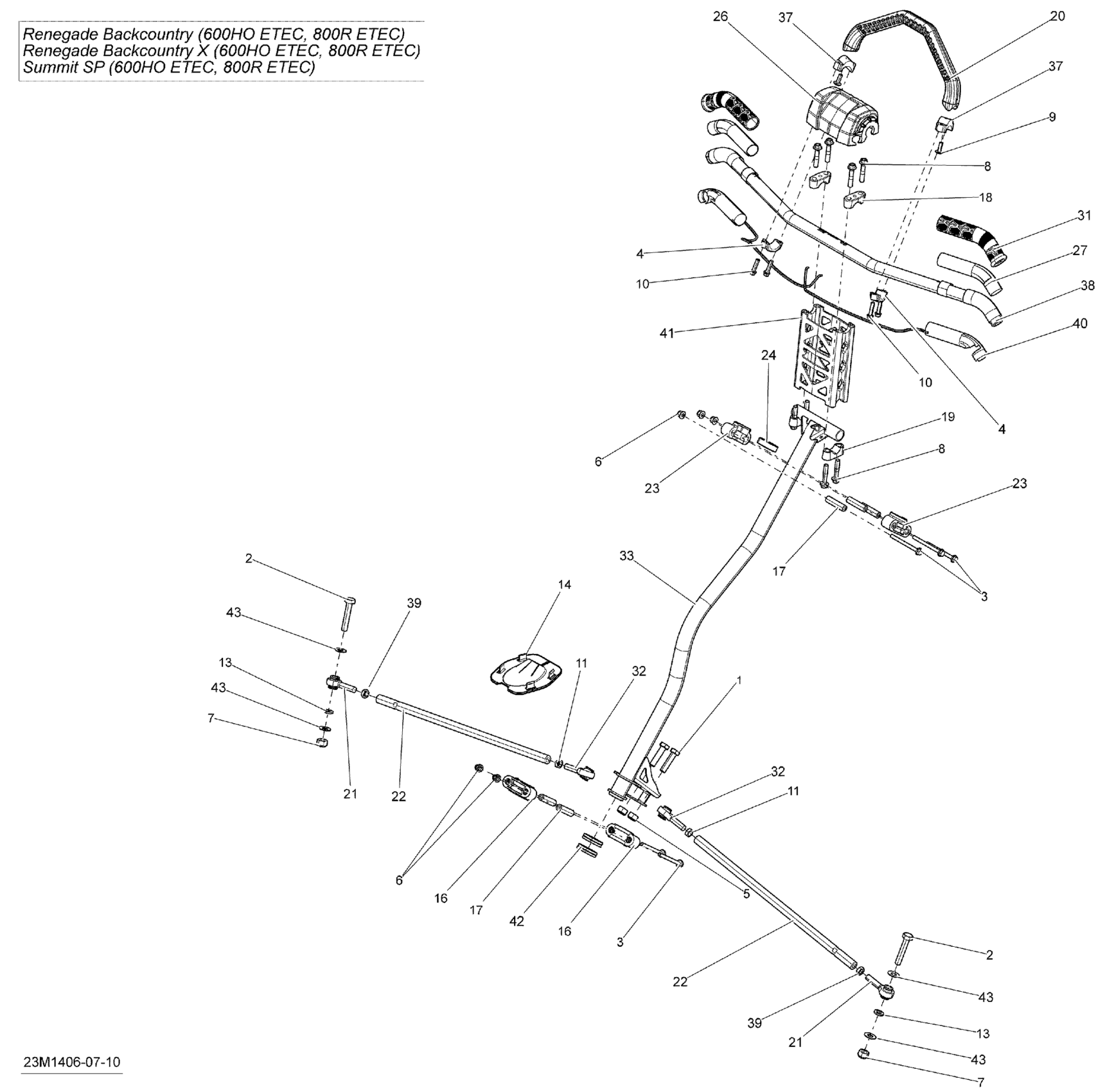

Ski-Doo RENEGADE BACKCOUNTRY 600HOE XS, 2014 Steering Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

2

Hex Screw M10 X 1.5 X 55

207005554

$7.09

3

Hex. Flange Screw M6 X 70

207667056

$4.15

4

Clamps | Includes 75a to 75b

719000049

$22.36

5

Elastic Stop Nut M10

232500416

$1.79

6

Elastic Flange Nut M6 X 1.0

233261416

$2.00

7

Elastic Locking Nut M10

233601466

$2.00

8

Hex. Flange Screw M8 X 40

250000352

$3.16

9

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

10

Hex. Flange Screw M6 X 25

250000447

$2.00

11

LH Threaded Hex. Jam Nut M10

250100016

$0.70

13

Not Available As Spare Parts

XXX

Unavailable

14

Plate

506152163

$9.93

16

Lower Half-Housing

506152217

$5.40

17

Housing Bushing

506152297

$9.93

18

Steering Support | Includes 40 to 40a

506152751

$11.58

19

Steering Support | Includes 40 to 40a

506152751

$11.58

20

Moulding Strap

506152460

$69.37

21

RH Threaded Ball Joint

506152019

$38.78

22

Tie-Rod

506152498

$35.79

23

Upper Half-Housing

506152508

$7.18

24

Upper Anti-Vibration Gasket

506152509

$4.39

26

Deep Black, Steering Pad

506152541

$41.01

27

Thermal Insulation

506153176

$5.54

31

Grip 148mm

506152560

$15.64

32

LH Thread Ball Joint

506152081

$38.78

33

Steering Column

506152962

$183.55

37

Black Support Plate

506152703

$13.54

38

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

39

RH Threaded Hex. Jam Nut M10

732610010

$0.70

40

Heating Element 32 Watt 3 Wires

506152798

$47.73

41

Black Handlebar Extension

506152617

$137.28

42

Lower Vibration Ring

506152518

$4.39

43

Washer

506152582

$4.28
