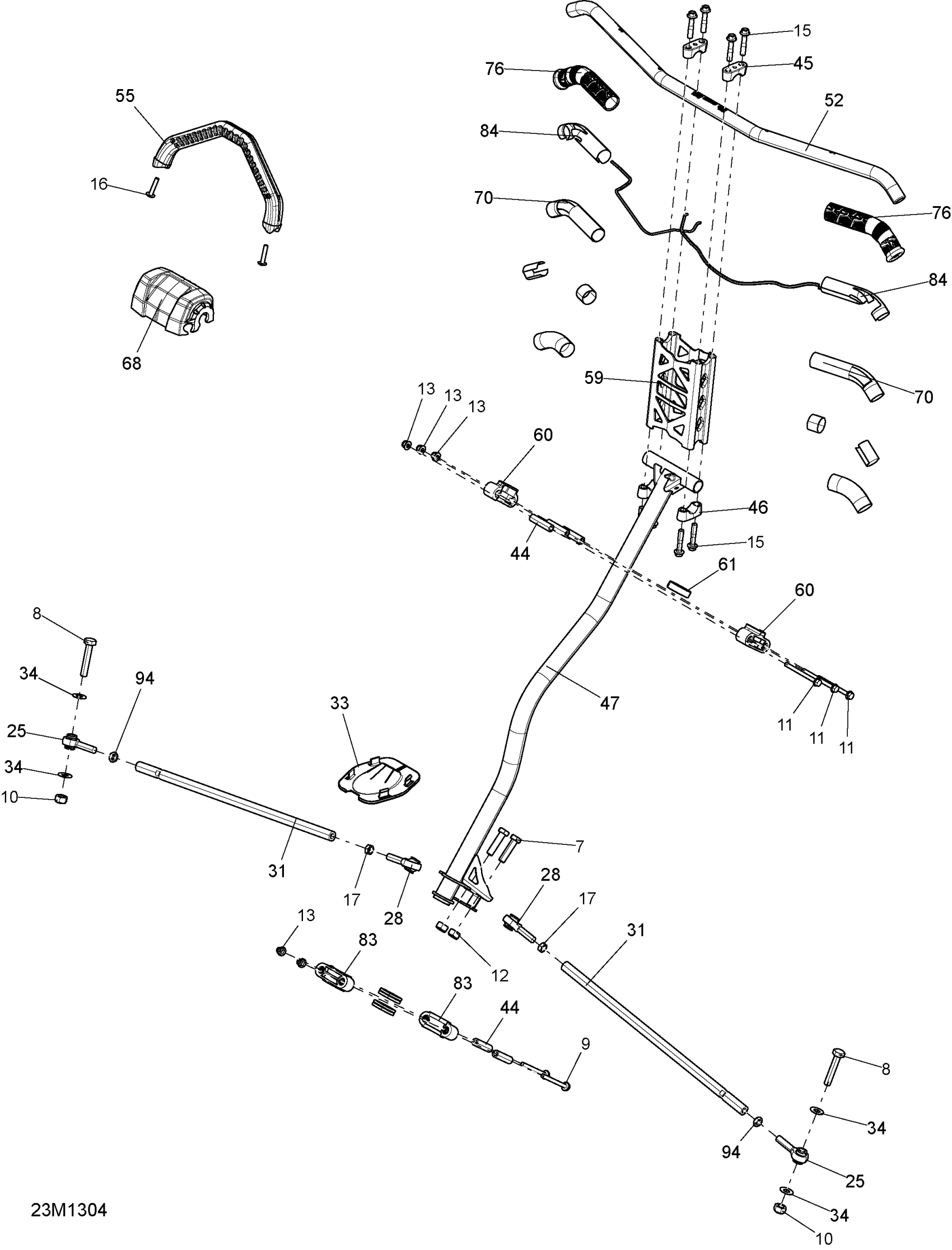

Ski-Doo RENEGADE BACK COUNTRY X 600HOE, 2013 Steering Diagram

#

Description
Price

7

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

8

Hex Screw M10 X 1.5 X 55

207005554

$6.18

9

Hex. Flange Screw M6 X 70

207667044

$0.70

10

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

11

Hex. Flange Screw M6 X 70

207667056

$3.61

12

Elastic Stop Nut M10

232500416

$1.56

13

Elastic Flange Nut M6 X 1.0

233261416

$1.74

15

Hex. Flange Screw M8 X 40

250000352

$3.26

16

Torx Truss Screw M6 X 30

250000843

$1.74

17

LH Threaded Hex. Jam Nut M10

250100016

$0.72

25

RH Threaded Ball Joint

506152019

$39.97

28

LH Thread Ball Joint

506152081

$39.97

31

Tie-Rod

506152498

$36.89

33

Plate

506152163

$10.23

34

Washer

506152582

$4.42

40

Lower Vibration Ring

506152518

$4.52

44

Housing Bushing

506152297

$10.23

45

Steering Support | Includes 40 to 40a

506152751

$10.09

46

Steering Support | Includes 40 to 40a

506152751

$10.09

47

Steering Column

506152962

$189.20

52

Handle Bar (Aluminium) | REN BCX

506152459

Unavailable

55

Moulding Strap

506152460

$69.99

59

Black Handlebar Extension

506152617

$141.51

60

Upper Half-Housing

506152508

$7.40

61

Upper Anti-Vibration Gasket

506152509

$4.52

68

Deep Black, Steering Pad

506152541

$42.28

70

Thermal Insulation

506153176

$5.71

76

Grip 148mm

506152560

$16.12

83

Lower Half-Housing

506152217

$5.57

84

Heating Element 32 Watt 3 Wires

506152798

$49.20

94

RH Threaded Hex. Jam Nut M10

732610010

$0.72
