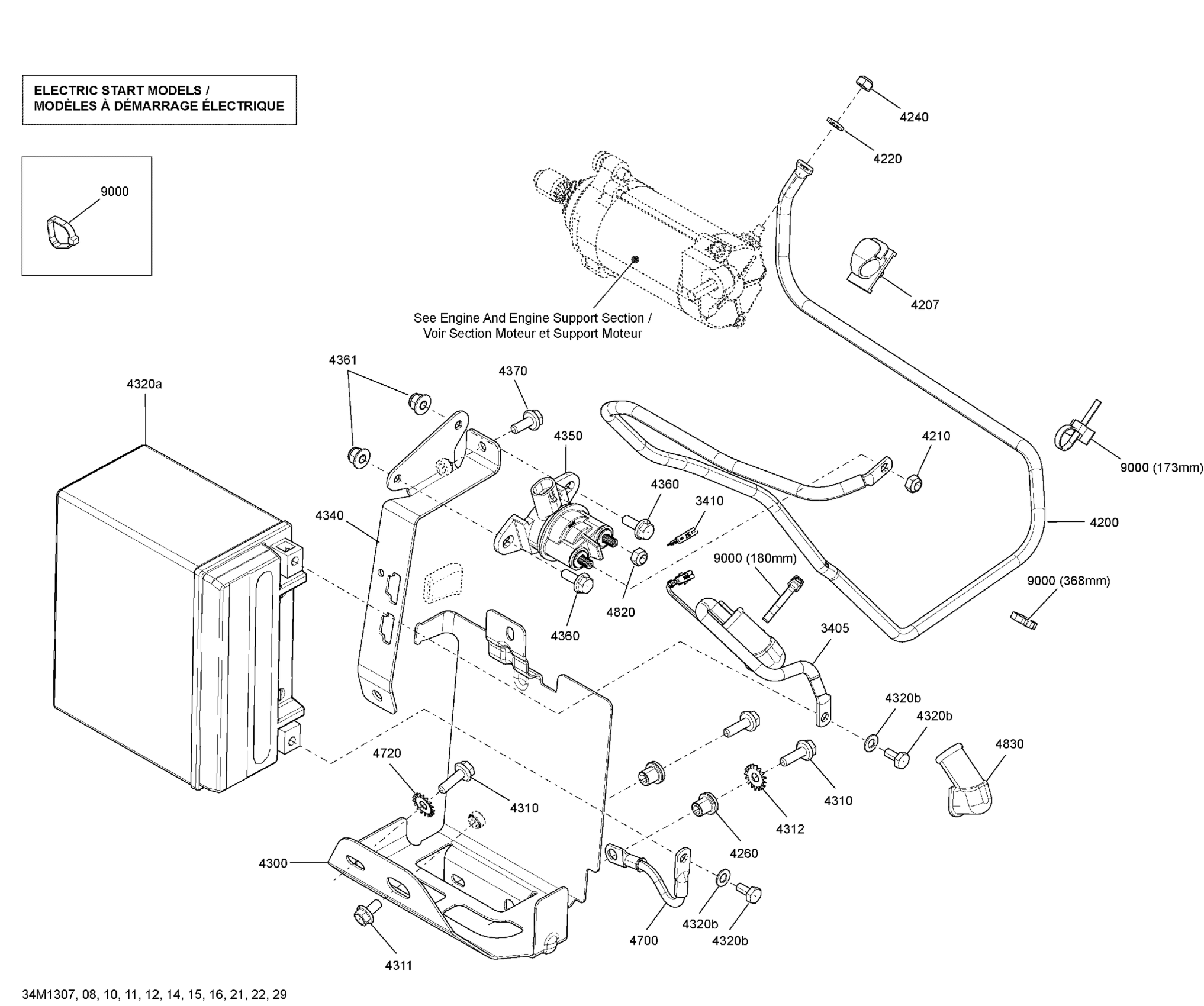

Ski-Doo RENEGADE BACK COUNTRY 600HOE, 2013 10- Battery And Starter Diagram

BATTERY FUSE WIRE - Call your local BRP dealership | 800RE Electric Starter

515177207

Unavailable

Fuse Battery Wire

515177576

$16.63

Fuse, 25 Amperes

278001443

$3.28

Battery/Starter Wire

515177208

$30.99

Clip

515177066

$4.29

Elastic Stop Nut M6

232561414

$0.55

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561414

$0.55

Insert

293450275

$12.99

Insert

293450275

$12.99

Battery Support

515177264

$31.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Screw M6 X 12

207661244

$2.11

Lock Washer Serrated M6

250200041

$1.15

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

Battery Bolt Kit

250000282

$7.29

Battery Strip

515177266

$19.99

Starter Relay

278003012

$42.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 16

207661644

$0.74

Ground Wire

515176358

$27.99

Lock Washer Serrated M6

250200041

$1.15

Elastic Stop Nut M6

232561414

$0.55

Protector Cap

710000495

$10.99

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Tie Wrap 368 mm

293750008

$1.04

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie-Rap 173 mm

293750009

$1.04
