Description

Price

7

Hex Screw M10 X 1.5 X 55

207005554

$7.51

8

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

9

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

12

Hex. Flange Elastic Nut M6

233261466

$2.00

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Washer

503192491

$4.54

15

Screw Hex. M10 X 50

250001022

$1.69

16

Screw Hex. M10 X 60

250001023

$2.11

17

Screw Hex. M10 X 70

250001024

$2.11

18

Hex. Flange Elastic Nut M10

250100165

$0.85

19

Hex Elastic Nut M12 X 1.25

232521464

$2.11

20

Circlip

293370035

$2.64

21

Circlip

293370070

$8.99

37

Spring Stopper

706200881

$12.99

38

Cap

706200785

$4.69

40

Washer

503189564

$0.74

46

Ski Stopper

505072594

$18.49

47

Ski Bushing

505071781

$16.18

48

Retainer 17mm long

505071812

$5.95

50

YELLOW SPRING - Call your local BRP dealership | REN BC

505072233

Unavailable

54

Black, RH Lower Arm

505072497

$204.99

54

Black, LH Lower Arm

505072498

$204.99

65

Spacer

505071999

$14.99

66

Bushing

505072064

$2.32

68

Spacer

506133300

$23.99

69

Retainer 23mm Long

505072133

$6.78

71

Sleeve

505072143

$9.00

73

Bushing

505072208

$3.28

75

Bushing

505072250

$3.28

76

Ball Joint

505073636

$51.99

82

Washer

505072392

$4.76

83

Sleeve

505072209

$17.84

86

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

88

O-Ring

505072448

$2.32

91

Stabilisator

505072602

$68.99

93

Wear Plate

505072634

$6.29

94

Leg Bushing

505072690

$12.49

96

Upper Ball Joint

505072913

$72.99

100

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$179.99

101

Yellow Handle

505073107

$35.99

102

BLACK LH SKI LEG - Call your local BRP dealership | RENEGADE

505073177

Unavailable

102

BLACK RH SKI LEG - Call your local BRP dealership | RENEGADE

505073178

Unavailable

104

LH Upper Arm 39"

505073468

$154.99

104

RH UPPER ARM - Call your local BRP dealership

505073076

Unavailable

110

Sway Bar Double Joint Link

505072204

$21.99

111

Stabilisator Lever

505072394

$18.73

121

Washer

503192496

$0.77

125

Front Shock | Model-Europe

505073237

$434.49

125a

O-Ring

505070400

$4.54

125b

Screw | Not Shown

505070399

$4.12

125c

Air Valve

505070398

$20.99

125d

Piston Ring

503189308

$79.49

125e

O-Ring

414888312

$17.29

125f

Not Available As Spare Part - Friction Washer

Unavailable

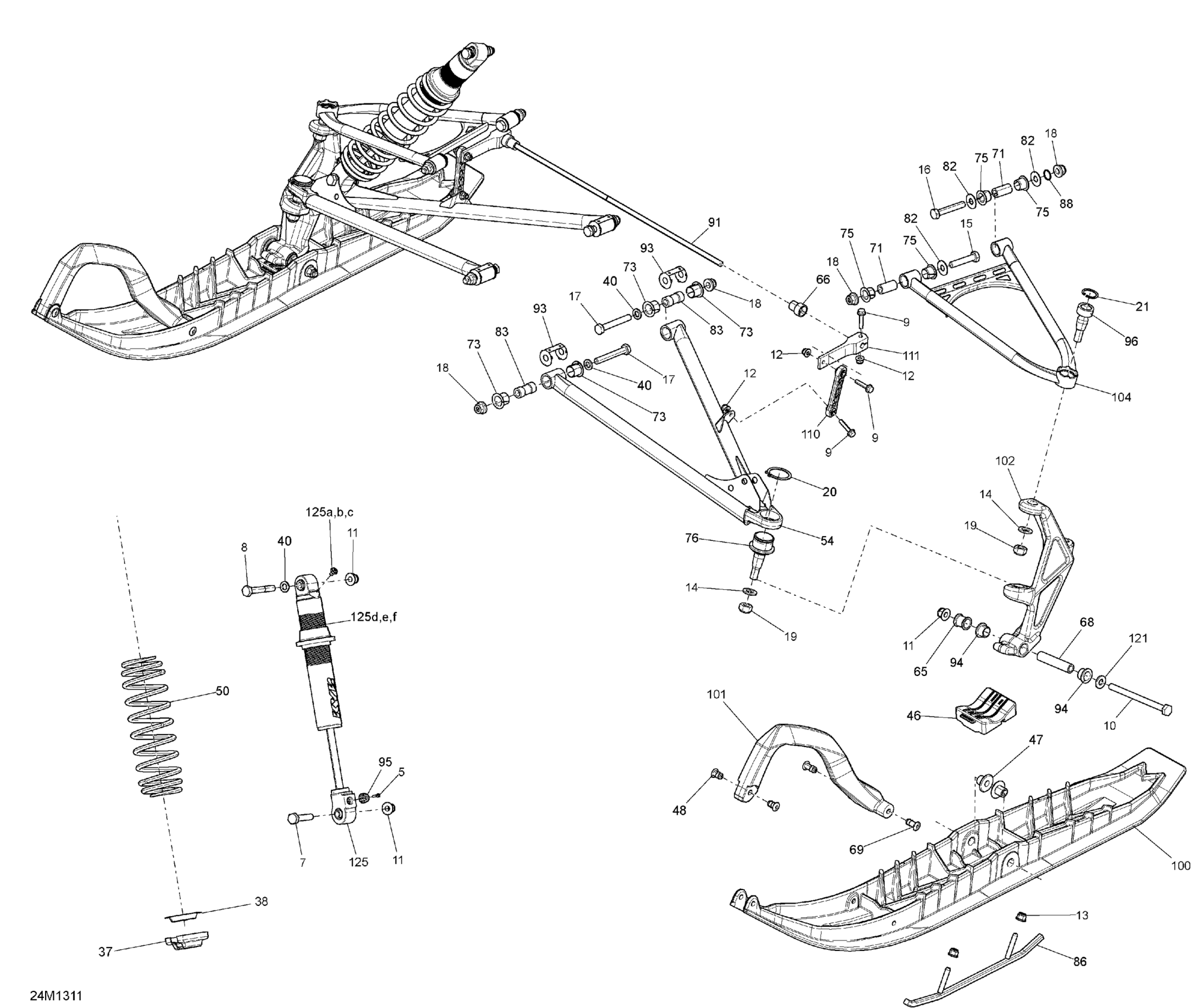

Ski-Doo RENEGADE BACK COUNTRY 600HOE, 2013 07- Front Suspension And Ski Diagram
