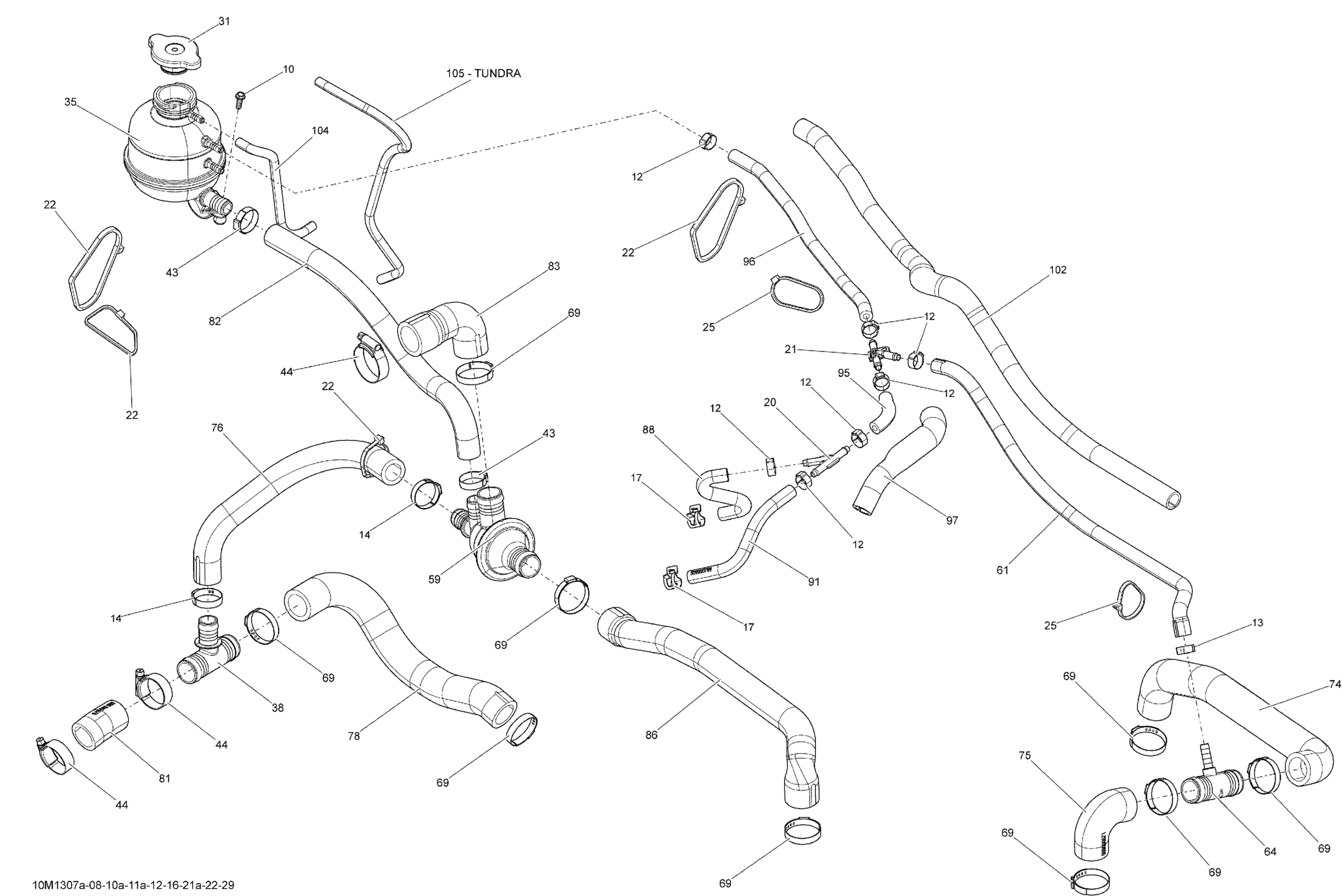

Ski-Doo RENEGADE BACK COUNTRY 600HOE, 2013 Cooling System 600HOETEC Diagram

#

Description
Price

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

12

Oetiker Clamp

293650046

$2.33

13

Crimp Clamp, 15.3-706R

293650047

$2.64

14

Crimp Clamp

293650099

$4.60

17

Spring Clamp

293650210

$5.22

20

Y-Fitting

293710059

$8.19

21

Y-Fitting

293710140

$7.31

22

Tie Wrap 368 mm

293750008

$0.85

25

Tie-Rap 180 mm

414115200

$0.09

31

Radiator Pressure Cap

509000180

$11.69

35

Coolant Tank

509000368

$86.89

38

T-Fitting

509000372

$7.87

43

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

44

Aba Gear Clamp, 26-38 MM

509000443

$5.68

59

Thermostat Housing

509000499

$39.97

61

Bleeder Hose

509000502

$23.82

64

T-Fitting

509000510

$11.52

69

Oetiker Gear Clamp, 36.5-706R

509000529

Unavailable

74

Radiator Hose

509000670

$34.58

75

Radiator Hose This part replaces 509000671.

509001066

$18.43

76

Bypass Hose

509000672

$24.58

78

Radiator Hose

509000673

$22.28

81

Engine Inlet Hose This part replaces 509000675.

509001067

$16.89

82

Filling Hose

509000676

$23.82

83

Engine Outlet Hose

509000678

$18.43

86

Thermostat Outlet Hose

509000679

$25.35

88

Bleeder Hose

509000768

$9.86

91

Bleeder Hose

509000769

$10.78

95

Was 415129508 Bleeder Hose

219704416

$11.83

96

Was 415129508 Bleeder Hose

219704416

$11.83

97

Protector Tube, 16 mm

513033231

$11.12

102

Tubing 16 Mm 1000Mm Long

219704408

$6.23

104

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

105

Not Available As Spare Parts

XXX

Unavailable
