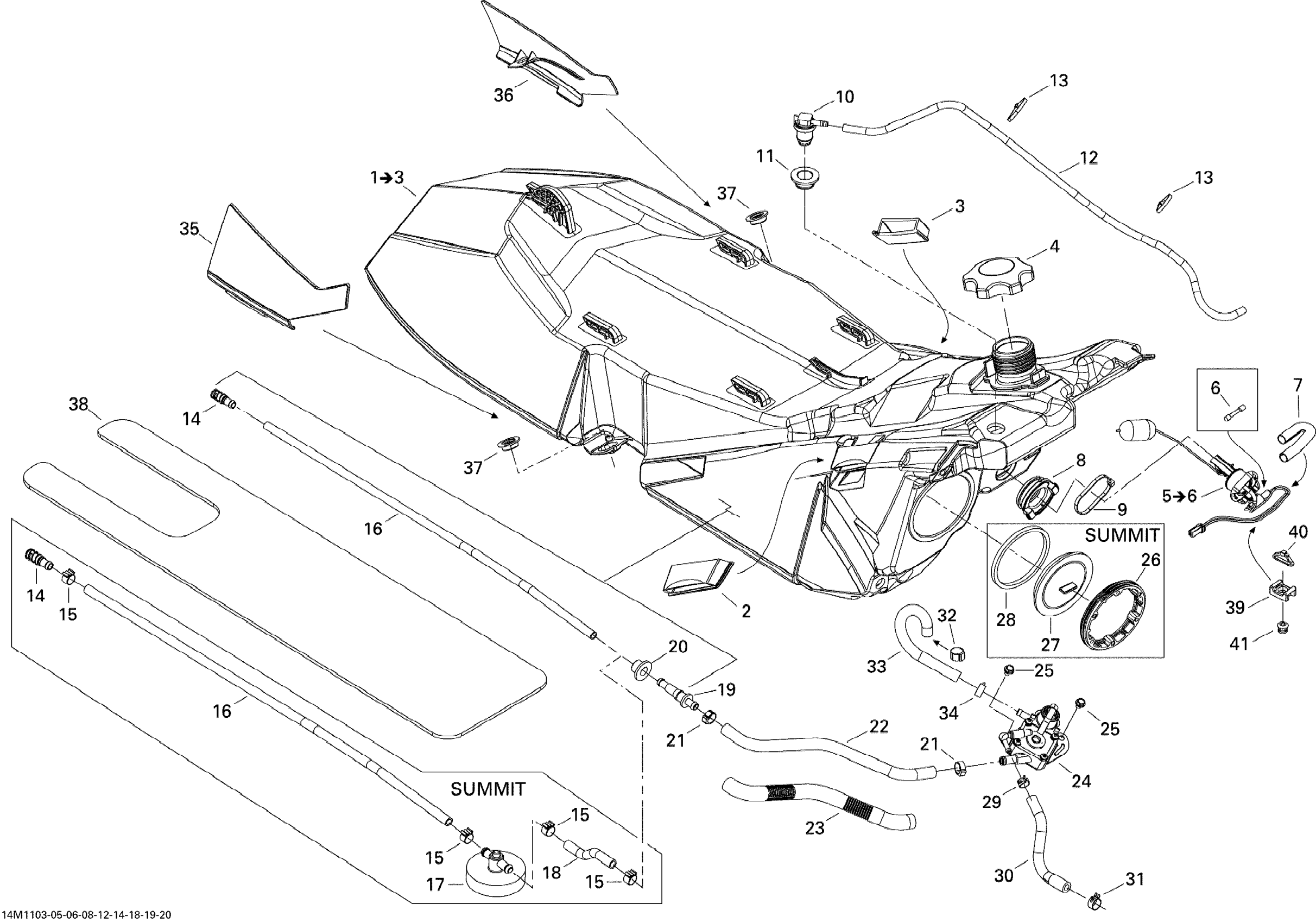

Ski-Doo Renegade ADRENALINE 800R PTEK, 2011 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033695

$339.99

2

RH Panel Clip

513033471

$7.19

3

LH Panel Clip

513033472

$5.99

4

Fuel Tank Cap

513033025

$24.49

5

Sensor Level Fuel | Includes 40 to 40a

513033958

$109.99

6

Fuse, 0.5 Ampère

710001995

$8.32

7

Tubing 10 MM 1000MM Long

219704407

$2.79

8

Grommet

513033606

$21.99

9

Tie Wrap 368 mm

293750008

$1.04

10

Check Valve

513033842

$35.99

11

Grommet

513033596

$21.99

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Tie-Rap 180 mm

414115200

$0.11

14

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

15

Not Available As Spare Parts

XXX

Unavailable

16

Polyurethane Hose 1000Mm Long

219704391

$5.47

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Male Connector

414872700

$1.90

20

Grommet

513033435

$4.69

21

Crimp Clamp

293650053

$3.09

22

Formed Hose

513033165

$30.99

23

Tubing 16 Mm 1000Mm Long

219704408

$7.49

24

Fuel Pump

513033184

$84.99

25

Hex. Flange Screw M6 X 10

210261040

$1.48

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Spring Clamp

414415200

$0.88

30

Formed Hose

513033327

$24.99

31

Universal Spring Clamp

513033029

$5.39

32

Oetiker Clamp

293650125

$3.29

33

Formed Hose

513033343

$24.99

34

Spring Clamp

414655700

$0.72

35

RH Cap

513033418

$14.99

36

LH Cap

513033419

$14.99

37

Shoulder Bushing

513033326

$14.99

38

Insulating Foam

513033588

$14.99

39

Tie Rap Mount (screwable)

515176795

$5.39

40

Tie Wrap 142 mm

293750002

$1.25

41

Pop Rivet 3/16" | DS 650 X

390402000

$0.33
