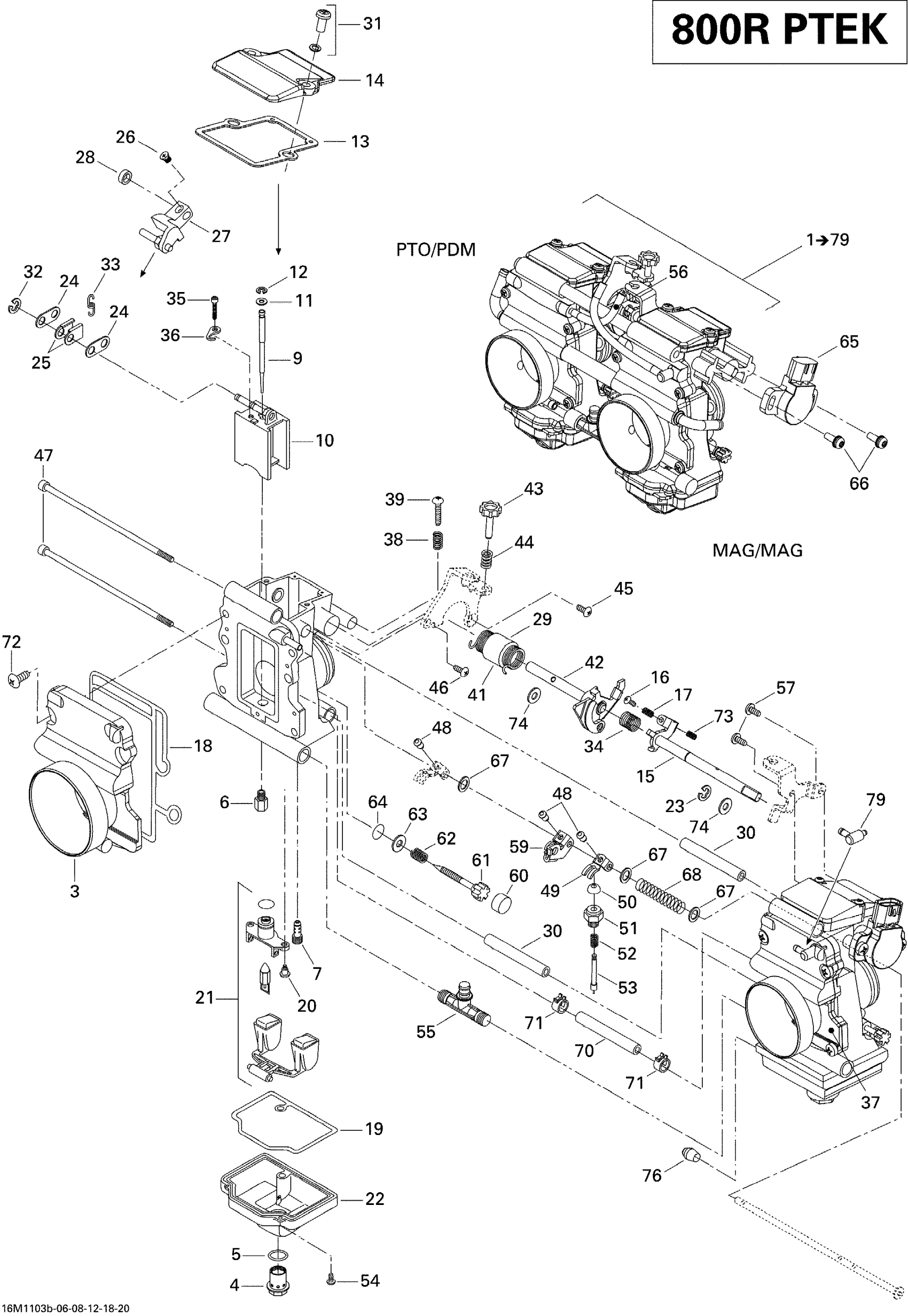

Ski-Doo Renegade ADRENALINE 800R PTEK, 2011 Carburetor Diagram

#

Description
Price

1

CARBURATOR KIT, TM40-B397 - Call your local BRP dealership | Engine 800R

403138805

Unavailable

3

Funnel, PTO

404162093

$239.99

4

Drain Screw

404162094

$30.57

5

O-Ring

404161945

$7.90

6

Main Jet MJ 480

404106800

$5.29

7

Pilot Jet 17.5

404161944

$5.19

9

NEEDLE J8-9EGI04-58 - Call your local BRP dealership

404162081

Unavailable

10

Valve Piston 2.0

404162020

$191.01

11

Packing

404137600

$6.49

12

E-Ring

404152200

$4.24

13

Gasket

404161940

$25.34

14

COVER - Call your local BRP dealership

404161939

$37.28

15

Throttle Shaft

404162077

Unavailable

16

Screw

404136700

$12.18

17

Adjustment Spring

404135300

$10.13

18

O-Ring

404161935

$25.34

19

O-Ring

404161961

$16.39

20

Screw

404161933

$10.99

21

Float

404161932

$124.60

22

Body Float Ass'y

404162095

$74.60

23

E-Ring

707200027

$5.29

24

Plate

404162007

$15.64

25

Holder

404162008

$15.64

26

Screw

404161928

$11.85

27

Lever

404162009

$100.72

28

Ring

404161926

$11.85

29

Ring

404161925

Unavailable

30

RING - Call your local BRP dealership

404161924

Unavailable

31

Screw

404161923

$7.34

32

E-Ring

404138300

$11.49

33

Spring

404162010

$15.64

34

Spring

404162011

$11.85

35

Screw

404161920

$11.85

36

Plate

404161919

$11.85

37

Funnel, MAG

404162096

$238.03

38

Spring

404161918

Unavailable

39

Screw

404161917

Unavailable

41

Spring

404162014

$32.06

42

Throttle Shaft

404162015

$209.67

43

Adjustment Screw

404137500

$17.88

44

Spring

404161913

$11.85

45

Screw

404161912

$6.49

46

Screw

404136100

$6.49

47

Screw

404161911

Unavailable

48

Screw

404161910

$11.85

49

Lever

404161909

Unavailable

50

Cap

404140000

$11.49

51

Guide Holder

404136900

$16.39

52

Spring

404161908

$12.99

53

Plunger Ass'y

404161907

$32.81

54

Screw

404161906

$6.49

55

Nipple

404161905

$48.48

56

HOSE - Call your local BRP dealership

404161821

Unavailable

57

Screw

404161903

$3.15

59

Starter Lever

404161901

$35.79

60

Cap

404161899

$11.51

61

Adjuster

404161898

$24.60

62

Spring

404161897

$6.07

63

Washer

404161896

$6.19

64

Packing

404161895

$7.90

65

Sensor Ass'y

404162079

$349.22

66

SCREW - Call your local BRP dealership

404162080

Unavailable

67

Packing

404161894

$11.85

68

Spring

404103500

$8.00

70

Hose | Grand Touring 500.

404161956

$17.88

71

Clip | Grand Touring 500.

404161957

$15.64

72

Screw

404138800

$6.19

73

Spring

404135400

$8.42

74

Packing

270500118

$8.37

76

Cap

270500095

$7.30

79

Elbow 90°

404128800

$32.81
