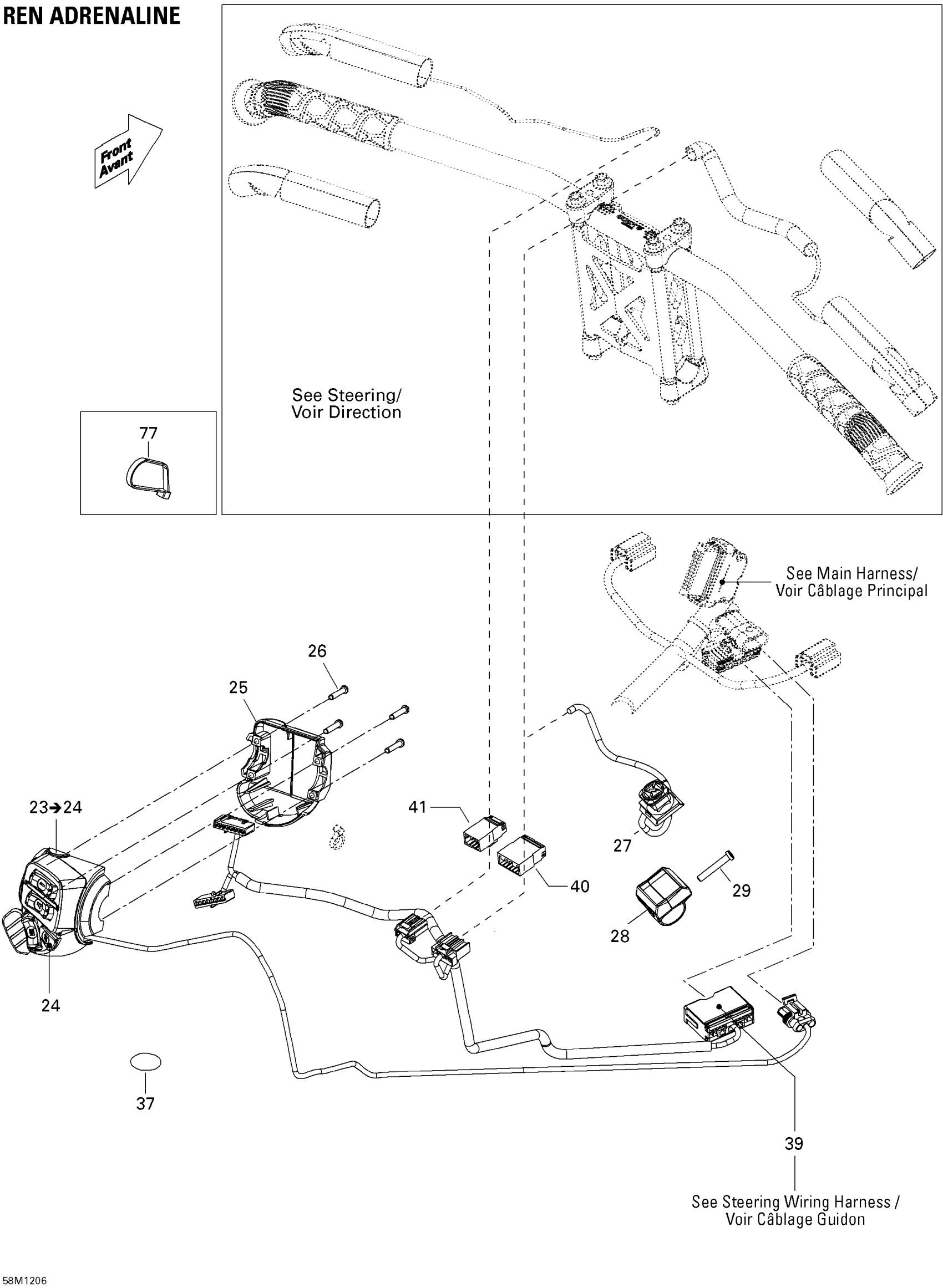

Ski-Doo Renegade Adrenaline 600HOETEC, 2012 Electrical Accessories, Steering Diagram

#

Description

Price

23

LH Switch Housing | Includes 1 To 3

515177508

$162.66

24

Start/RER Button

515176088

$17.88

25

Switch Housing Plate

515175926

$17.13

26

Torx Screw #8-18

250000263

$0.99

27

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

28

Kill Switch Support

515176825

$8.34

29

Torx Screw #8-18

250000263

$0.99

37

Adhesive Patch

518325560

$4.21

39

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 11 To 23

515176867

Unavailable

40

Male Terminal Housing, 8 Circuits

515175817

$8.31

41

Male Terminal Housing, 6 Circuits

515175662

$8.31

77

Tie-Rap 180 mm

414115200

$0.10

77

Tie Wrap 142 mm

293750002

$1.01

77

Tie Wrap 368 mm

293750008

$0.97

77

Tie-Rap 173 mm

293750009

$0.97
