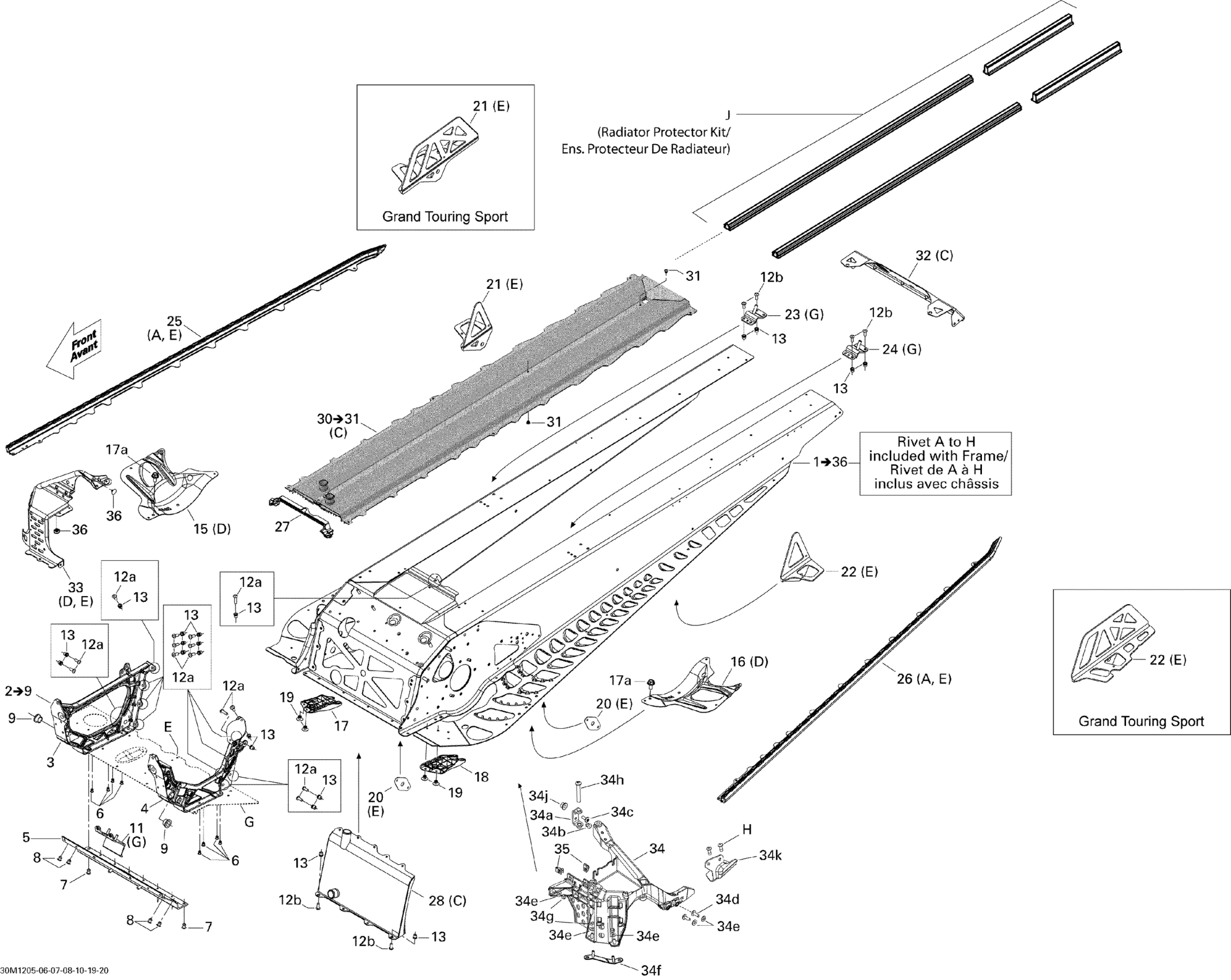

Ski-Doo Renegade Adrenaline 600HOETEC, 2012 Frame Diagram

#

Description
Price

1

FRAME RENEGADE REV XP 137'' - Call your local BRP dealership | Includes 1 to 36

415129633

Unavailable

2

E Module | Includes 10n to 10at

518327567

$415.64

3

RH Member

518326795

$252.21

4

LH Member

518326796

$204.45

5

Front Member

518326198

$58.18

6

Stavex Rivet

293150144

$0.75

7

Hemlock Rivet 6.5 mm

293150120

$7.01

8

Hemlock Rivet, 6.5 mm

293150119

$3.88

9

Leg Bushing

505072690

$5.75

11

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

RH Reinforcement

518324874

$24.60

16

LH Reinforcement

518324875

$24.60

17

RH Deflector, Black Polypropylene

518325782

$11.42

18

LH Deflector, Black Polypropylene

518325783

$11.42

19

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

20

Reinforcement Plate

518326647

$4.21

21

RH Bracket

518328789

$35.79

22

LH Bracket

518328790

$35.79

23

RH Rear Base

518325973

$17.88

24

LH Rear Base | Includes 10v to 10x

518325974

$17.88

25

RH ROLLER - Call your local BRP dealership

518325377

Unavailable

26

LH Roller

518325378

$76.99

27

Seal

518326656

$8.18

28

Front Radiator | Includes 10b to 10b2

518326485

$421.61

30

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$739.52

31

Stavex Rivet

293150144

$0.75

32

Rear Cap

518327105

$20.12

33

RH Stirup | Includes 10aa to 10ab

518328938

$155.94

34

LH Stirup

518326820

$35.04

35

Panel Nut M5 X 0.8

250000958

$4.00

36

Full Moon Dart 5 mm

293730042

$2.06

12a

Hex. Flange Screw M6 X 20

207662044

$1.91

12b

Hex. Flange Screw M6 X 16

207661644

$0.70

17a

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

34a

U-Attach

518326961

$8.19

34b

Ornit Rivet 6,5 X 14.5

293150266

$1.88

34c

Tork Screw M6 X 16

250000534

$2.00

34d

Tork Screw M6 X 18

250000536

$2.00

34e

Flat Washer

250200039

$0.70

34f

Attach | Includes 10n to 10p

518326986

$9.42

34g

Elastic Stop Nut M6

232561414

$1.78

34h

Torx Screw M8 X 55

250000535

$3.01

34j

Hex. Flange Nut M6

233061414

$1.54

34k

Support

518326960

$9.42

A

Pop Rivet 3/16"

390402300

$0.73

C

Avex Rivet

390909200

$0.28

D

Avex Rivet

390909100

$0.28

E

Stavex Rivet

293150144

$0.75

F

Henrob Rivet

293150146

$1.87

G

Hemlock Rivet, 6.4 mm

293150174

$6.24

H

Interlock Rivet 3/16''

293150194

$0.99

J

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable
