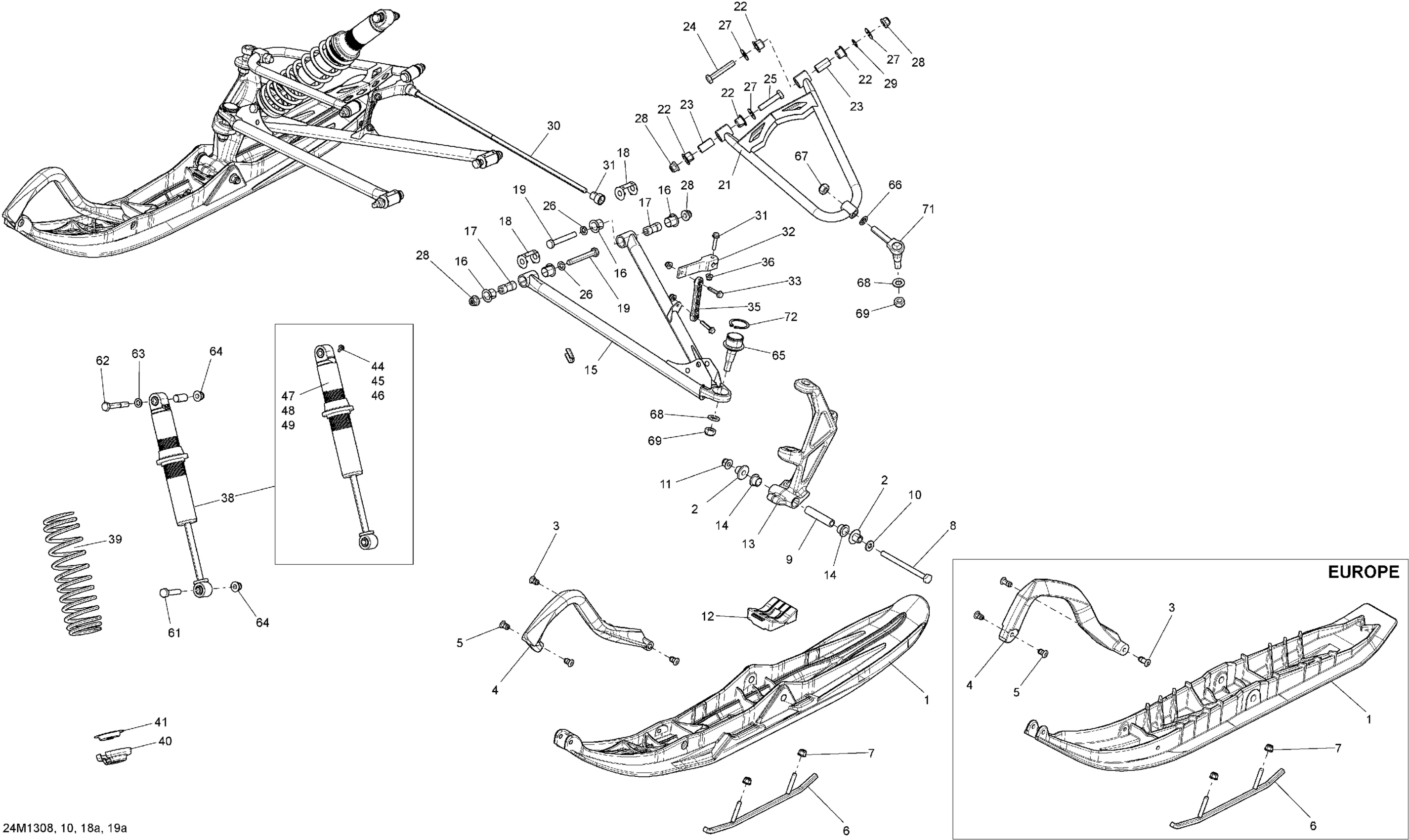

Ski-Doo RENEGADE ADRENALINE 600HOE, 2013 Front Suspension And Ski Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

1

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Yellow Handle | Model-MX-Z TNT

505070917

$42.49

4

Yellow Handle

505073107

$35.99

5

Retainer 23mm Long

505072133

$6.78

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Spacer

506133300

$23.99

10

Washer

503192496

$0.77

11

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

12

Ski Stopper

505072594

$18.49

13

BLACK LH SKI LEG - Call your local BRP dealership

505073173

Unavailable

13

BLACK RH SKI LEG - Call your local BRP dealership

505073174

Unavailable

14

Leg Bushing

505072690

$12.49

15

Black, RH Lower Arm

505072664

$204.99

15

Black, LH Lower Arm

505072665

$204.99

16

Bushing

505072208

$3.28

17

Sleeve

505072209

$17.84

18

Wear Plate

505072634

$6.29

19

Screw Hex. M10 X 70

250001024

$2.11

21

Upper Arm | SE White/White Models

505072374

$154.99

22

Bushing

505072250

$3.28

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 60

250001023

$2.11

25

Screw Hex. M10 X 50

250001022

$1.69

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

29

O-Ring

505072448

$2.32

30

Stabilisator

505072602

$68.99

31

Bushing

505072064

$2.32

32

Stabilisator Lever

505072394

$18.73

33

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

34

Hex. Flange Elastic Nut M6

233261466

$2.00

35

Sway Bar Double Joint Link

505072204

$21.99

36

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

37

Hex. Flange Elastic Nut M6

233261466

$2.00

38

Front Shock | Model-Europe

505073237

$434.49

39

YELLOW SPRING - Call your local BRP dealership | RENEGADE ADR Except 1000

505072230

Unavailable

40

Spring Stopper

706200881

$12.99

41

Cap

706200785

$4.69

44

O-Ring

505070400

$4.54

45

Screw | Not Shown

505070399

$4.12

46

Air Valve

505070398

$20.99

47

Piston Ring

503189308

$79.49

48

O-Ring

414888312

$17.29

49

Not Available As Spare Part - Friction Washer

Unavailable

61

Hex Screw M10 X 1.5 X 55

207005554

$7.51

62

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

63

Washer

503189564

$0.74

64

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

65

Ball Joint

505073636

$51.99

66

Washer

503189276

$3.28

67

Hex. Elastic Hex. Nut M12

250100089

$0.46

68

Washer

503192491

$4.54

69

Hex Elastic Nut M12 X 1.25

232521464

$2.11

71

Upper Ball Joint

505072257

$17.58

72

Circlip

293370035

$2.64
