Description

Price

1

FRAME ASS'Y, 137 - Call your local BRP dealership | Includes 1 to 37

415129573

Unavailable

2

E Module | Includes 10n to 10at

518327567

$469.99

3

RH Member

518326795

$284.99

4

LH Member

518326796

$229.99

5

Front Member

518326198

$64.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Leg Bushing

505072690

$12.49

10

Not Available As Spare Part - Friction Washer

Unavailable

11

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

12a

Hex. Flange Screw M6 X 20

207662044

$2.00

12b

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Screw M6 X 20

207662044

$2.00

15

RH Reinforcement

518324874

$27.99

16

LH Reinforcement

518324875

$27.99

17

RH Deflector, Black Polypropylene

518325782

$13.99

18

LH Deflector, Black Polypropylene

518325783

$13.99

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

21

RH Bracket

518328789

$39.99

22

LH Bracket

518328790

$39.99

23

RH Rear Base

518325973

$21.99

24

LH Rear Base | Includes 10v to 10x

518325974

$21.99

25

RH ROLLER - Call your local BRP dealership

518325377

$69.99

26

LH Roller

518325378

$76.99

27

Seal

518326656

$9.19

28

Front Radiator | Includes 10b to 10b2

518326485

$444.99

29

Clinch Stud M6 X 20

250300027

$2.09

30

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$783.99

31

Stavex Rivet

293150144

$0.82

32

Rear Cap

518327105

$22.49

33

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

34

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

35

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

36

Full Moon Dart 5 mm

293730042

$2.21

37

Insert M5 X 0.8

293450268

$2.09

A

Pop Rivet 3/16"

390402300

$0.75

B

Not Available As Spare Part - Friction Washer

Unavailable

C

Avex Rivet

390909200

$0.30

D

Avex Rivet

390909100

$0.30

E

Stavex Rivet

293150144

$0.82

F

Henrob Rivet

293150146

$2.09

G

Hemlock Rivet, 6.4 mm

293150174

$7.86

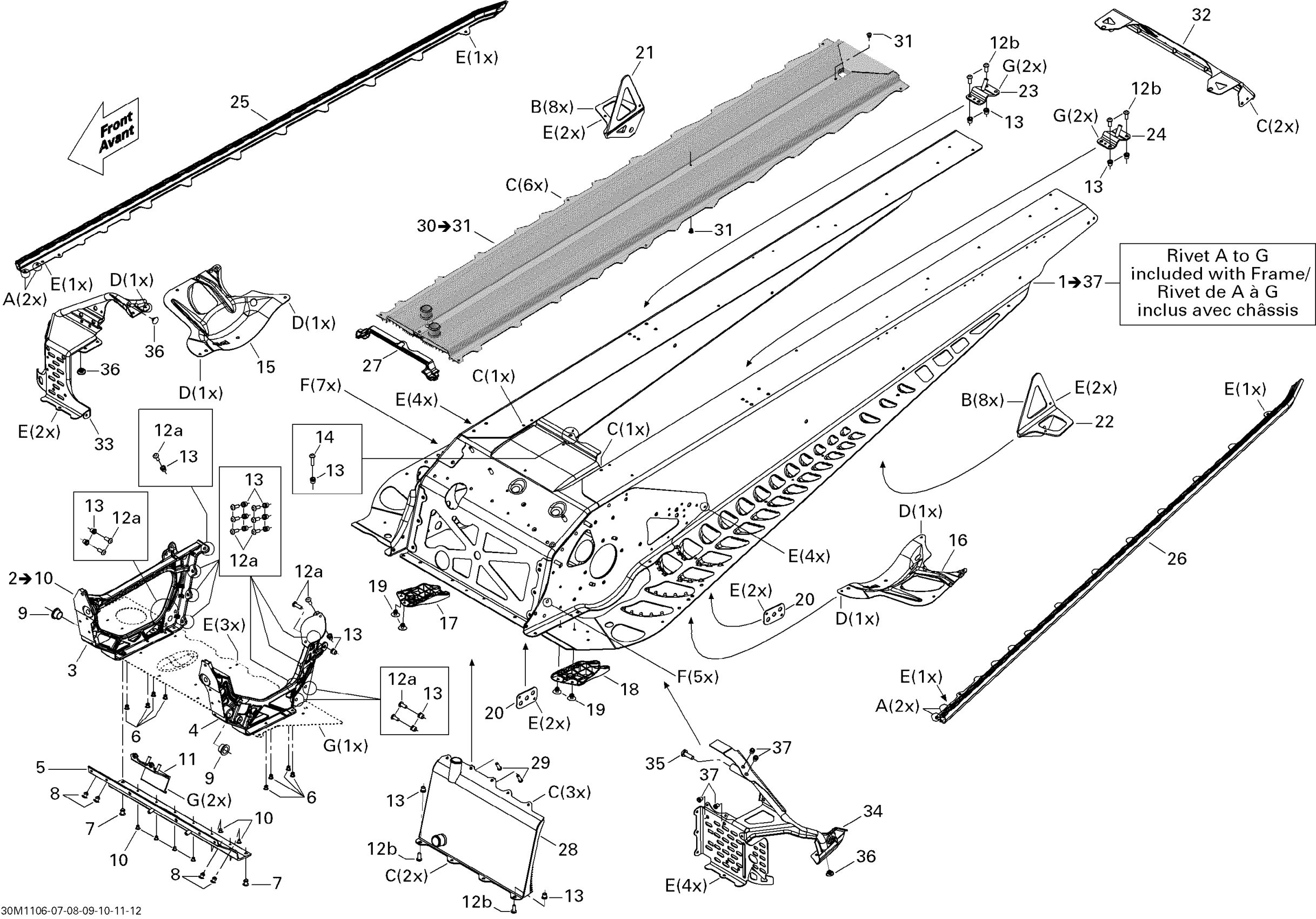

Ski-Doo Renegade Adrenaline 600HO ETEC, 2011 09- Frame Diagram

FRAME ASS'Y, 137 - Call your local BRP dealership | Includes 1 to 37

E Module | Includes 10n to 10at

RH Member

LH Member

Front Member

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Bushing

Not Available As Spare Part - Friction Washer

MAG Engine Support | Includes 10a to 10a1

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

REINFORCEMENT PLATE - Call your local BRP dealership

RH Bracket

LH Bracket

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH ROLLER - Call your local BRP dealership

LH Roller

Seal

Front Radiator | Includes 10b to 10b2

Clinch Stud M6 X 20

Rear Radiator 137'' | Includes 10ar to 10as

Stavex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

LH STIRUP - Call your local BRP dealership

Torx Screw M8 X 1.25 X 25, Scotch Grip

Full Moon Dart 5 mm

Insert M5 X 0.8

Pop Rivet 3/16"

Not Available As Spare Part - Friction Washer

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm
