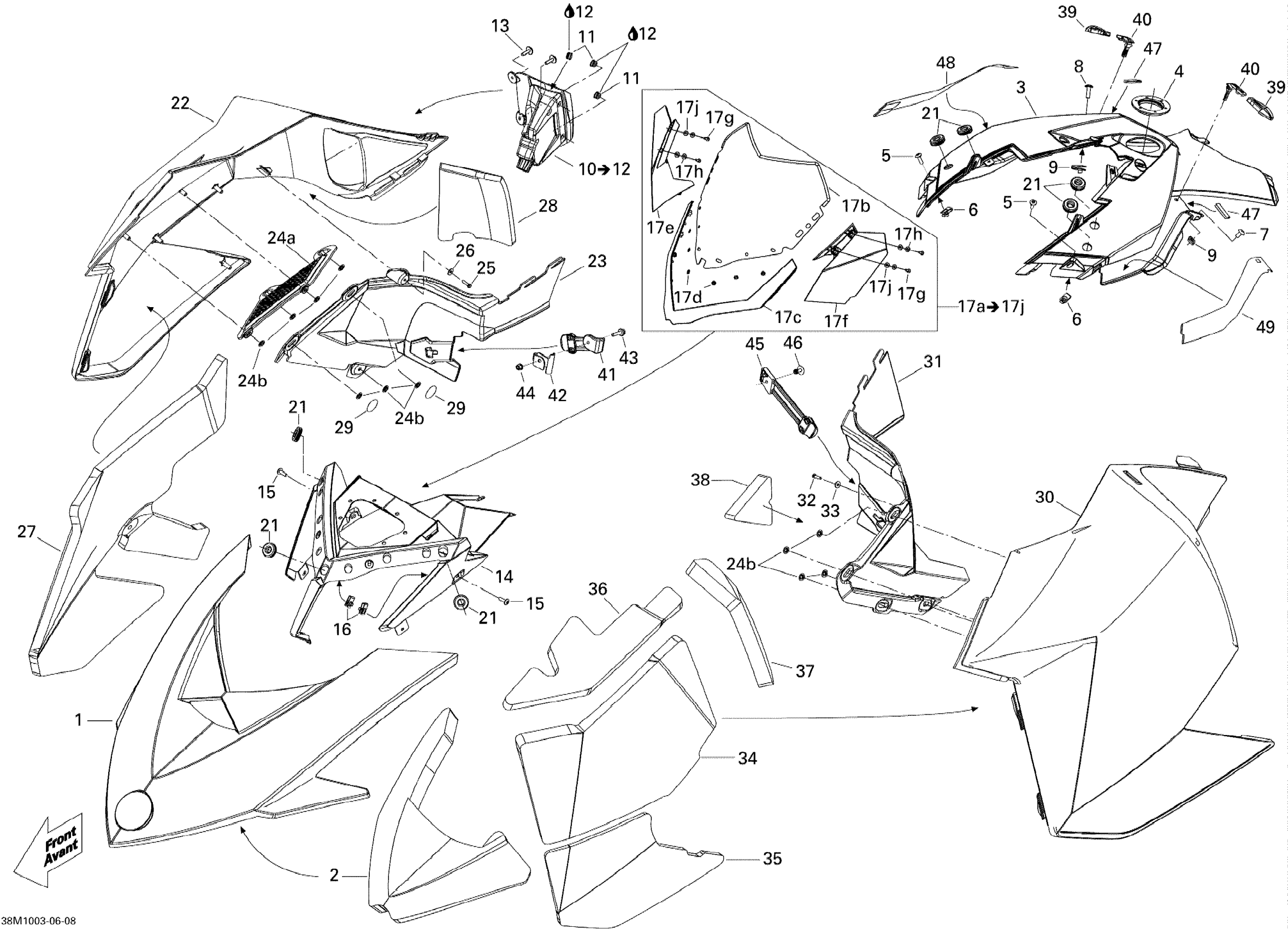

Ski-Doo Renegade Adrenaline 600HO ETEC, 2010 09- Hood 600HO ETEC Diagram

#

Description
Price

1

Yellow Hood

517304529

$154.99

2

Hood Foam

517304913

$22.49

3

CONSOLE B-190 - Call your local BRP dealership | 600HOE

517303778

Unavailable

4

Console Nut

517304518

$15.29

5

Torx Screw M6 X 20

250000722

$1.68

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Torx Truss Screw M6 X 16

250000721

$1.69

8

Torx Screw M6 X 20

250000722

$1.68

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Black, RH Console | Includes 400 to 400b

517304322

$35.99

11

Black, Cap

275500241

$3.49

12

Loctite, Black Max, 3 ml

413408300

$26.99

13

Screw M4 X 16

250000725

$3.49

14

Gauge Support

517304575

$70.99

15

Torx Screw M6 X 20

250000722

$1.68

16

Panel Nut M6 X 1.0

250100198

$2.11

17a

Windsheld Kit 375

860200478

$169.99

17b

Windsheld 375mm | Deep Black

517304395

$148.99

17c

Windshield Support

517303607

$34.99

17d

Push Nut

732610072

$2.19

17e

RH Air Deflector

517303604

$43.99

17f

LH Air Deflector

517303605

$43.99

17g

Torx Screw K50 X 16

250000720

$1.69

17h

Washer M5

250200025

$0.74

17j

Rubber Washer 5 mm

250200024

$2.19

21

Grommet

517303756

$4.09

22

Deep Black, RH Panel

517304029

$211.99

22

PANEL_BODY RH B-160 - Call your local BRP dealership | Electric Start Models

517304210

Unavailable

23

Deep Black RH Moulding Panel

517303671

$28.99

24a

Grille

517303622

$31.99

24b

Push Nut

732610072

$2.19

25

Hex. Flange Screw K40 X 16

241141660

$1.48

26

Flat Washer 4 mm, Stainless

234042600

$1.15

27

RH Center Foam

517304883

$43.99

28

RH Panel Rear Foam

517304884

$19.99

29

Adhesive Patch

518325560

$4.69

30

Deep Black, LH Panel

517304030

$211.99

31

Deep Black, LH Moulding Panel

517303673

$28.99

32

Hex. Flange Screw K40 X 16

241141660

$1.48

33

Flat Washer 4 mm, Stainless

234042600

$1.15

34

LH Panel Center Foam

517304887

$27.99

35

LH Panel Lower Foam

517304888

$22.49

36

LH Panel Upper Foam

517304889

$21.99

37

LH Panel Rear Foam

517304890

$17.99

38

Foam

517304891

$21.99

39

End Piece Latch

517304075

$4.69

40

Panel Latch

517303981

$12.99

41

RH Panel Latch

517303612

$9.99

42

Latch Support

517304221

$9.19

43

Hex.Flange Screw M5 X 20

207652044

$1.90

44

Hex. Flange Elastic Nut M5

233251414

$1.04

45

LH Panel Latch

517303808

$11.49

46

Pop Rivet 3/16”

293150108

$1.19

47

Console Decal

517304105

$13.99

48

RH Decal

517304103

$19.99

49

LH Decal

517304104

$19.99
