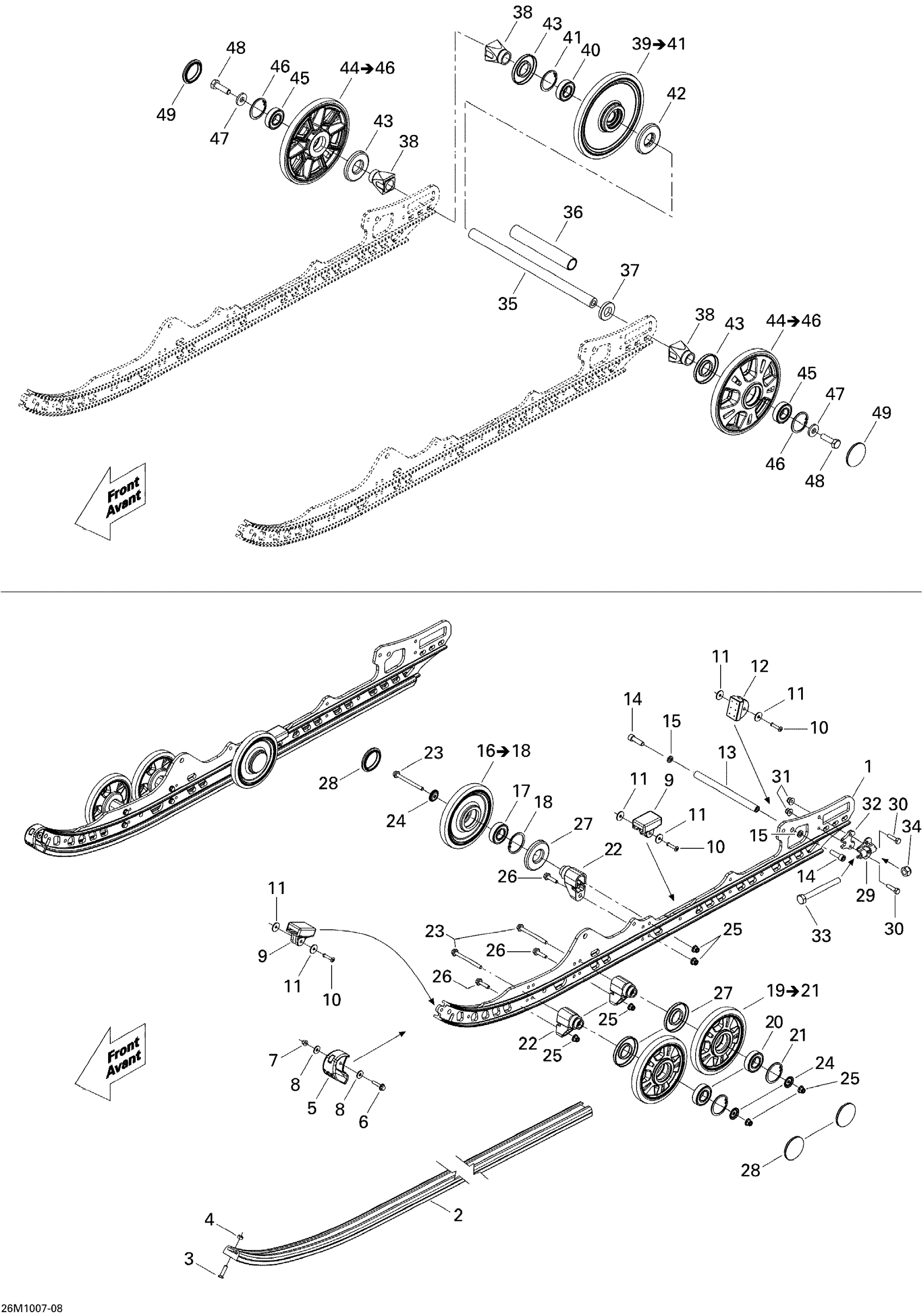

Ski-Doo Renegade Adrenaline 600HO ETEC, 2010 08- Rear Suspension Diagram

#

Description
Price

1

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192318

Unavailable

2

Black, Slider Shoe 137''

503191306

$29.49

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503191291

$19.99

13

Axle Strap

503191260

$30.99

14

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

15

Washer

503189564

$0.74

16

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

17

Ball Bearing | Package-STD

503190396

$14.30

18

Retaining Ring

415129371

$12.01

19

Wheel 141 mm Ass'y, Yellow | LE Model

503191621

$37.99

20

Ball Bearing | Package-STD

503190396

$14.30

21

Retaining Ring

415129371

$12.01

22

Casted Support

503193894

$16.49

23

Hex. Flange Screw M6 X 70

207667056

$4.44

24

Wheel Cup M6

503191820

$4.99

25

Elastic Flange Nut M6 X 1.0

233261416

$2.11

26

Hex. Flange Screw M6 X 25

207662544

$0.64

27

Labyrinth Seal

503190434

$6.09

28

Wheel Cap

570063600

$3.49

29

Tensioner

503192583

$8.29

30

Hex. Screw M6 X 30

207063044

$1.26

31

Elastic Flange Nut M6 X 1.0

233261416

$2.11

32

Spacer

503193250

$16.49

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.69

35

Rear Axle

503190429

$59.99

36

Spacer

503196317

$18.49

37

Washer

503190432

$14.22

38

Rear Wheel Spacer

503190428

$8.14

39

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

40

Ball Bearing | Package-STD

503190396

$14.30

41

Retaining Ring

415129371

$12.01

42

Labyrinth Seal

503190682

$6.19

43

Labyrinth Seal

503190434

$6.09

44

Yellow Wheel Ass'y, 180 mm | LE Model

503191626

$51.99

45

Ball Bearing | Package-STD

503190396

$14.30

46

Retaining Ring

415129371

$12.01

47

Washer

503190439

$5.93

48

Hex. Screw With Nylon

250000019

$1.69

49

Wheel Cap

570063600

$3.49
