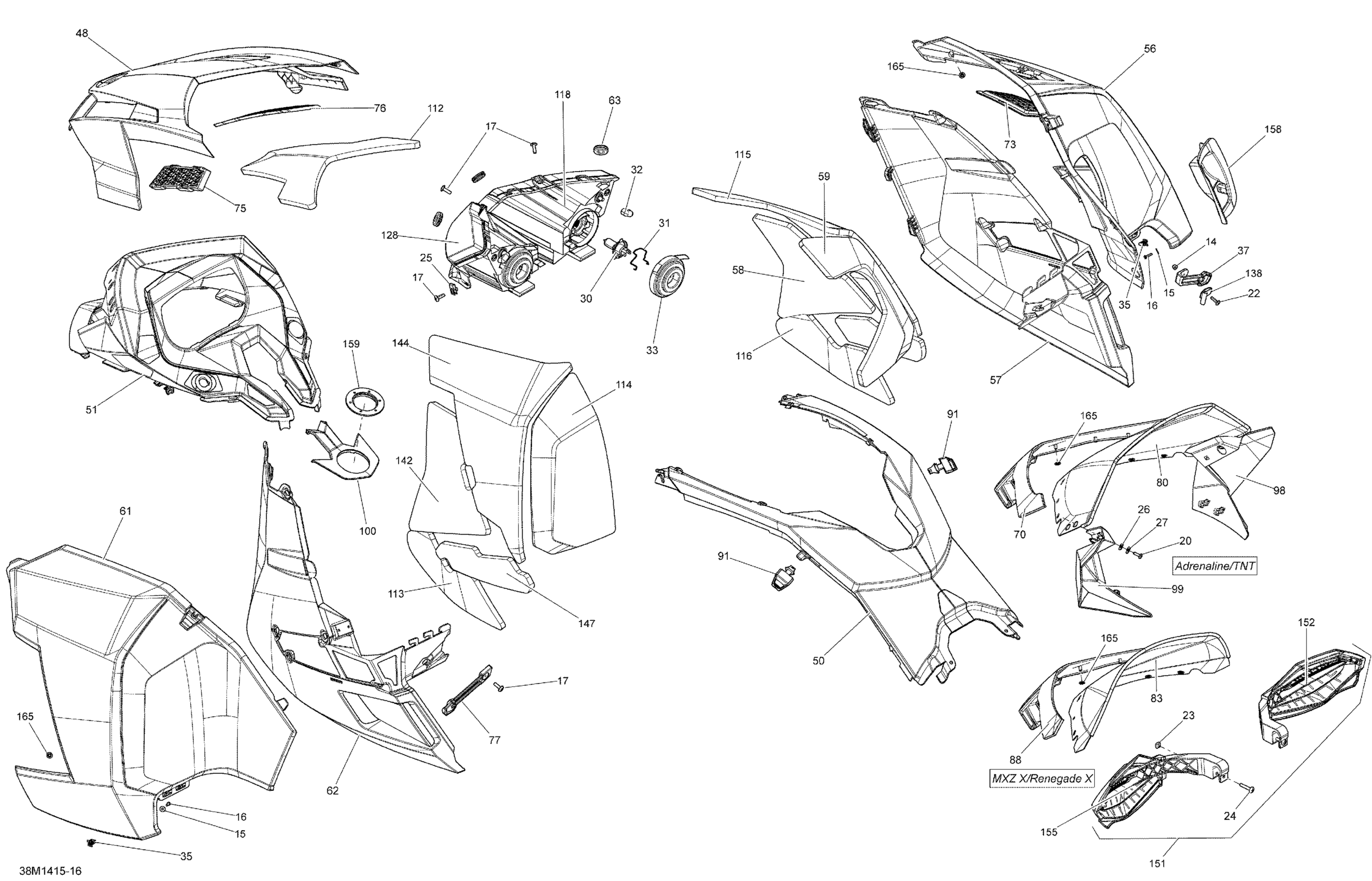

Ski-Doo RENEGADE ADRENALINE 1200 4TEC XR, 2014 Hood, Windshield And Console Diagram

#

Description
Price

14

Hex. Flange Elastic Nut M5

233251414

$1.66

15

Flat Washer 4 mm, Stainless

234042600

$0.92

16

Hex. Flange Screw K40 X 16

241141660

$1.25

17

Torx Screw M6 X 20

250000722

$1.34

20

Torx Screw K50 X 16

250000720

$1.39

22

Torx Screw M5 X 20

250000792

$1.74

23

SQUARE NUT M6 - Call your local BRP dealership

250000498

Unavailable

24

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

250000501

Unavailable

25

Panel Nut M6 X 1.0

250100198

$1.73

26

Rubber Washer 5 mm

250200024

$1.77

27

Washer M5

250200025

$0.61

30

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Cap

515176498

$12.18

33

Rubber Cap Protector

219800280

$17.66

35

Edge Clip

517302785

$0.70

37

RH Panel Latch

517303612

$9.49

48

Black Hood | Model-Black-Black

517303739

$223.82

50

Black Console

517303741

$212.28

51

Black Indicator Support

517303742

$82.28

51

CONSOLE UP B-190 - Call your local BRP dealership | Model-TNT

517305179

Unavailable

56

Black RH Panel

517303748

$346.12

57

PANEL_BODY LWR R B-160 - Call your local BRP dealership

517304373

Unavailable

58

CENTRAL FOAM PANEL RH - Call your local BRP dealership

517304894

Unavailable

59

REAR PANEL FOAM RH - Call your local BRP dealership

517304895

Unavailable

61

Black LH Pannel | Model-Black-Black

517303753

$212.28

62

PANEL_BODY LWR L B-160 - Call your local BRP dealership

517304362

Unavailable

63

Grommet

517303756

$3.15

70

Medium Windshield Support

860200229

$32.99

73

PANEL GRILL - Call your local BRP dealership

517303801

Unavailable

75

LH Hood Grille

517303804

$29.20

76

RH Hood Grille

517303805

$29.20

77

LH Panel Latch

517303808

$9.91

80

MEDIUM WINDSHIELD (395) - Call your local BRP dealership

517303887

Unavailable

83

Low Windshield (250)

517303888

$189.97

88

LOW WINDSHIELD SUPPORT - Call your local BRP dealership

860200228

Unavailable

91

Panel Latch

517305000

$11.32

98

RH Console Air Deflector

517304024

$29.97

99

LH Console Air Deflector

517304025

$29.97

100

Deep Black, Cap Console

517304027

$13.06

112

Hood Foam

517304893

$27.66

113

LH LOWER PANEL FOAM - Call your local BRP dealership

517304901

Unavailable

113

LH LOWER PANEL FOAM - Call your local BRP dealership

517304900

Unavailable

114

LH REAR PANEL FOAM - Call your local BRP dealership

517304904

Unavailable

115

RH UPPER PANEL FOAM - Call your local BRP dealership

517304908

Unavailable

115

RH UPPER PANEL FOAM - Call your local BRP dealership

517304907

Unavailable

116

RH LOWER PANEL FOAM - Call your local BRP dealership

517304905

Unavailable

116

RH LOWER PANEL FOAM - Call your local BRP dealership

517304906

Unavailable

118

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

138

Latch Support

517304221

$6.49

142

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304899

Unavailable

142

LH CENTRAL PANEL FOAM - Call your local BRP dealership

517304898

Unavailable

144

LH UPPER PANEL FOAM - Call your local BRP dealership

517304902

$26.89

144

LH UPPER PANEL FOAM - Call your local BRP dealership

517304903

Unavailable

147

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304897

Unavailable

147

CENTRAL FOAM PANEL LH - Call your local BRP dealership

517304896

Unavailable

151

Grey Wind Deflector Kit

860200712

$98.99

152

GREY RH WIND DEFLECTOR - Call your local BRP dealership

517305039

Unavailable

155

GREY LH WIND DEFLECTOR - Call your local BRP dealership

517305040

Unavailable

158

Black, RH Console

517304500

$27.66

159

Console Nut

517304518

$13.78

165

Push Nut

732610072

$1.72
