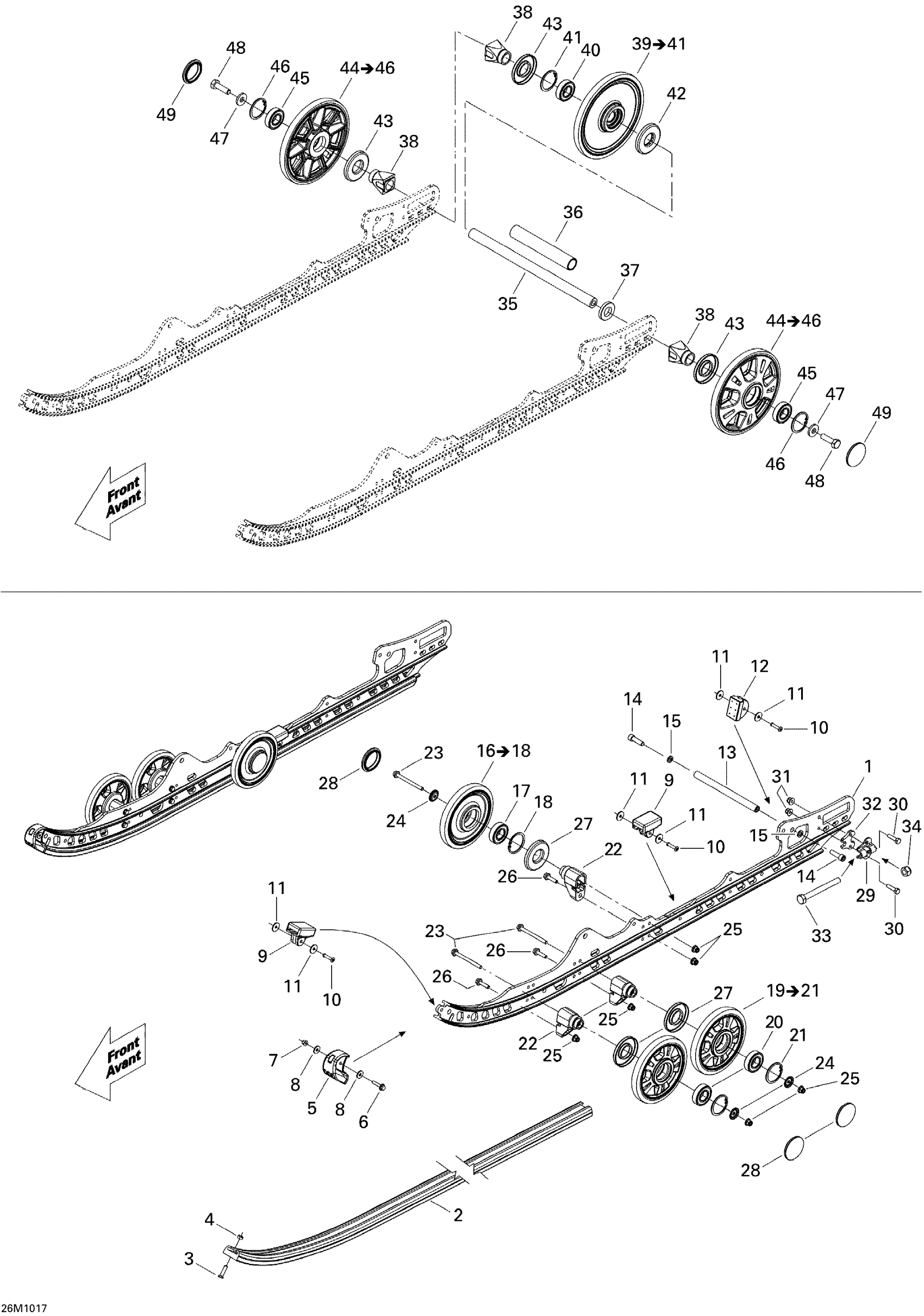

Ski-Doo Renegade Adrenaline 1200, 2010 Rear Suspension ADR Diagram

#

Description
Price

1

RAIL_SUSPENSION 137 - Call your local BRP dealership

503192318

Unavailable

2

Black, Slider Shoe 137''

503191306

$26.84

3

Phillips Screw M6 X 25

208562531

$2.00

4

Elastic Stop Nut M6

232561414

$1.78

5

Runner Protector

503191137

$9.90

6

Hex. Flange Screw M5 X 25

207652544

$0.48

7

Hex. Flange Elastic Nut M5

233251414

$1.91

8

Washer | DS 650 X

391301600

$0.46

9

Rubber Stopper

503190576

$9.93

10

Pop Rivet 3/16"

293150142

$2.04

11

Washer

503191273

$1.03

12

Rubber Stopper

503191291

$17.88

13

Axle Strap

503191260

$28.33

14

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

15

Washer

503189564

$0.70

16

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$35.04

17

Ball Bearing | Package-STD

503190396

$8.18

18

Retaining Ring

415129371

$8.66

19

Wheel 141 mm Ass'y, Yellow | LE Model

503191621

$35.04

20

Ball Bearing | Package-STD

503190396

$8.18

21

Retaining Ring

415129371

$8.66

22

Casted Support

503193894

$12.37

23

Hex. Flange Screw M6 X 70

207667056

$4.15

24

Wheel Cup M6

503191820

$4.52

25

Elastic Flange Nut M6 X 1.0

233261416

$2.00

26

Hex. Flange Screw M6 X 25

207662544

$0.61

27

Labyrinth Seal

503190434

$4.16

28

Wheel Cap

570063600

$3.18

29

Tensioner

503192583

$5.67

30

Hex. Screw M6 X 30

207063044

$1.12

31

Elastic Flange Nut M6 X 1.0

233261416

$2.00

32

Spacer

503193250

$13.54

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.63

35

Rear Axle

503190429

$58.18

36

Spacer

503196317

$14.90

37

Washer

503190432

$12.15

38

Rear Wheel Spacer

503190428

$5.88

39

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$48.48

40

Ball Bearing | Package-STD

503190396

$8.18

41

Retaining Ring

415129371

$8.66

42

Labyrinth Seal

503190682

$5.67

43

Labyrinth Seal

503190434

$4.16

44

Yellow Wheel Ass'y, 180 mm | LE Model

503191626

$48.48

45

Ball Bearing | Package-STD

503190396

$8.18

46

Retaining Ring

415129371

$8.66

47

Washer

503190439

$5.64

48

Hex. Screw With Nylon

250000019

$1.63

49

Wheel Cap

570063600

$3.18
