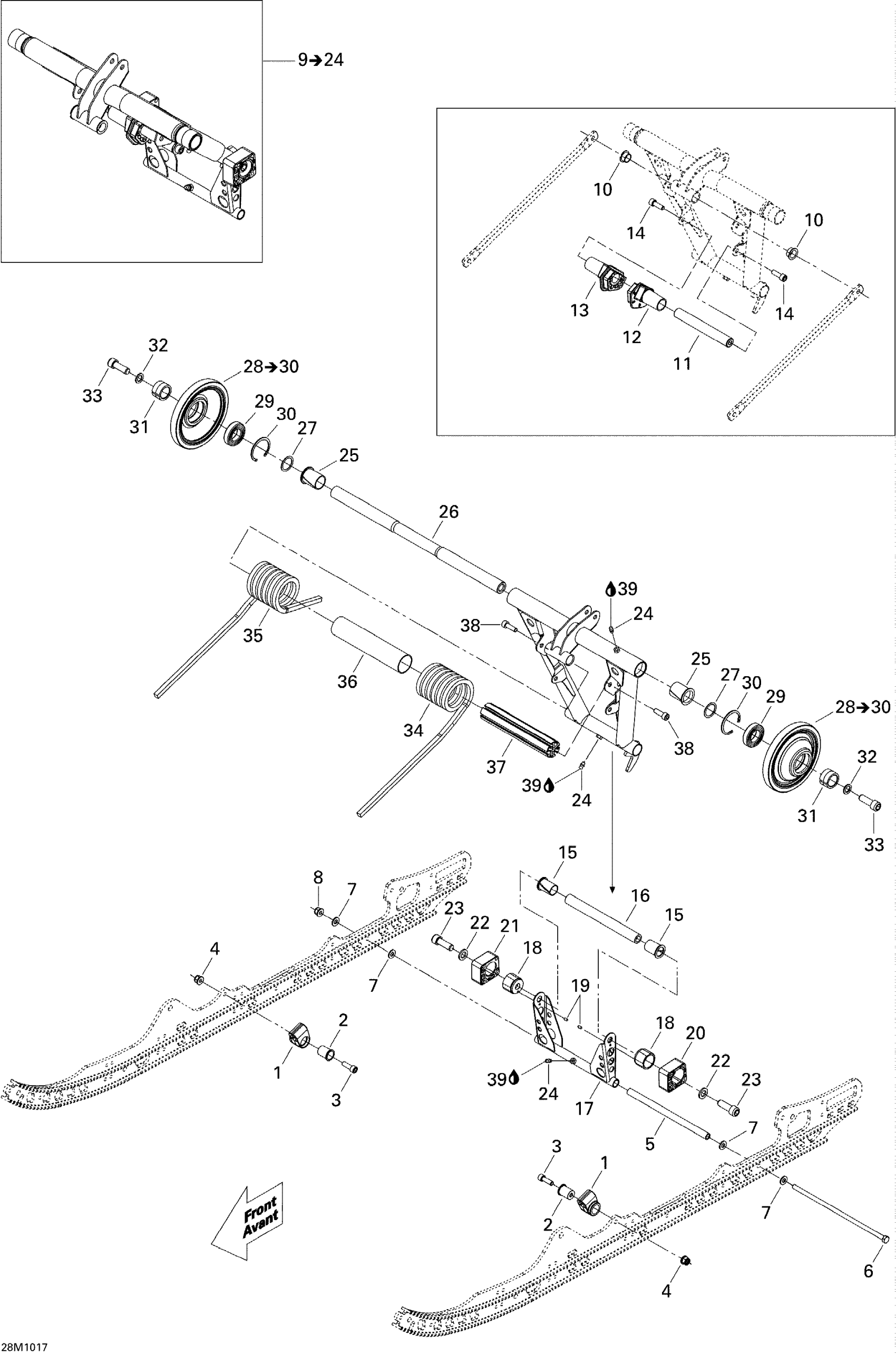

Ski-Doo Renegade Adrenaline 1200, 2010 Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Pivot Arm Axle

503189156

$20.12

6

Bolt M8 X 248mm

503192440

$29.07

7

Washer

503189157

$3.10

8

Hex. Flange Elastic Nut M8

233281414

$1.31

9

REAR ARM ASS'Y - Call your local BRP dealership

503191967

Unavailable

10

Swivel Bushing

503191555

$5.54

11

Spring Cam Axe

503191178

$26.84

12

LH Spring Cam

503191191

$13.46

13

RH Spring Cam

503191190

$13.37

14

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

15

Cushion

503191640

$5.54

16

Lower Shaft

503192330

$44.75

17

Pivot Arm

503191302

$114.90

18

Block Guide

503189488

$36.54

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

20

LH Block, 4 Positions

503192301

$23.85

21

RH Block, 4 Positions

503192300

$23.85

22

Washer | 7415/7416. 7417/7418.

503189148

$2.64

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

24

Grease Fitting

408200700

$3.21

25

Cushion

503191451

$10.84

26

UPPER SHAFT - Call your local BRP dealership

503191233

Unavailable

27

Washer

503190328

$11.00

28

WHEEL 144 MM ASS'Y - Call your local BRP dealership

503191739

Unavailable

29

Ball Bearing

503193548

$16.39

30

Retaining Ring

415129371

$8.66

31

Retaining Ring

503191099

$5.67

32

Washer

503189276

$3.10

33

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

34

Black LH Spring, Square

503191613

$58.18

35

Black RH Spring, Square

503191612

$58.18

36

Plastic Bushing

503191345

$6.69

37

Spring Axle

503191344

$33.55

38

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

39

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
