Description

Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

1

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Black, Handle

505070963

$35.99

5

Retainer 23mm Long

505072133

$6.78

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Spacer

506133300

$23.99

10

Washer

732900049

$0.58

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Ski Stopper

505071779

$18.78

13

Clear, LH Ski Leg

505073007

$249.99

13

Clear, RH Ski Leg

505073008

$239.99

14

Bushing

505072208

$3.28

17

Black, RH Lower Arm

505072664

$204.99

17

Black, LH Lower Arm

505072665

$204.99

20

Wear Plate

505072634

$6.29

21

Screw Hex. M10 X 70

250001024

$2.11

23

Upper Arm | SE White/White Models

505072374

$154.99

26

Sleeve

505072143

$9.00

31

Hex. Flange Elastic Nut M10

250100165

$0.85

32

O-Ring

505072448

$2.32

33

Stabilisator

505072602

$68.99

34

Bushing

505072064

$2.32

35

Stabilisator Lever

505072394

$18.73

36

Hex. Flange Screw M6 X 30

207663046

$1.69

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

Sway Bar Double Joint Link

505072204

$21.99

39

Hex. Flange Screw M6 X 30

207663046

$1.69

40

Elastic Flange Nut M6 X 1.0

233261416

$2.11

41

Front Shock | Model-Europe

505073237

$434.49

43

Piston Ring

503189308

$79.49

44

Air Valve

505070398

$20.99

45

Screw | Not Shown

505070399

$4.12

46

O-Ring

505070400

$4.54

48

YELLOW SPRING - Call your local BRP dealership | RENEGADE ADR 1000

505072514

Unavailable

49a

Spring Stopper

706200881

$12.99

49b

Spring Stopper

503194270

$19.99

55

Cap

706200785

$4.69

57

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

58

O-Ring

414888312

$17.29

59

Hex. Screw M10 X 55

207005544

$2.22

60

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

61

Washer

503189564

$0.74

62

Hex. Flange Elastic Nut M10

233201414

$1.58

63

Ball Joint

505073636

$51.99

64

Washer

503189276

$3.28

65

Hex. Elastic Hex. Nut M12

250100089

$0.46

67

Hex. Elastic Hex. Nut M12

250100089

$0.46

69

Upper Ball Joint

505072257

$17.58

70

Circlip

293370035

$2.64

71

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

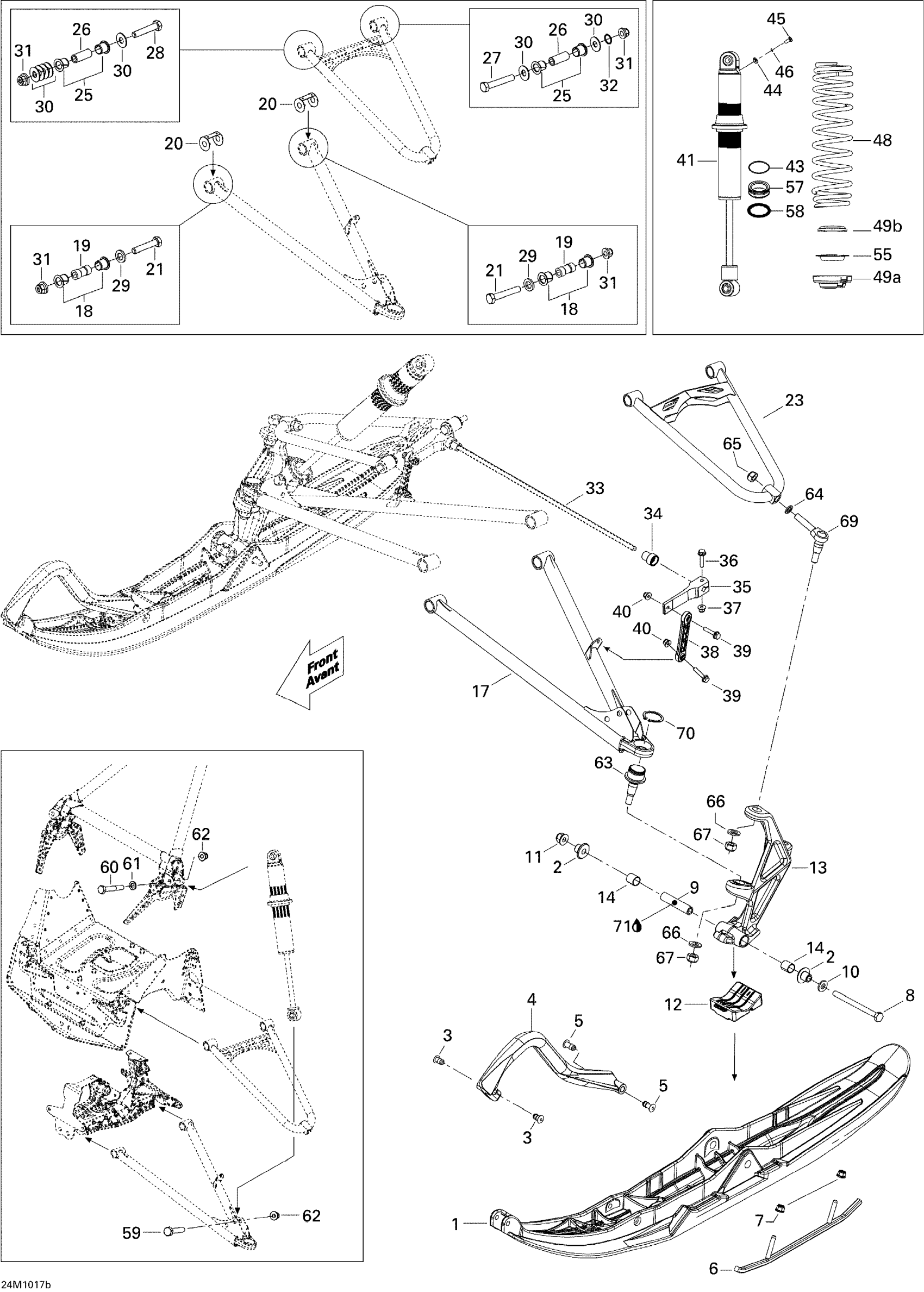

Ski-Doo Renegade Adrenaline 1200, 2010 07- Front Suspension And Ski Adrénaline Diagram

Deep Black, RH Pilot 5.7 Ski

Deep Black, LH Pilot 5.7 Ski

Ski Bushing

Retainer 17mm long

Black, Handle

Retainer 23mm Long

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

Hex. Flange Elastic Nut M8

Hex. Screw M10 X 130 | Model-RT STD

Spacer

Washer

Hex. Flange Elastic Nut M10

Ski Stopper

Clear, LH Ski Leg

Clear, RH Ski Leg

Bushing

Black, RH Lower Arm

Black, LH Lower Arm

Wear Plate

Screw Hex. M10 X 70

Upper Arm | SE White/White Models

Sleeve

Hex. Flange Elastic Nut M10

O-Ring

Stabilisator

Bushing

Stabilisator Lever

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Sway Bar Double Joint Link

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Front Shock | Model-Europe

Piston Ring

Air Valve

Screw | Not Shown

O-Ring

YELLOW SPRING - Call your local BRP dealership | RENEGADE ADR 1000

Spring Stopper

Spring Stopper

Cap

FREE PISTON - Call your local BRP dealership

O-Ring

Hex. Screw M10 X 55

Hex. Screw M10 X 1.5 X 65

Washer

Hex. Flange Elastic Nut M10

Ball Joint

Washer

Hex. Elastic Hex. Nut M12

Hex. Elastic Hex. Nut M12

Upper Ball Joint

Circlip

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
