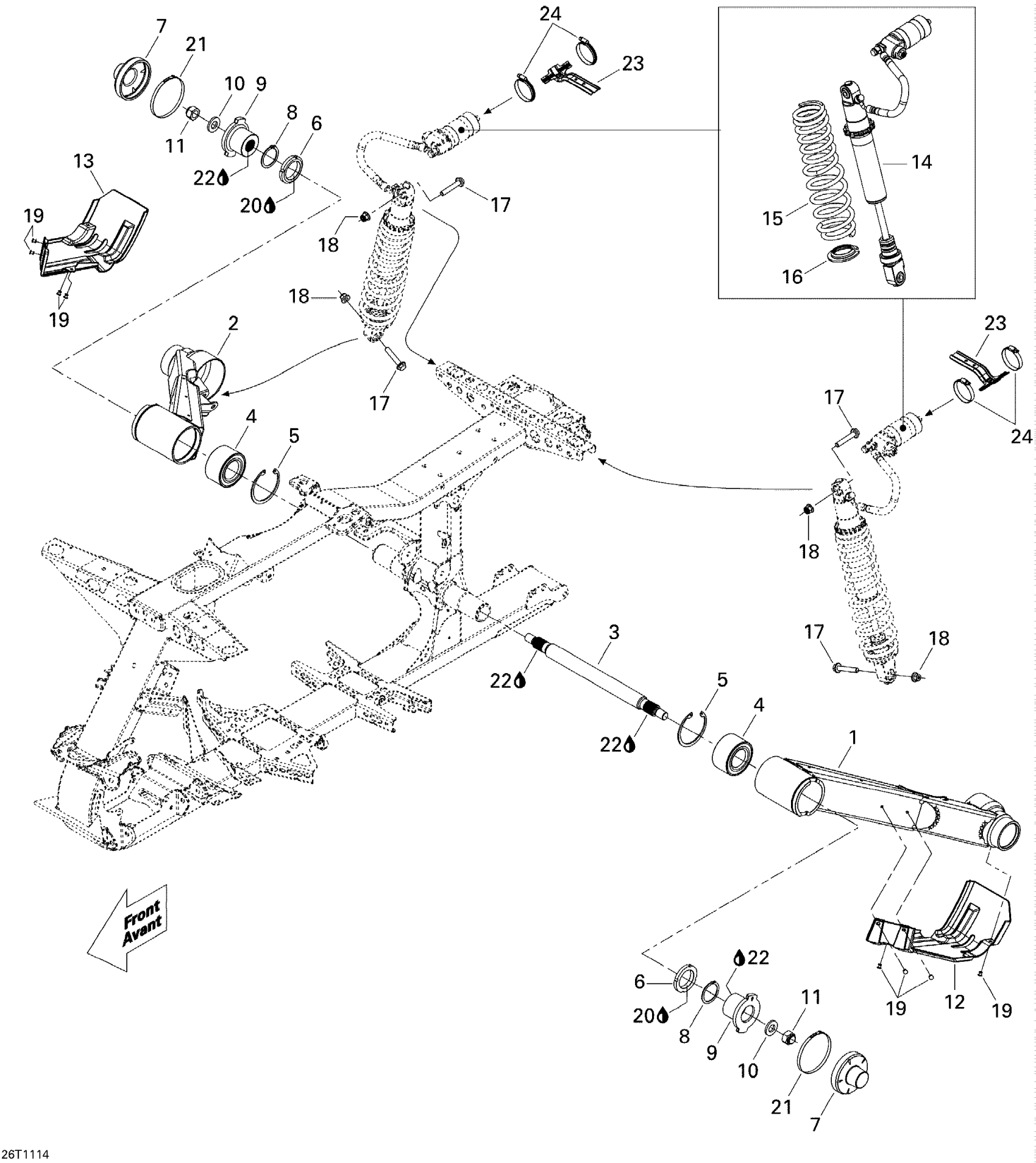

Can-Am Renegade 800R EFI, Xxc, 2011 08- Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001191

Unavailable

2

RH SWING ARM - Call your local BRP dealership

706001192

Unavailable

3

Sway Bar

706001078

Unavailable

4

Ball Bearing

293350037

Unavailable

5

Circlip

293370041

Unavailable

6

Nut

706000221

Unavailable

7

Cover

706000749

Unavailable

8

Circlip 45 mm

293370027

Unavailable

9

Lever

706000554

Unavailable

10

Washer

250200045

Unavailable

11

Elastic Stop Nut M18

232591414

Unavailable

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706000776

Unavailable

15

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000656

Unavailable

16

Spring Stopper

706000567

Unavailable

17

Hex. Flange Screw M10 X 55

207605544

Unavailable

18

Hex. Flange Elastic Nut M10

233201414

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

20

Loctite 271, 10 ml

293800005

Unavailable

21

Oetiker Clamp

293650162

Unavailable

22

Loctite 271, 10 ml

293800005

Unavailable

23

SUPPORT - Call your local BRP dealership

706000579

Unavailable

24

Norma Clamp

293650075

Unavailable
