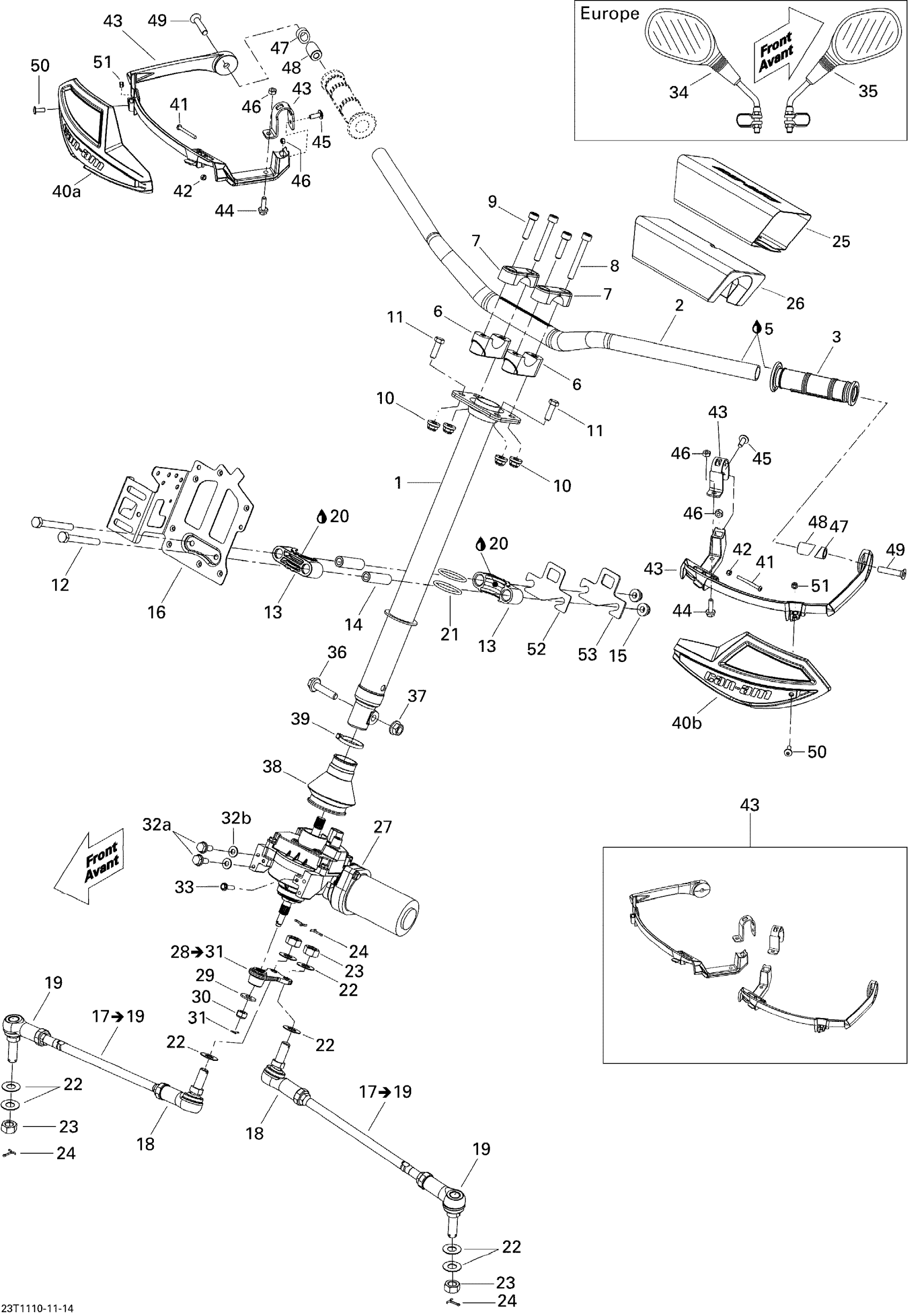

Can-Am Renegade 800R EFI, Xxc, 2011 07- Steering Diagram

#

Description
Price

1

Tube-Main

715900573

Unavailable

2

Aluminum Handle Bar

709400513

Unavailable

3

Handle Grip

709400493

Unavailable

5

Loctite 406, 7 Oz

293800100

Unavailable

6

Lower Mounting Clamp

709402750

Unavailable

7

Support

709400496

Unavailable

8

Socket Head Screw M8 X 60

205086060

Unavailable

9

Socket Screw M8 X 30

205083060

Unavailable

10

Hex. Elastic Flange Nut M8

233281416

Unavailable

11

Hex. Screw M8 X 30

207183060

Unavailable

12

Hex. Screw M8 X 70

207087044

Unavailable

13

Half Bushing

709400471

Unavailable

14

BUSHING - Call your local BRP dealership

709400072

Unavailable

15

Hex. Flange Elastic Nut M8

233281414

Unavailable

16

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

17

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

18

LH Ball Joint

709402303

Unavailable

19

Ball Joint, RH Threads

709400487

Unavailable

20

Synthetic Grease, 400 G

293550010

Unavailable

21

O-Ring

293300068

Unavailable

22

Hardened Washer

706200281

Unavailable

23

Nut M12

250100099

Unavailable

24

Cotter Pin

211400013

Unavailable

25

Cover B-190

709402414

Unavailable

26

Foam

709400422

Unavailable

27

POWER STEERING ASSIST - Call your local BRP dealership

709401001

Unavailable

28

LOWER MAIN TUBE KIT - Call your local BRP dealership | Includes 25 to 27

703500784

Unavailable

29

Hardened Washer

706200281

Unavailable

30

Hex. Flange Elastic Nut M12

250000047

Unavailable

31

Cotter Pin

211400013

Unavailable

32a

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

32b

Conical Spring Washer M8

234281474

Unavailable

33

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

Unavailable

34

LH Mirror | Europe

709400406

Unavailable

35

RH Mirror | Europe

709400523

Unavailable

36

Hex. Flange Screw M8 X 35

207683544

Unavailable

37

Hex. Flange Elastic Nut M8

233281414

Unavailable

38

Bellows

709400674

Unavailable

39

Tie-Rap 180 mm

414115200

Unavailable

40a

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

40b

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

41

Socket Head Screw M4 X 40 | X

205444086

Unavailable

42

Elastic Stop Nut M4

232541414

Unavailable

43

Air Deflector Support Kit | X

715001378

Unavailable

44

Hex. Flange Screw M6 X 20

207662044

Unavailable

45

Torx Screw M6 X 16

250000223

Unavailable

46

Hex. Elastic Stop Nut M6

232561600

Unavailable

47

Small Bracket | DS 650 X

709400161

Unavailable

48

Large Bracket | DS 650 X

709400162

Unavailable

49

Socket Head Screw | X

205384034

Unavailable

50

Torx Screw M5 X 14

250000742

Unavailable

51

Hex. Elastic Nut M5 | X

232551600

Unavailable

52

SHIM 2 MM - Call your local BRP dealership

709400734

Unavailable

53

SHIM 1 MM - Call your local BRP dealership

709400735

Unavailable
