Description

Price

1

Air Intake Manifold

420667581

$126.09

2

Gasket

420630642

$5.06

3

Torx Flange Screw M8 X 55

420641213

$7.01

4

CABLE CLAMP - Call your local BRP dealership

420251816

Unavailable

5

Pressure And Temperature Sensor

707000995

$81.31

6

Torx Flange Screw M6 X 16

420641048

$2.82

7

Intake Adaptor

420267480

$14.90

8

Clamp

420251480

$13.18

9

Throttle Body Ass'y | Includes 8 to 16

420685326

$659.67

10

Position Sensor

420866120

$89.52

11

Phillips Screw M4 X 16

208641660

$0.85

12

Flat Washer 4 mm, Stainless

234042600

$1.06

13

Idle Air Control Valve

420665941

$169.37

14

O-Ring

420631780

$4.15

15

Binding Head Screw M5 X 16

420440911

$13.18

16

Snap Ring

420845710

$3.88

17

Cover Kit

420281540

$19.37

18

Injection Valve Ass'Y | Includes 18 to 20

420874833

$150.72

19

O-Ring

420431890

$5.69

20

O-Ring

420631220

$13.18

21

O-Ring

420631296

$0.72

22

Fuel Rail

420874901

$22.36

23

Torx Flange Screw M6 X 16

420641048

$2.82

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

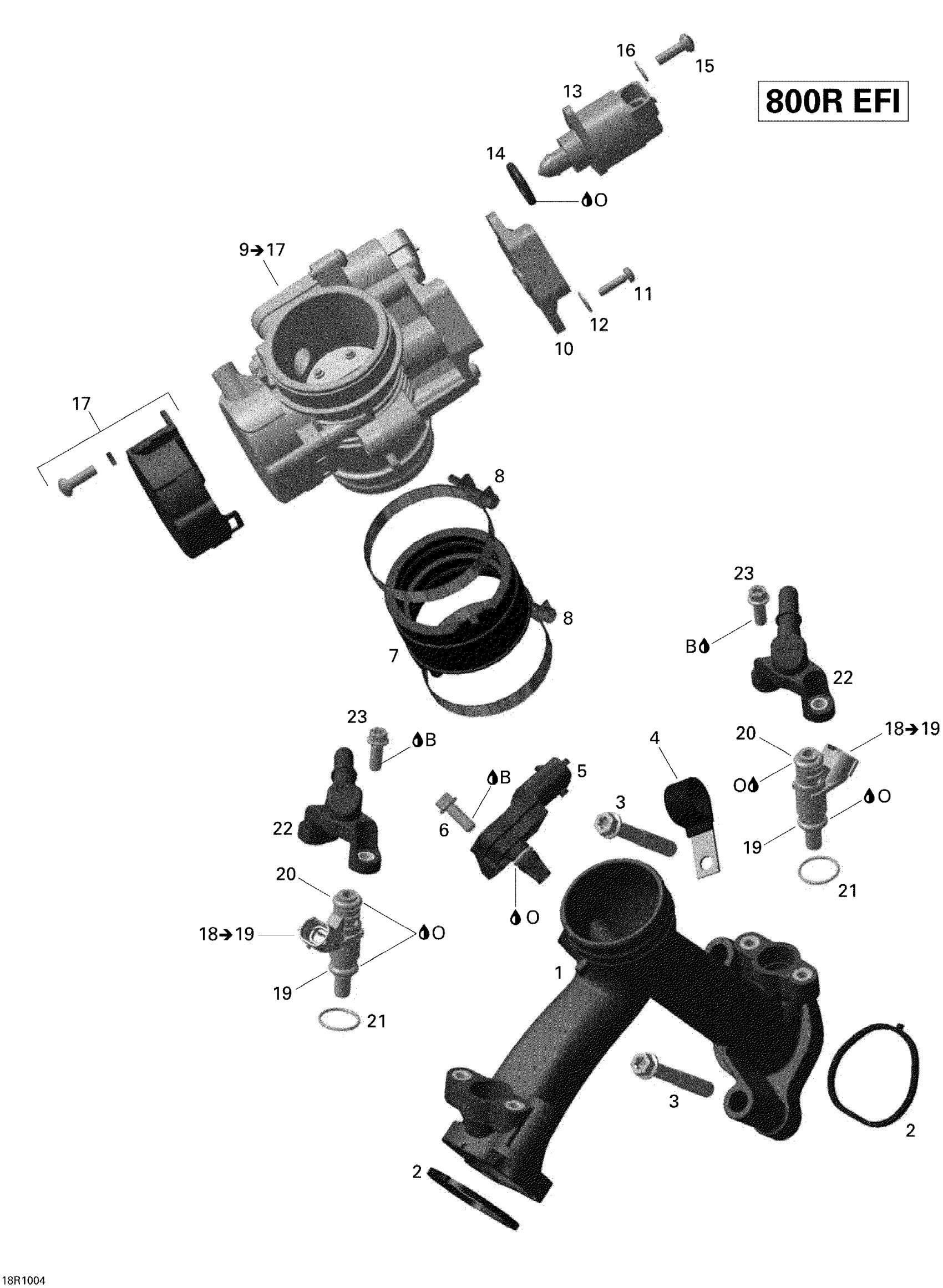

Can-Am Renegade 800R EFI Xxc, 2010 Air Intake Manifold And Throttle Body Diagram

Air Intake Manifold

Gasket

Torx Flange Screw M8 X 55

CABLE CLAMP - Call your local BRP dealership

Pressure And Temperature Sensor

Torx Flange Screw M6 X 16

Intake Adaptor

Clamp

Throttle Body Ass'y | Includes 8 to 16

Position Sensor

Phillips Screw M4 X 16

Flat Washer 4 mm, Stainless

Idle Air Control Valve

O-Ring

Binding Head Screw M5 X 16

Snap Ring

Cover Kit

Injection Valve Ass'Y | Includes 18 to 20

O-Ring

O-Ring

O-Ring

Fuel Rail

Torx Flange Screw M6 X 16

Loctite 243, 10 ml

Not Available As Spare Part - Friction Washer
