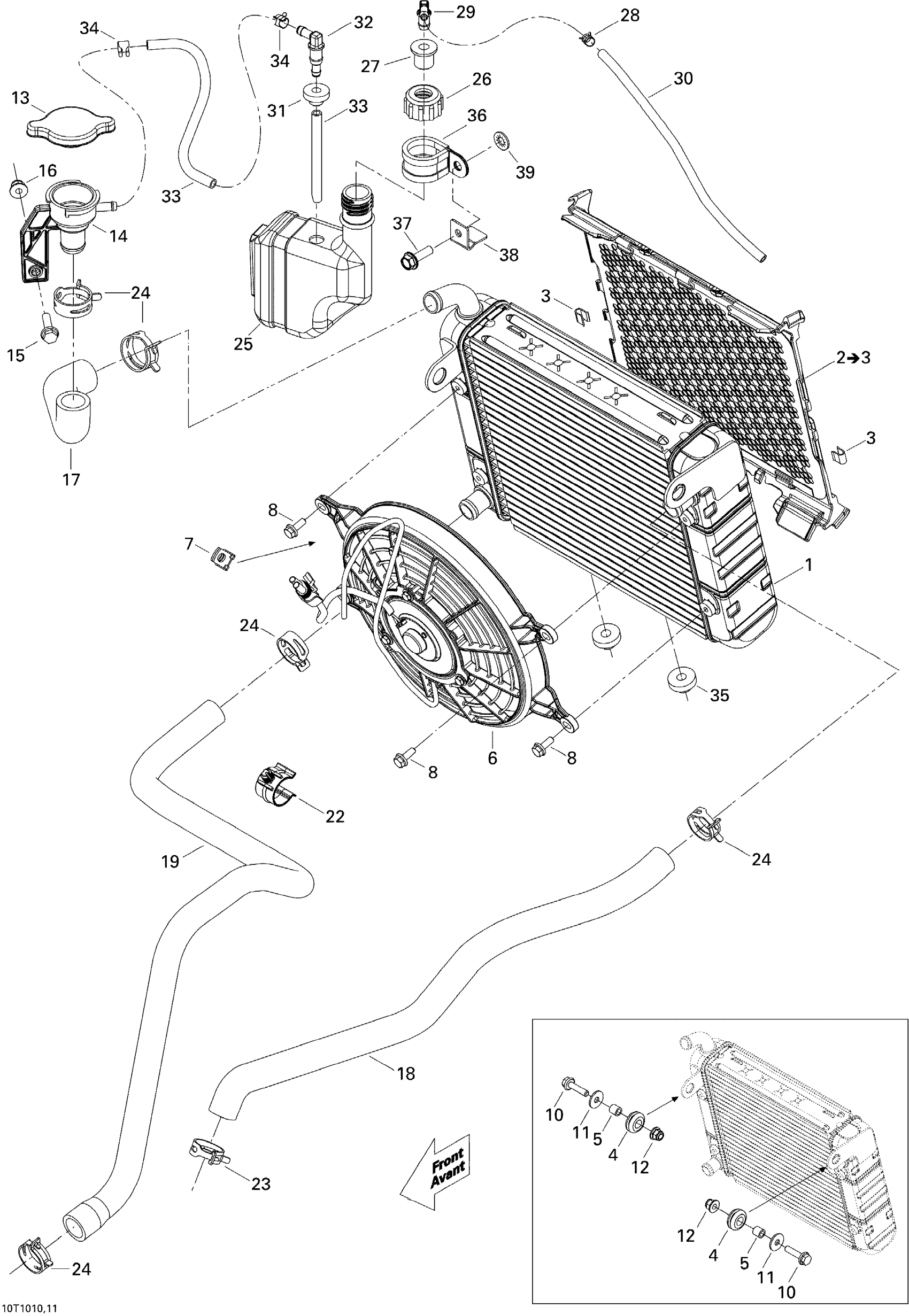

Can-Am Renegade 800R EFI Xxc, 2010 Cooling System Diagram

#

Description
Price

1

RADIATOR - Call your local BRP dealership

709200411

Unavailable

2

RADIATOR PROTECTOR - Call your local BRP dealership | Includes 34, 35

709200187

Unavailable

3

Clip

414479100

$1.86

4

Grommet

709000582

$4.38

5

Bushing

293900105

$6.26

6

Fan Ass'y

709200371

$207.66

7

Clamp

293650256

$4.36

8

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

10

Hex. Flange Screw M6 X 25

207662544

$0.53

11

Flat Washer

250200082

$0.35

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Radiator Pressure Cap

709200207

$18.82

14

Filler Neck

709200179

$17.66

15

Hex. Flange Screw M6 X 25

207662544

$0.53

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

FILLER NECK HOSE - Call your local BRP dealership

709200180

Unavailable

18

INLET HOSE - Call your local BRP dealership

709200182

Unavailable

19

OUTLET HOSE - Call your local BRP dealership

709200258

Unavailable

22

Retainer

275500590

$7.18

23

Norma Spring Clamp

293650108

$4.00

24

Norma Spring Clamp

293650109

$4.00

25

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

26

Cap

709200586

$11.06

27

Grommet

293830136

$8.29

28

Spring Clamp

414554800

$0.83

29

Male Connector

414580700

$3.38

30

Polyurethane Hose 10000Mm Long

219704410

$46.12

31

Grommet

709200285

$7.09

32

Elbow Male Connector

414580600

$3.50

33

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

34

Spring Clamp

414554800

$0.83

35

Grommet

709200285

$7.09

36

Hose Anchor

709200036

$10.83

37

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

38

BRACKET - Call your local BRP dealership

709200209

Unavailable

39

Push Nut

732610072

$1.72
