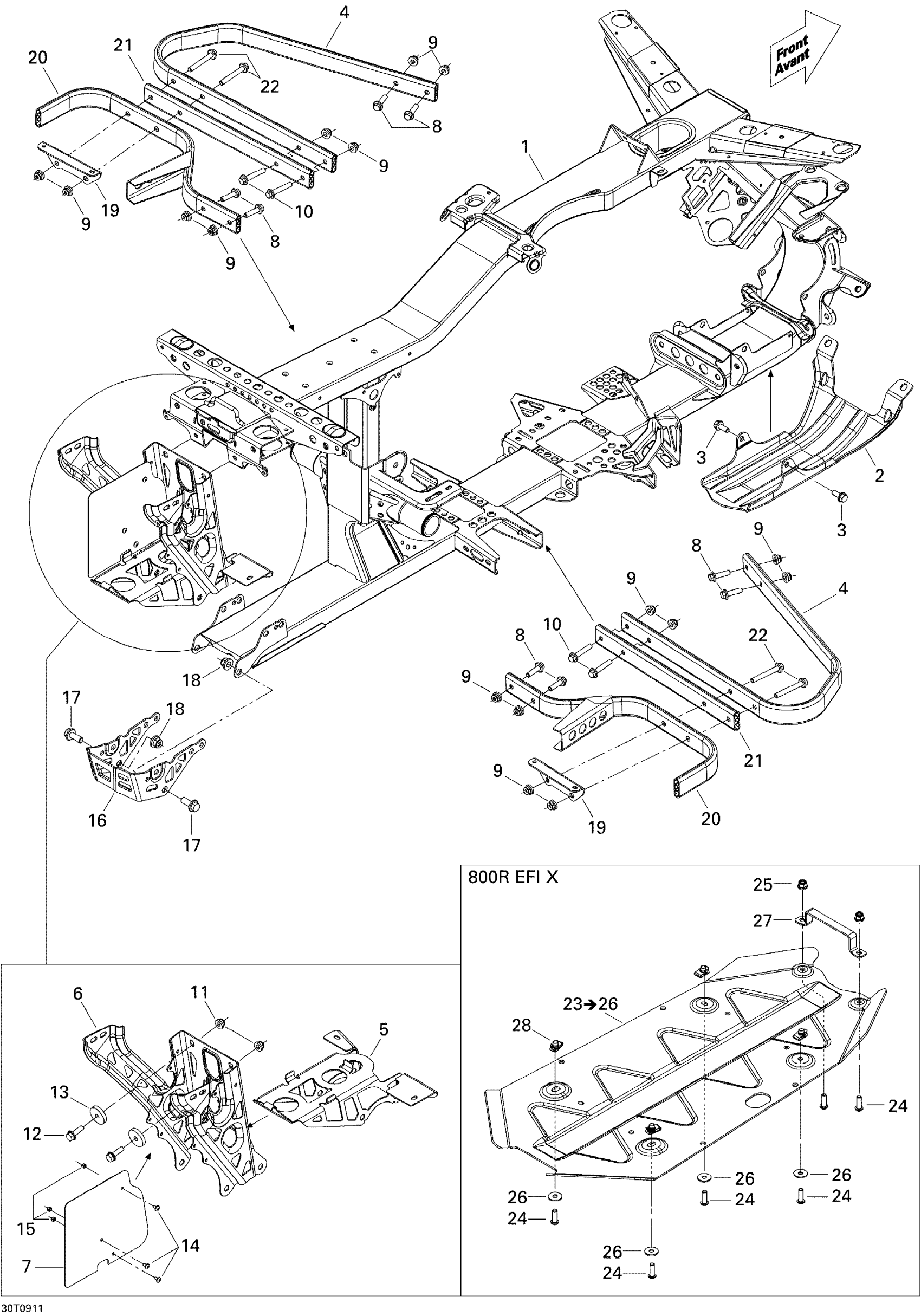

Can-Am Renegade 800R EFI X, 2009 Frame Diagram

#

Description
Price

1

BLACK FRAME - Call your local BRP dealership

705202416

Unavailable

2

PROTECTION PLATE - Call your local BRP dealership

705202399

Unavailable

3

Hex Screw Washer Head M8 X 20

207582054

$3.00

4

REINFORCEMENT - Call your local BRP dealership

705201877

Unavailable

5

Battery Support Base

705201942

$32.99

6

Rear Support, Black

705203842

Unavailable

7

HEAD SHIELD - Call your local BRP dealership

705201510

Unavailable

8

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

9

Hex. Flange Elastic Nut M8

233281414

$1.31

10

Hex. Flange Screw M8 X 45

207684544

$3.57

11

Hex. Elastic Flange Nut M8

233281416

$1.43

12

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

13

SPACER - Call your local BRP dealership

705202084

Unavailable

14

Torx Screw M4 X 8

250000127

$1.06

15

Elastic Stop Nut M4

232541484

$0.70

16

SUPPORT, BLACK - Call your local BRP dealership

705201504

Unavailable

17

Hex. Flange Screw M10 X 25

207602544

$1.52

18

Hex. Flange Elastic Nut M10

233201436

$2.00

19

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

20

REAR FOOTREST - Call your local BRP dealership

705202085

Unavailable

21

MID TUBE - Call your local BRP dealership

705201992

Unavailable

22

Hex. Flange Screw M8 x 60

207686044

$2.94

23

Ens Protec Cen.*Kit Cent. Skid

715000636

$117.88

24

Torx Screw M8 X 25, Scotch Grip

250000283

$1.85

25

Hex. Flange Elastic Nut M8

233281414

$1.31

26

Flat Washer 8 mm

234082410

$1.27

27

Ens Protec Cen.*Kit Cent. Skid

715000636

$117.88

28

Panel Nut M8

250100111

$3.88
