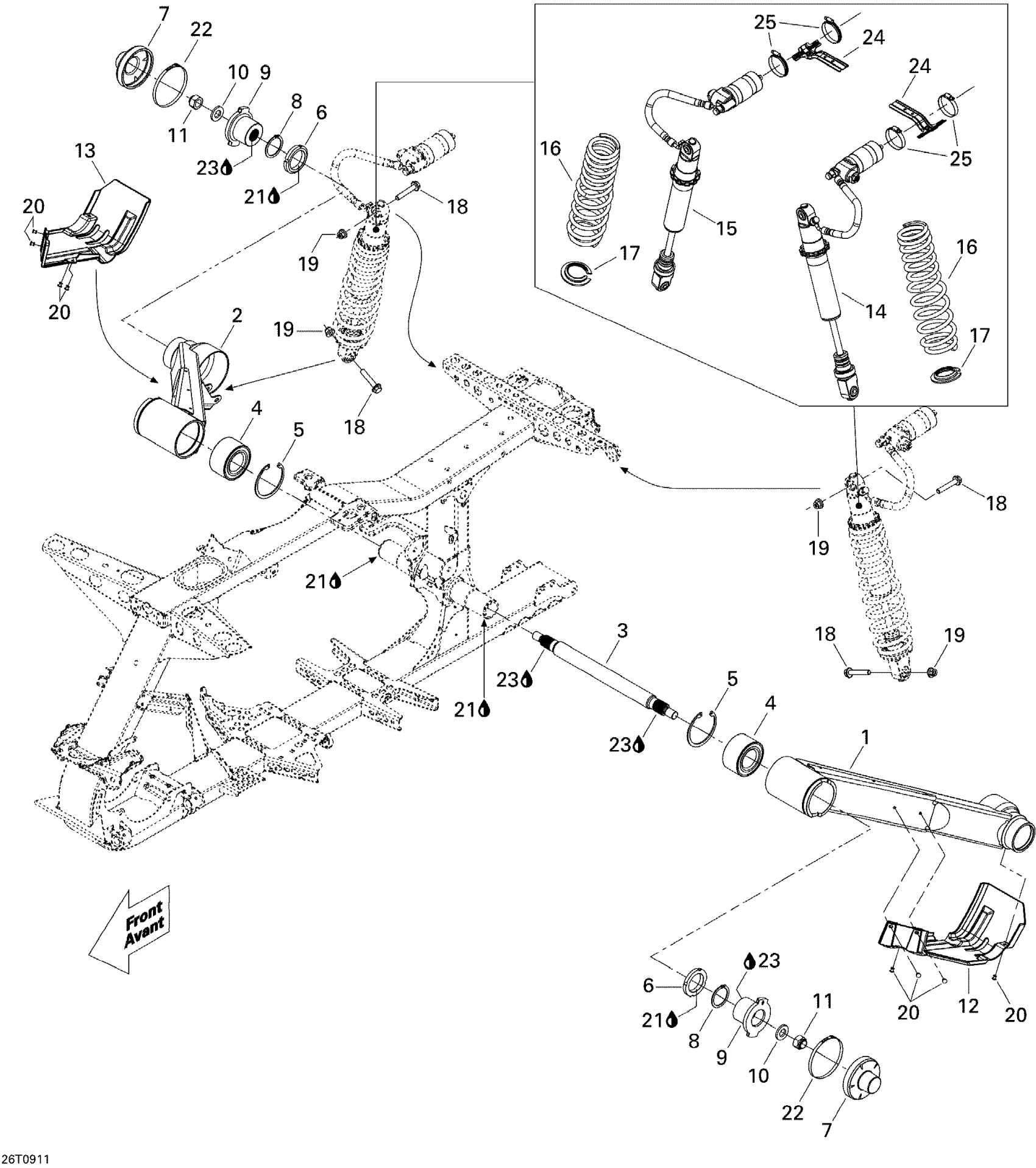

Can-Am Renegade 800R EFI X, 2009 Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001191

Unavailable

2

RH SWING ARM - Call your local BRP dealership

706001192

Unavailable

3

Sway Bar

706001078

$88.78

4

Ball Bearing

293350037

$124.60

5

Circlip

293370041

$9.26

6

Nut

706000221

$19.37

7

Cover

706000749

$14.76

8

Circlip 45 mm

293370027

$4.09

9

Lever

706000554

$64.90

10

Washer

250200045

$7.21

11

Elastic Stop Nut M18

232591414

$4.00

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706000776

Unavailable

15

REAR SHOCK - Call your local BRP dealership

706000776

Unavailable

16

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000656

Unavailable

17

Spring Stopper

706000567

$14.40

18

Hex. Flange Screw M10 X 55

207605544

$3.19

19

Hex. Flange Elastic Nut M10

233201414

$1.45

20

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

21

Loctite 271, 10 ml

293800005

$23.85

22

Oetiker Clamp

293650162

$8.06

23

Loctite 271, 10 ml

293800005

$23.85

24

SUPPORT - Call your local BRP dealership

706000579

Unavailable

25

Norma Clamp

293650075

$9.28
