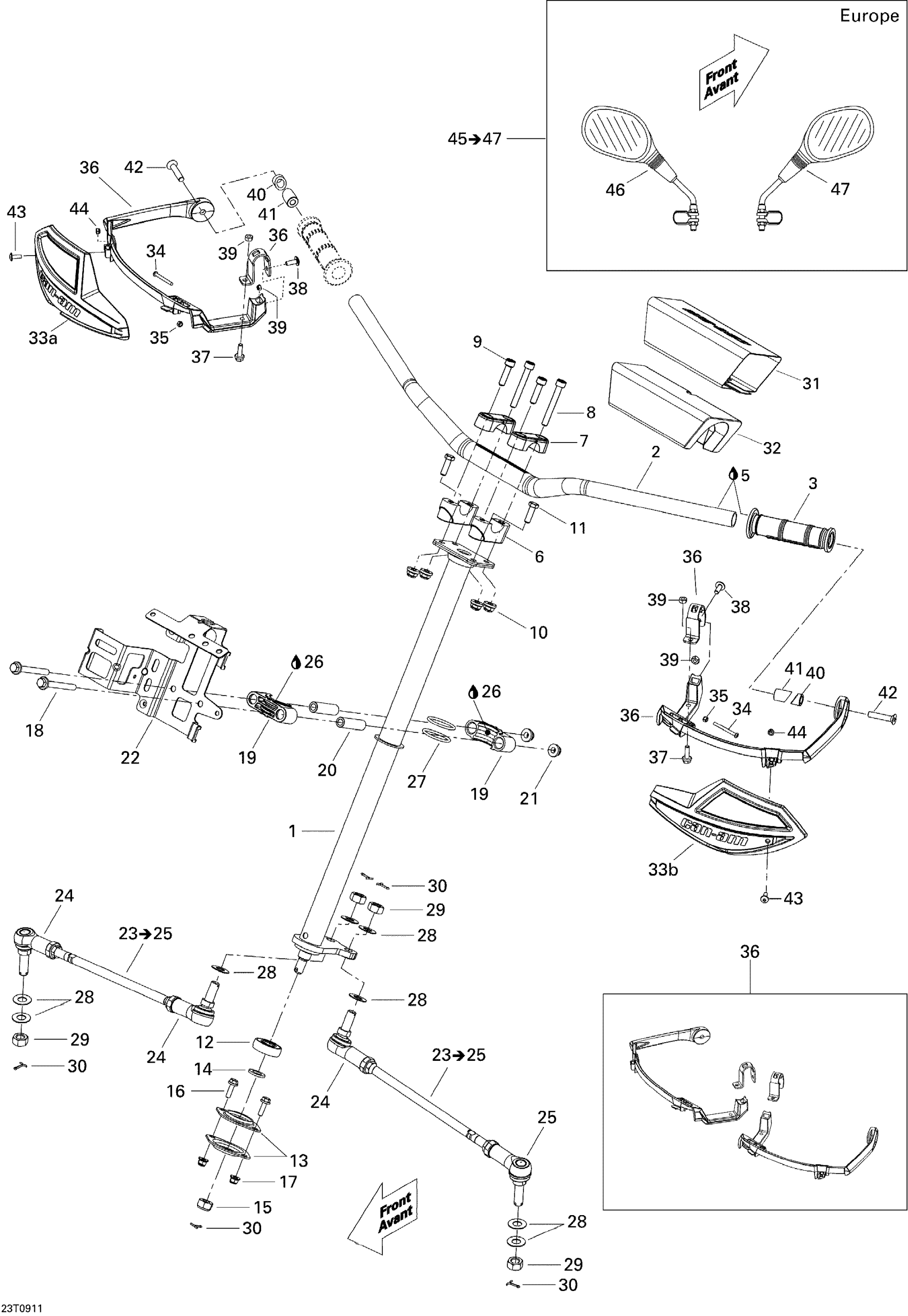

Can-Am Renegade 800R EFI X, 2009 Steering Diagram

#

Description
Price

1

Main Tube, Black

709400971

$162.66

2

Aluminum Handle Bar

709400513

$58.93

3

Handle Grip

709400493

$13.82

5

Loctite 406, 7 Oz

293800100

$36.99

6

Lower Mounting Clamp

709402750

$23.10

7

Support

709400496

$23.10

8

Socket Head Screw M8 X 60

205086060

$3.88

9

Socket Screw M8 X 30

205083060

$3.27

10

Hex. Elastic Flange Nut M8

233281416

$1.43

11

Hex. Screw M8 X 30

207183060

$1.49

12

Ball Bearing

709400439

$17.88

13

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

14

Flat Washer 12 mm

234021410

$0.66

15

Hex. Flange Elastic Nut M12

250000047

$1.79

16

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

Hex. Flange Screw M8 X 70

207687044

$7.01

19

Half Bushing

709400471

$13.22

20

BUSHING - Call your local BRP dealership

709400072

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

$1.31

22

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

23

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

24

LH Ball Joint

709402303

$34.30

25

Ball Joint, RH Threads

709400487

$49.22

26

Synthetic Grease, 400 G

293550010

Unavailable

27

O-Ring

293300068

$6.07

28

Hardened Washer

706200281

$2.69

29

Nut M12

250100099

$1.88

30

Cotter Pin

211400013

$0.31

31

Cover B-190

709402414

$27.58

32

Foam

709400422

$15.64

33a

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

33b

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

34

Socket Head Screw M4 X 40 | X

205444086

$1.63

35

Elastic Stop Nut M4

232541414

$0.55

36

Air Deflector Support Kit | X

715001378

$131.57

37

Hex. Flange Screw M6 X 20

207662044

$1.91

38

Torx Screw M6 X 16

250000223

$2.00

39

Hex. Elastic Stop Nut M6

232561600

$1.06

40

Small Bracket | DS 650 X

709400161

$17.88

41

Large Bracket | DS 650 X

709400162

$17.13

42

Socket Head Screw | X

205384034

$5.96

43

Torx Screw M5 X 14

250000742

$1.37

44

Hex. Elastic Nut M5 | X

232551600

$1.04

45

Mirror KIT | Europe, Includes 31 to 33

708200112

Unavailable

46

LH Mirror | Europe

709400406

$33.55

47

RH Mirror | Europe

709400523

$34.30
