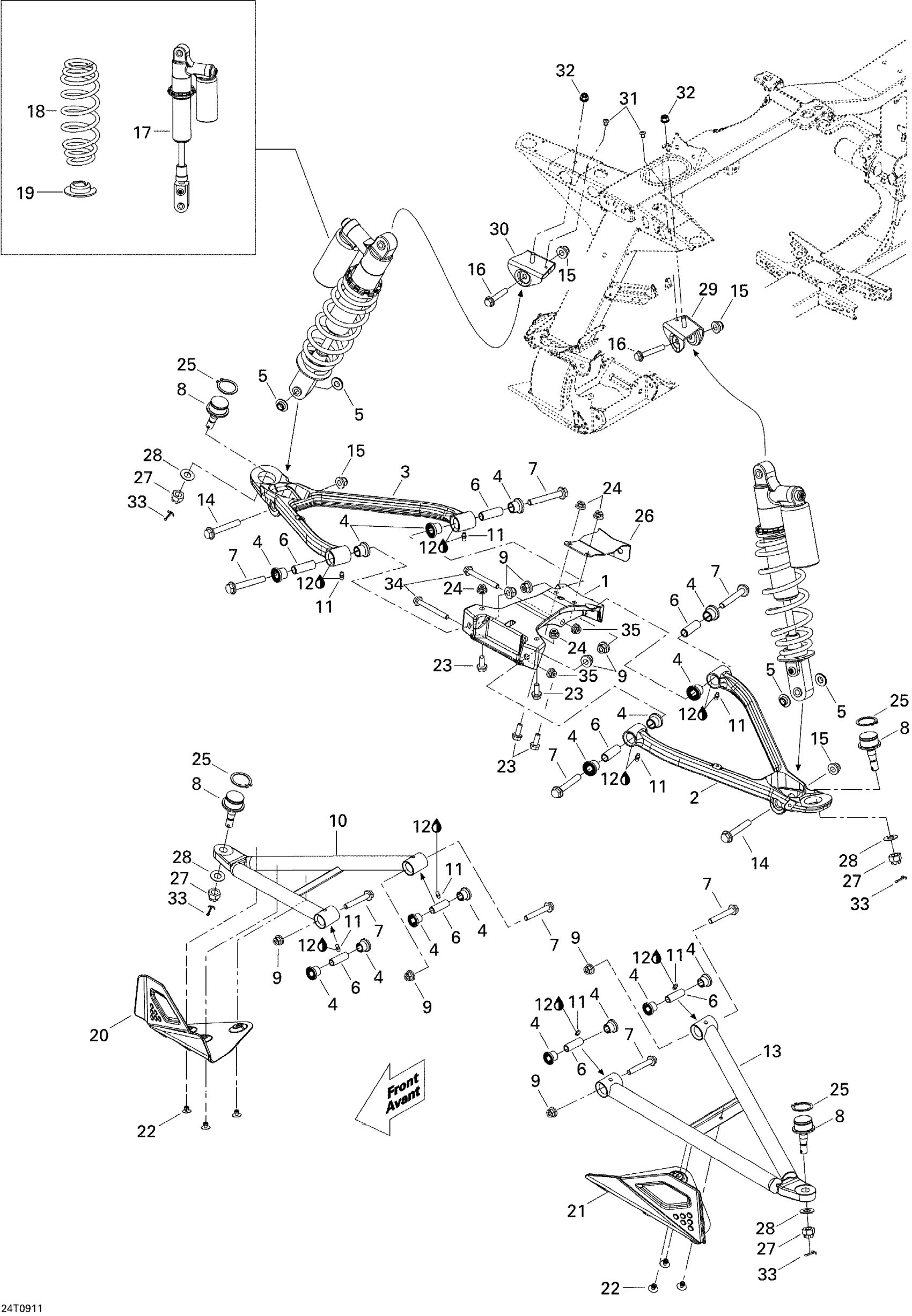

Can-Am Renegade 800R EFI X, 2009 Front Suspension Diagram

#

Description
Price

1

Upper Arm Bracket

706201360

$147.73

2

LH Upper Arm

706200763

Unavailable

3

RH Upper Arm

706200764

Unavailable

4

Bushing

706200181

$2.45

5

SPACER BUSHING - Call your local BRP dealership

706200677

Unavailable

6

Sleeve

706201587

$3.36

7

Hex. Flange Screw M10 X 70

207607046

$2.82

8

Ball Joint

706200653

$40.27

9

Hex. Flange Elastic Nut M10

233201436

$2.00

10

ARM_SUSPENSION RH ECOAT - Call your local BRP dealership

706201047

Unavailable

11

Grease Fitting

408200700

$3.21

12

Synthetic Grease, 400 G

293550010

Unavailable

13

ARM_SUSPENSION LH ECOAT - Call your local BRP dealership

706201045

Unavailable

14

Hex. Flange Screw M10 X 65

207606536

$4.15

15

Hex. Flange Elastic Nut M10

233201436

$2.00

16

Hex. Flange Screw M10 X 55

207605544

$3.19

17

FRONT SHOCK - Call your local BRP dealership

706200672

Unavailable

18

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706200827

Unavailable

19

Spring Stopper

706000567

$14.40

20

RH Protector

706201670

$16.39

21

LH Protector

706201669

$16.39

22

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

23

Hex. Flange Screw M8 X 20

207682044

$1.06

24

Hex. Flange Elastic Nut M8

233281414

$1.31

25

Circlip 32 mm

293370009

$1.33

26

UPPER ARM BRACKET - Call your local BRP dealership

706200405

Unavailable

27

Nut M12

250100099

$1.88

28

Hardened Washer

706200281

$2.69

29

LH UPPER ARM BRACKET - Call your local BRP dealership

706201039

Unavailable

30

RH UPPER BRACKET - Call your local BRP dealership

706200736

Unavailable

31

Pop Rivet 3/16"

390402300

$0.73

32

Hex. Elastic Flange Nut M8

233281416

$1.43

33

Cotter Pin

211400017

$0.28

34

Hex. Flange Screw M8 X 70

207687044

$7.01

35

Hex. Flange Elastic Nut M8

233281414

$1.31
